4.3.4 Switch Inputs

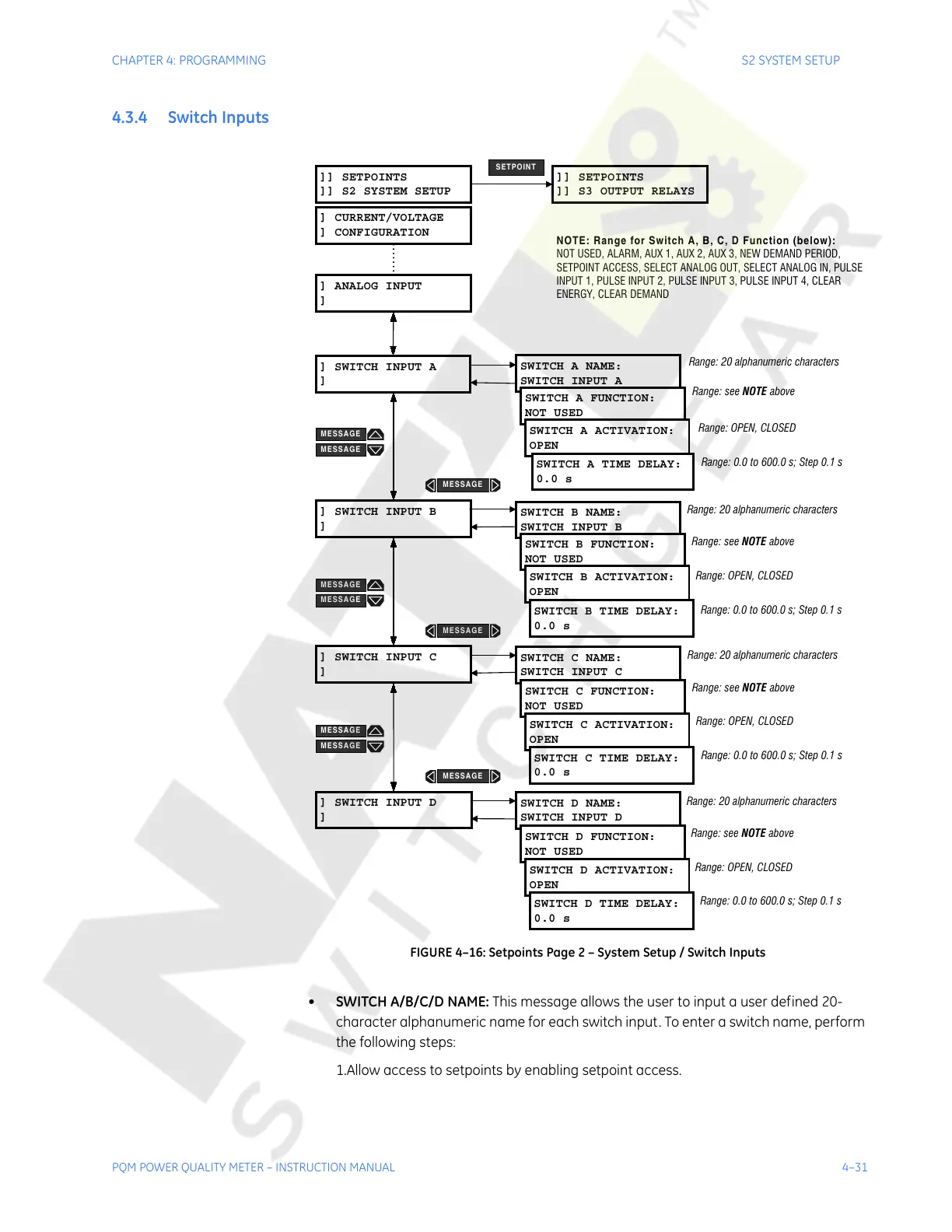

FIGURE 4–16: Setpoints Page 2 – System Setup / Switch Inputs
• SWITCH A/B/C/D NAME: This message allows the user to input a user defined 20-
character alphanumeric name for each switch input. To enter a switch name, perform
the following steps:
1.Allow access to setpoints by enabling setpoint access.
]] SETPOINTS
]] S2 SYSTEM SETUP
]] SETPOINTS
]] S3 OUTPUT RELAYS
SETPOINT
] CURRENT/VOLTAGE
] CONFIGURATION
] ANALOG INPUT
]
SWITCH A NAME:
SWITCH INPUT A
SWITCH A FUNCTION:
NOT USED
Range: 20 alphanumeric characters
SWITCH A ACTIVATION:
OPEN
SWITCH A TIME DELAY:
0.0 s
SWITCH B NAME:
SWITCH INPUT B
SWITCH B FUNCTION:
NOT USED
SWITCH B ACTIVATION:
OPEN
SWITCH B TIME DELAY:
0.0 s
SWITCH C NAME:
SWITCH INPUT C
SWITCH C FUNCTION:
NOT USED
SWITCH C ACTIVATION:
OPEN
SWITCH C TIME DELAY:
0.0 s
Range: 0.0 to 600.0 s; Step 0.1 s
Range: OPEN, CLOSED
Range: see
NOTE above
] SWITCH INPUT A
]
] SWITCH INPUT B
]
] SWITCH INPUT C
]
SWITCH D NAME:
SWITCH INPUT D
SWITCH D FUNCTION:
NOT USED
SWITCH D ACTIVATION:
OPEN
SWITCH D TIME DELAY:
0.0 s
] SWITCH INPUT D
]
NOTE: Range for Switch A, B, C, D Function (below):
NOT USED, ALARM, AUX 1, AUX 2, AUX 3, NEW DEMAND PERIOD,
SETPOINT ACCESS, SELECT ANALOG OUT, SELECT ANALOG IN, PULSE
INPUT 1, PULSE INPUT 2, PULSE INPUT 3, PULSE INPUT 4, CLEAR
ENERGY, CLEAR DEMAND
Range: 20 alphanumeric characters
Range: see
NOTE above
Range: OPEN, CLOSED
Range: 0.0 to 600.0 s; Step 0.1 s
Range: 20 alphanumeric characters
Range: see
NOTE above
Range: OPEN, CLOSED
Range: 0.0 to 600.0 s; Step 0.1 s
Range: 20 alphanumeric characters
Range: see
NOTE above
Range: OPEN, CLOSED
Range: 0.0 to 600.0 s; Step 0.1 s
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
