4–20 PQM POWER QUALITY METER – INSTRUCTION MANUAL
S1 PQM SETUP CHAPTER 4: PROGRAMMING
4.2.12 Product
Options

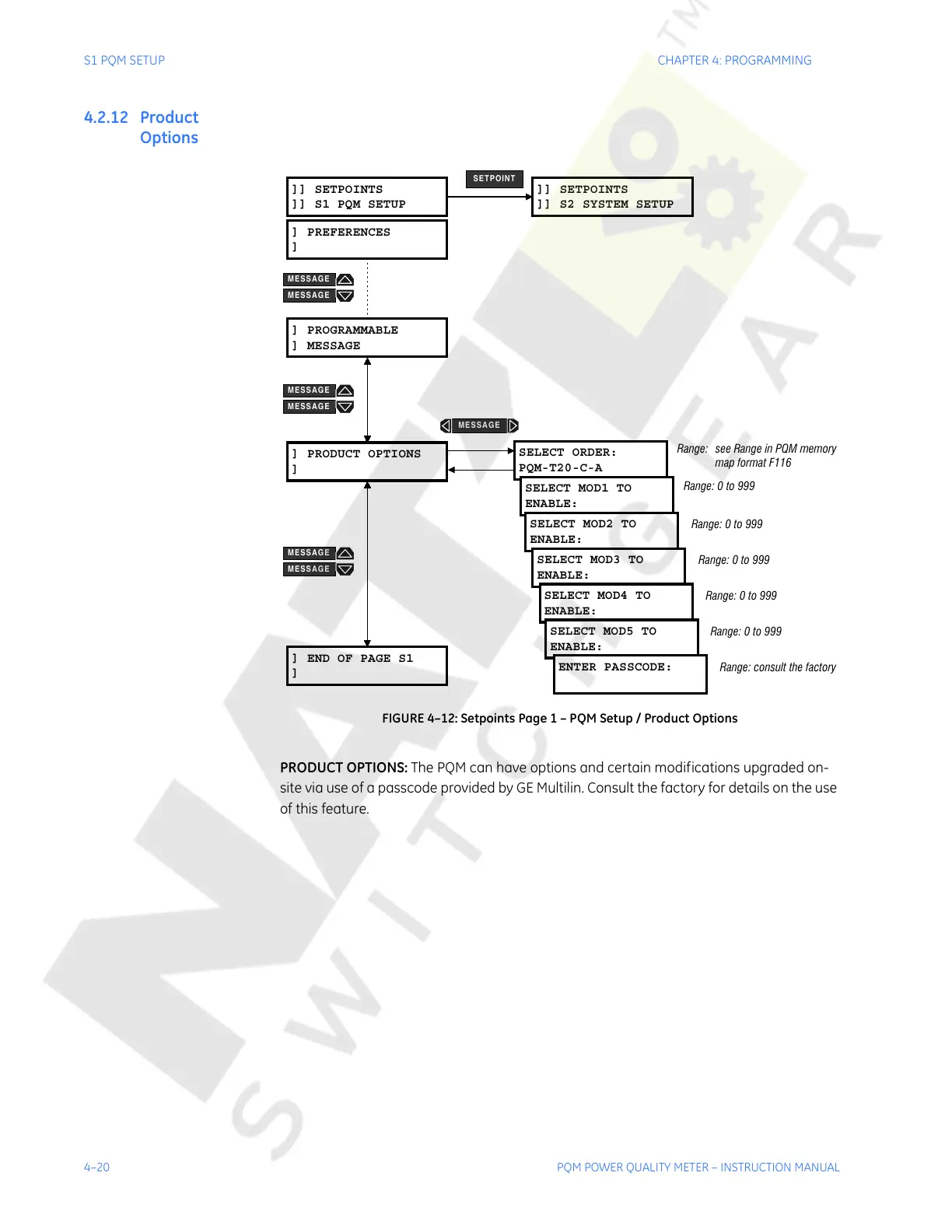

FIGURE 4–12: Setpoints Page 1 – PQM Setup / Product Options
PRODUCT OPTIONS: The PQM can have options and certain modifications upgraded on-
site via use of a passcode provided by GE Multilin. Consult the factory for details on the use
of this feature.
]] SETPOINTS
]] S1 PQM SETUP
SELECT ORDER:
PQM-T20-C-A
]] SETPOINTS
]] S2 SYSTEM SETUP
SETPOINT
] PREFERENCES
]
Range: see Range in PQM memory
map format F116
] PRODUCT OPTIONS
]
] PROGRAMMABLE
] MESSAGE
SELECT MOD1 TO
ENABLE:
SELECT MOD2 TO
ENABLE:
SELECT MOD3 TO
ENABLE:
SELECT MOD4 TO
ENABLE:
SELECT MOD5 TO
ENABLE:
ENTER PASSCODE:
] END OF PAGE S1
]
Range: 0 to 999
Range: consult the factory
Range: 0 to 999
Range: 0 to 999
Range: 0 to 999
Range: 0 to 999
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
