CHAPTER 4: PROGRAMMING S1 PQM SETUP
PQM POWER QUALITY METER – INSTRUCTION MANUAL 4–19

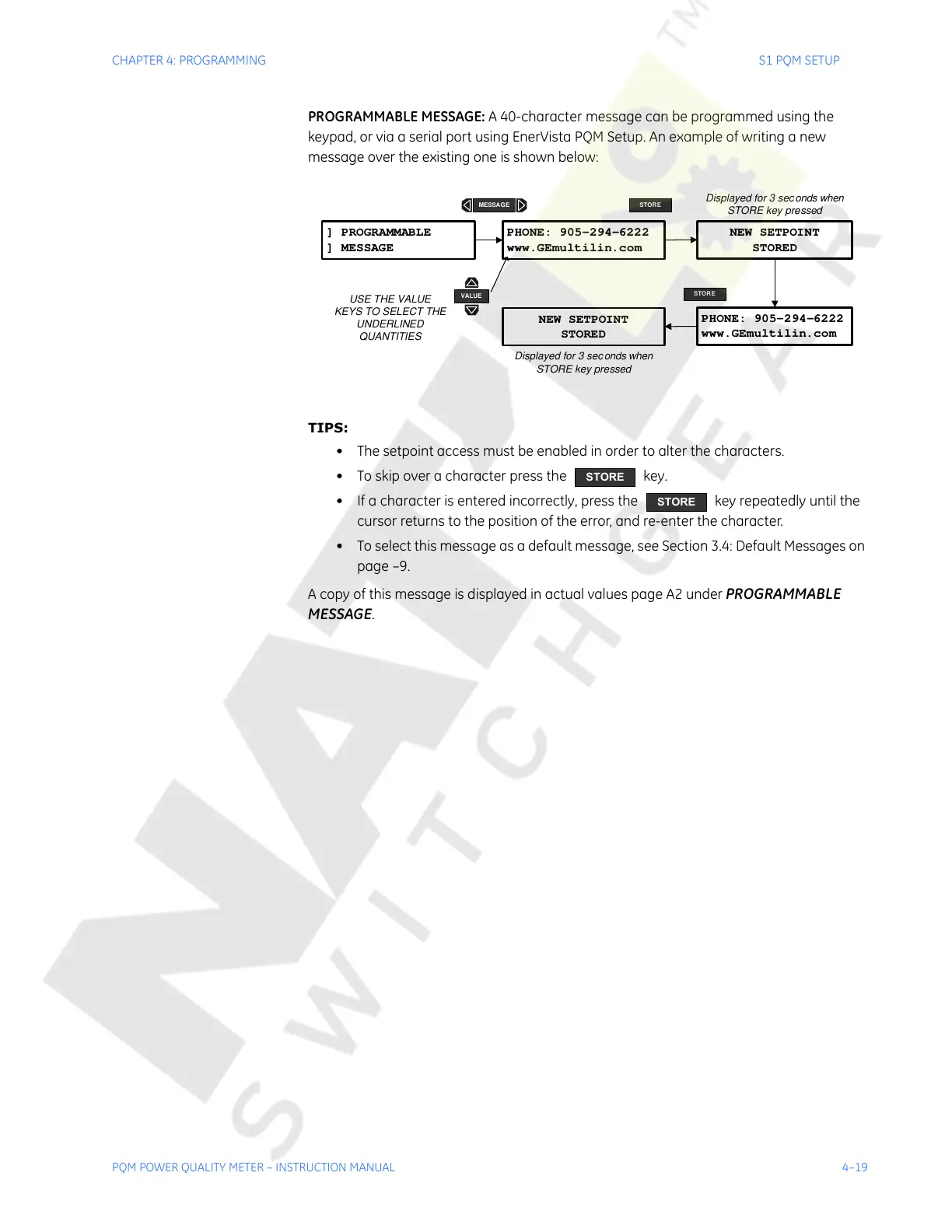

PROGRAMMABLE MESSAGE: A 40-character message can be programmed using the
keypad, or via a serial port using EnerVista PQM Setup. An example of writing a new
message over the existing one is shown below:
TIPS:
• The setpoint access must be enabled in order to alter the characters.
• To skip over a character press the key.
• If a character is entered incorrectly, press the key repeatedly until the
cursor returns to the position of the error, and re-enter the character.
• To select this message as a default message, see Section 3.4: Default Messages on
page –9.
A copy of this message is displayed in actual values page A2 under
PROGRAMMABLE
MESSAGE
.
] PROGRAMMABLE
] MESSAGE
PHONE: 905-294-6222
www.GEmultilin.com
NEW SETPOINT
STORED
MESSAGE
PHONE: 905-294-6222
www.GEmultilin.com
NEW SETPOINT
STORED
STORE
STORE
VALUE
USE THE VALUE
KEYS TO SELECT THE
UNDERLINED
QUANTITIES
Displayed for 3 seconds when
STORE key pressed
Displayed for 3 seconds when
STORE key pressed
STORE
STORE
