5–22 PQM POWER QUALITY METER – INSTRUCTION MANUAL

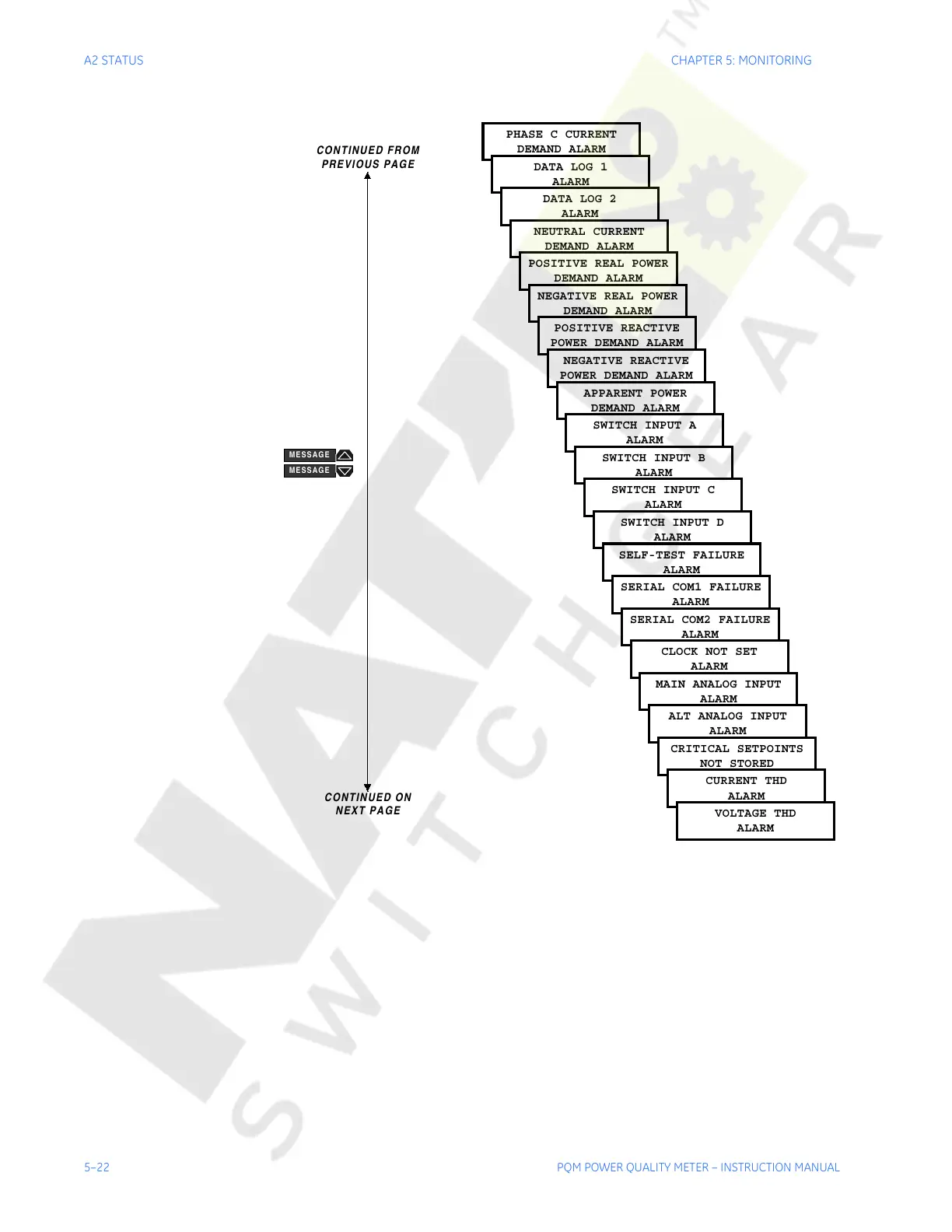

A2 STATUS CHAPTER 5: MONITORING

PHASE C CURRENT

DEMAND ALARM

DATA LOG 1

ALARM

DATA LOG 2

ALARM

NEUTRAL CURRENT

DEMAND ALARM

POSITIVE REAL POWER

DEMAND ALARM

NEGATIVE REAL POWER

DEMAND ALARM

POSITIVE REACTIVE

POWER DEMAND ALARM

NEGATIVE REACTIVE

POWER DEMAND ALARM

APPARENT POWER

DEMAND ALARM

SWITCH INPUT A

ALARM

SWITCH INPUT B

ALARM

SWITCH INPUT C

ALARM

SWITCH INPUT D

ALARM

SELF-TEST FAILURE

ALARM

SERIAL COM1 FAILURE

ALARM

SERIAL COM2 FAILURE

ALARM

CLOCK NOT SET

ALARM

MAIN ANALOG INPUT

ALARM

ALT ANALOG INPUT

ALARM

CRITICAL SETPOINTS

NOT STORED

CURRENT THD

ALARM

VOLTAGE THD

ALARM

CONTINUED FROM

CONTINUED ON

MESSAGE
