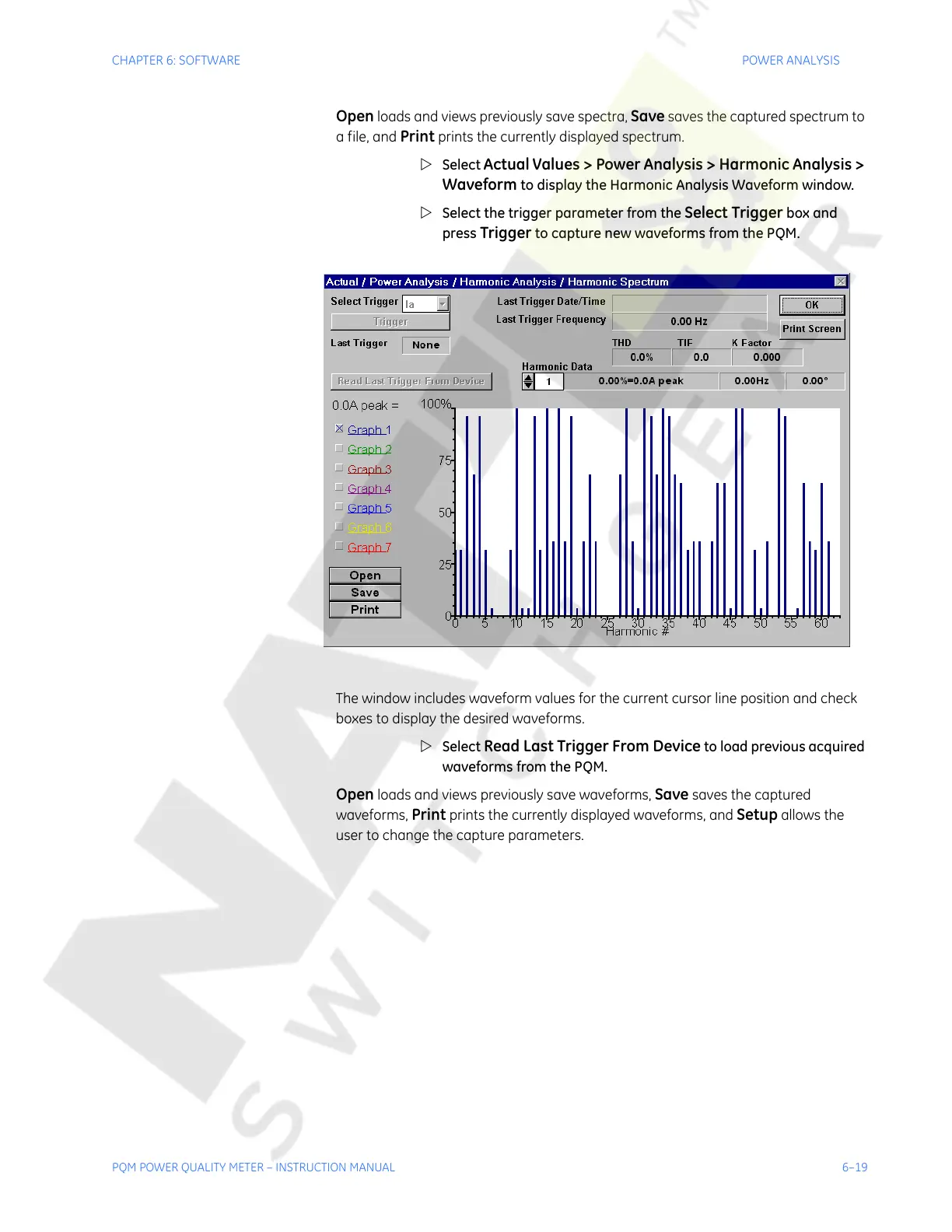

CHAPTER 6: SOFTWARE POWER ANALYSIS
PQM POWER QUALITY METER – INSTRUCTION MANUAL 6–19
Open loads and views previously save spectra, Save saves the captured spectrum to
a file, and
Print prints the currently displayed spectrum.
Z Select
Actual Values > Power Analysis > Harmonic Analysis >
Waveform
to display the Harmonic Analysis Waveform window.
Z Select the trigger parameter from the
Select Trigger box and
press
Trigger to capture new waveforms from the PQM.
The window includes waveform values for the current cursor line position and check
boxes to display the desired waveforms.
Z Select
Read Last Trigger From Device to load previous acquired
waveforms from the PQM.
Open loads and views previously save waveforms, Save saves the captured
waveforms,
Print prints the currently displayed waveforms, and Setup allows the
user to change the capture parameters.
