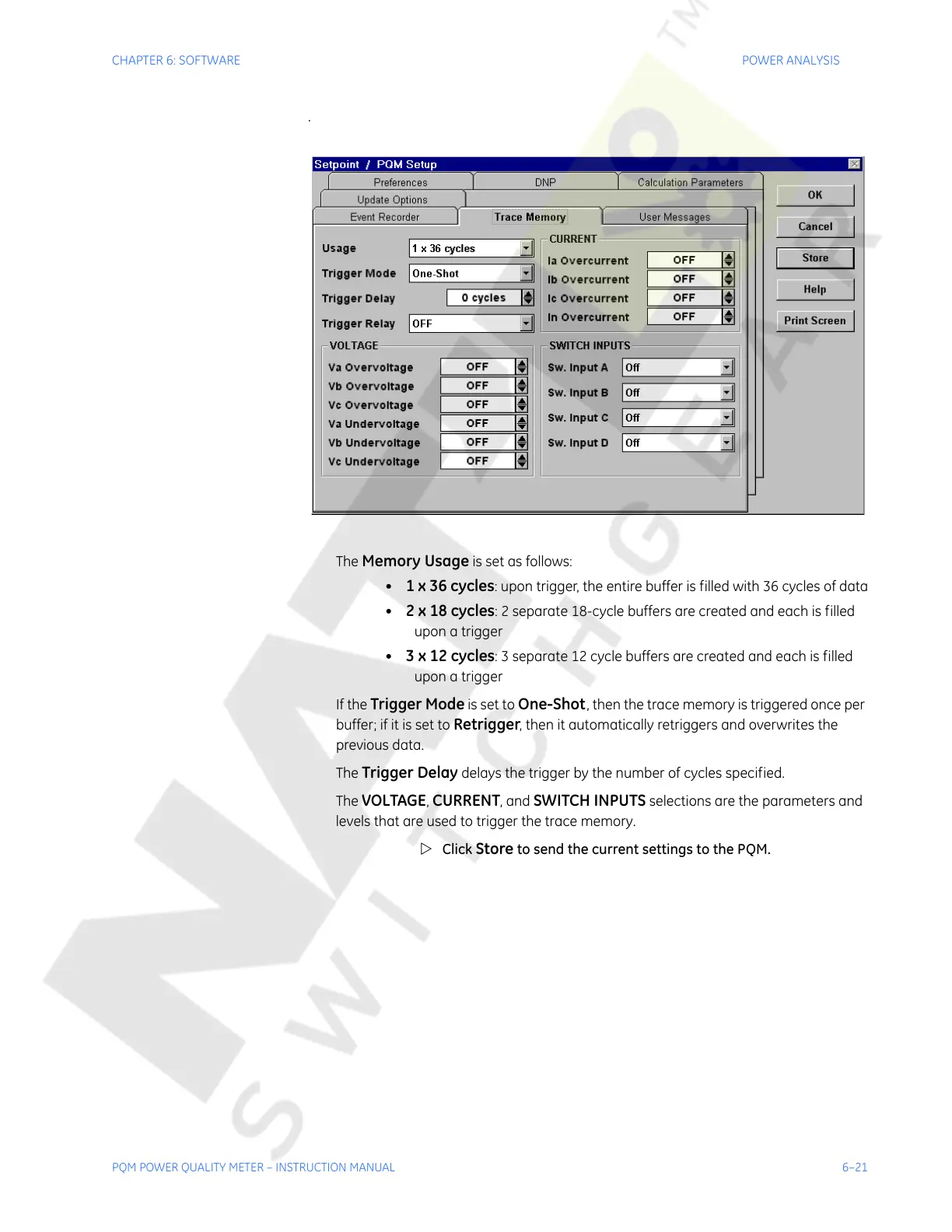

Memory Usage is set as follows:
•
1 x 36 cycles: upon trigger, the entire buffer is filled with 36 cycles of data
•
2 x 18 cycles: 2 separate 18-cycle buffers are created and each is filled
upon a trigger
•
3 x 12 cycles: 3 separate 12 cycle buffers are created and each is filled
upon a trigger
If the
Trigger Mode is set to One-Shot, then the trace memory is triggered once per
buffer; if it is set to
Retrigger, then it automatically retriggers and overwrites the
previous data.
The
Trigger Delay delays the trigger by the number of cycles specified.
The
VOLTAGE, CURRENT, and SWITCH INPUTS selections are the parameters and
levels that are used to trigger the trace memory.
Z Click
Store to send the current settings to the PQM.
