1–10 PQM POWER QUALITY METER – INSTRUCTION MANUAL
STANDARD FEATURES CHAPTER 1: OVERVIEW
The power analysis option also provides a Trace Memory feature. This feature can be used
to record specified parameters based on the user defined triggers.

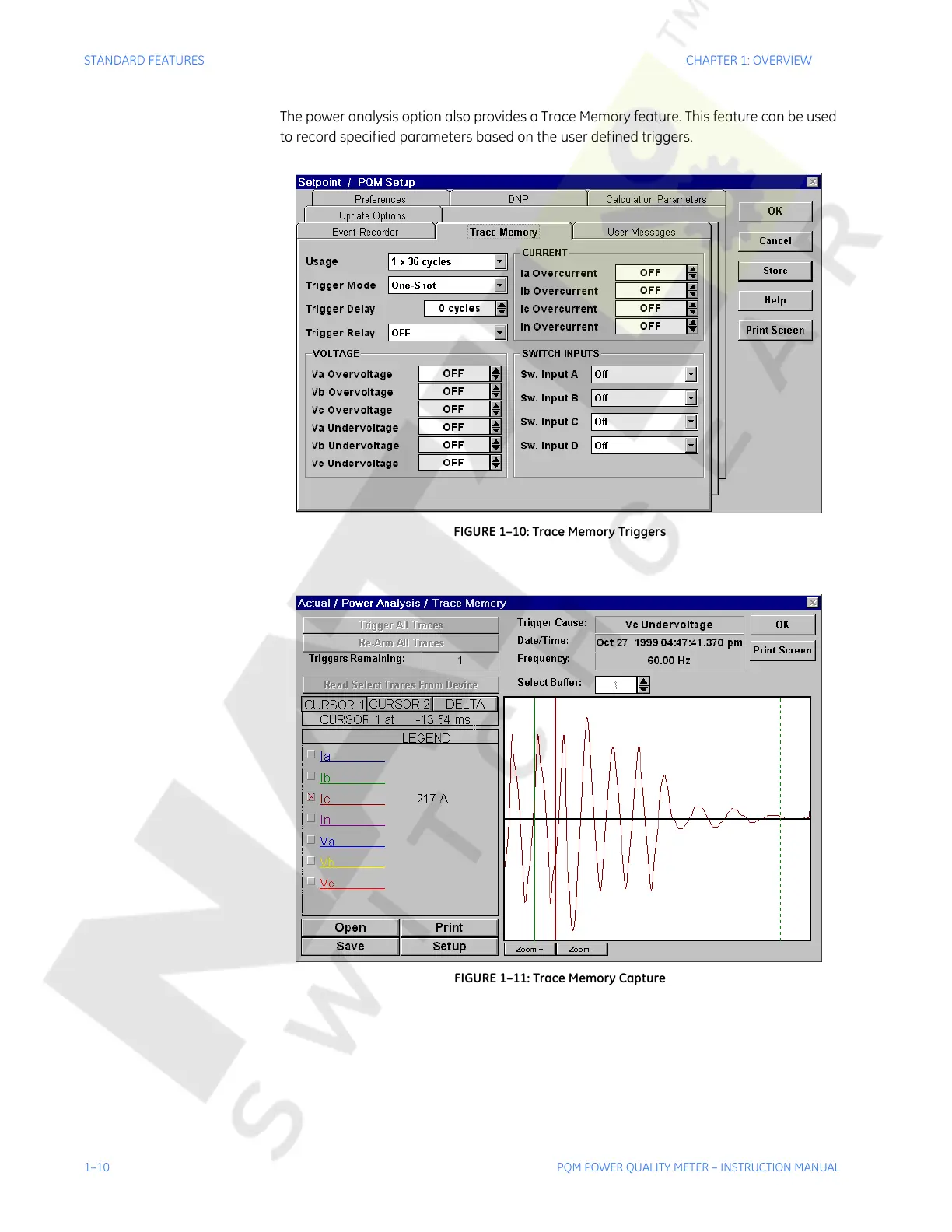

FIGURE 1–10: Trace Memory Triggers
FIGURE 1–11: Trace Memory Capture
