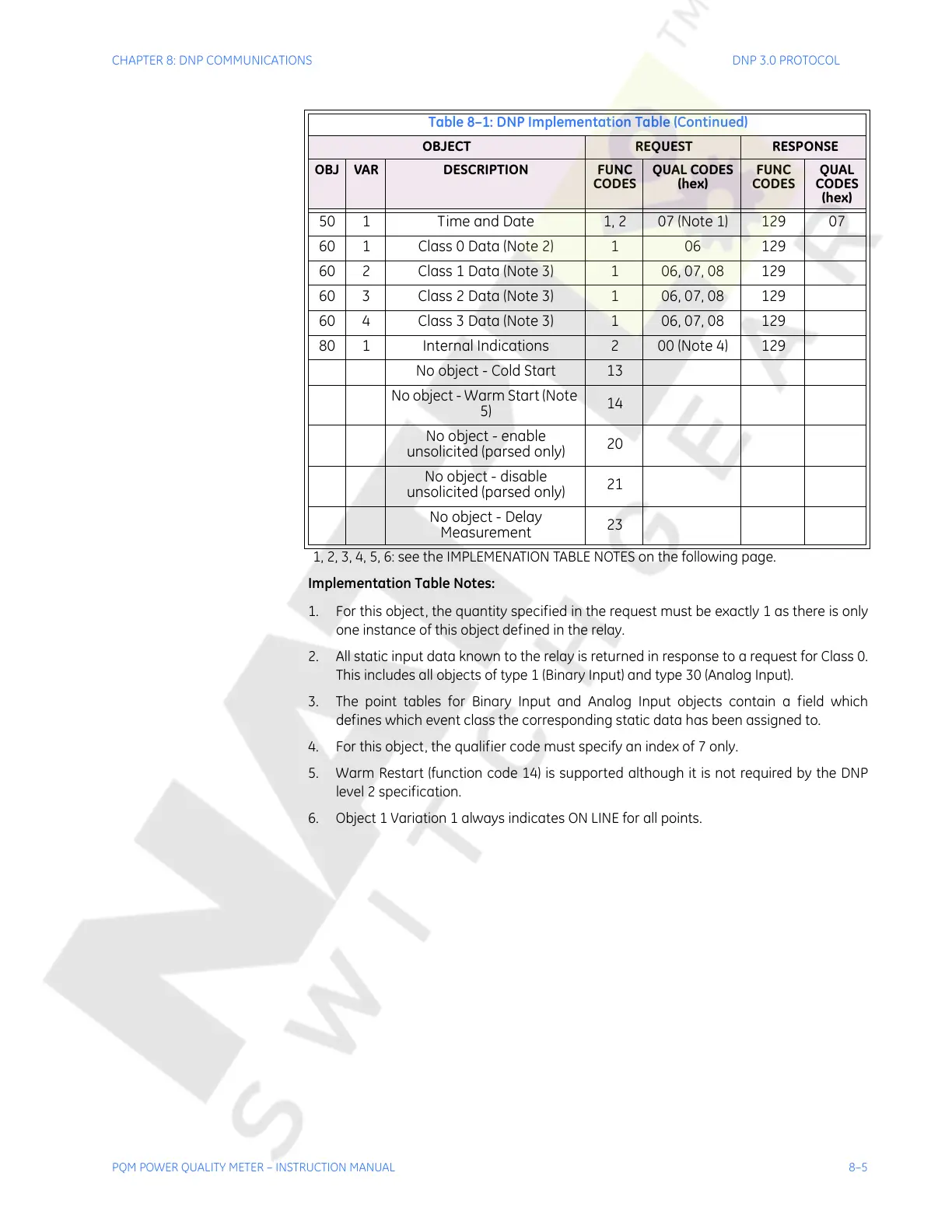

CHAPTER 8: DNP COMMUNICATIONS DNP 3.0 PROTOCOL
PQM POWER QUALITY METER – INSTRUCTION MANUAL 8–5
Implementation Table Notes:
1. For this object, the quantity specified in the request must be exactly 1 as there is only
one instance of this object defined in the relay.
2. All static input data known to the relay is returned in response to a request for Class 0.
This includes all objects of type 1 (Binary Input) and type 30 (Analog Input).
3. The point tables for Binary Input and Analog Input objects contain a field which
defines which event class the corresponding static data has been assigned to.
4. For this object, the qualifier code must specify an index of 7 only.
5. Warm Restart (function code 14) is supported although it is not required by the DNP
level 2 specification.
6. Object 1 Variation 1 always indicates ON LINE for all points.
50 1 Time and Date 1, 2 07 (Note 1) 129 07
60 1 Class 0 Data (Note 2) 1 06 129
60 2 Class 1 Data (Note 3) 1 06, 07, 08 129
60 3 Class 2 Data (Note 3) 1 06, 07, 08 129
60 4 Class 3 Data (Note 3) 1 06, 07, 08 129
80 1 Internal Indications 2 00 (Note 4) 129
No object - Cold Start 13
No object - Warm Start (Note
5)
14
No object - enable
unsolicited (parsed only)
20
No object - disable
unsolicited (parsed only)
21
No object - Delay
Measurement
23
Table 8–1: DNP Implementation Table (Continued)
OBJECT REQUEST RESPONSE
OBJ VAR DESCRIPTION FUNC
CODES
QUAL CODES
(hex)
FUNC
CODES
QUAL
CODES
(hex)
1, 2, 3, 4, 5, 6: see the IMPLEMENATION TABLE NOTES on the following page.
Courtesy of NationalSwitchgear.com
