8–8 PQM POWER QUALITY METER – INSTRUCTION MANUAL
DNP 3.0 PROTOCOL CHAPTER 8: DNP COMMUNICATIONS
38 Alarm active: undervoltage Class 1
39 Alarm active: overvoltage Class 1
40 Alarm active: current unbalance Class 1
41 Alarm active: voltage unbalance Class 1
42 Alarm active: voltage phase reversal Class 1
43 Alarm active: power factor lead alarm 1 Class 1
44 Alarm active: power factor lead alarm 2 Class 1
45 Alarm active: power factor lag alarm 1 Class 1
46 Alarm active: power factor lag alarm 2 Class 1
47 Alarm active: positive real power Class 1
48 Alarm active: negative real power Class 1
49 Alarm active: positive reactive power Class 1
50 Alarm active: negative reactive power Class 1
51 Alarm active: underfrequency Class 1
52 Alarm active: overfrequency Class 1
53 Alarm active: real power demand Class 1
54 Alarm active: reactive power demand Class 1
55 Alarm active: apparent power demand Class 1
56 Alarm active: phase A current demand Class 1
57 Alarm active: phase B current demand Class 1
58 Alarm active: phase C current demand Class 1
59 Alarm active: Neutral demand Class 1
60 Alarm active: switch A Class 1
61 Alarm active: switch B Class 1
62 Alarm active: switch C Class 1
63 Alarm active: switch D Class 1
64 Alarm active: internal fault Class 1
65 Alarm active: serial COM1 failure Class 1
66 Alarm active: serial COM2 failure Class 1
67 Alarm active: clock not set Class 1
68 Alarm active: parameters not set Class 1
69 Alarm active: Pulse input 1 Class 1
70 Alarm active: current THD Class 1
71 Alarm active: voltage THD Class 1
72 Alarm active: analog input main Class 1
73 Alarm active: analog input alt Class 1
74 Alarm active: data log 1 Class 1
75 Alarm active: data log 2 Class 1
76 Alarm active: Negative real demand Class 1

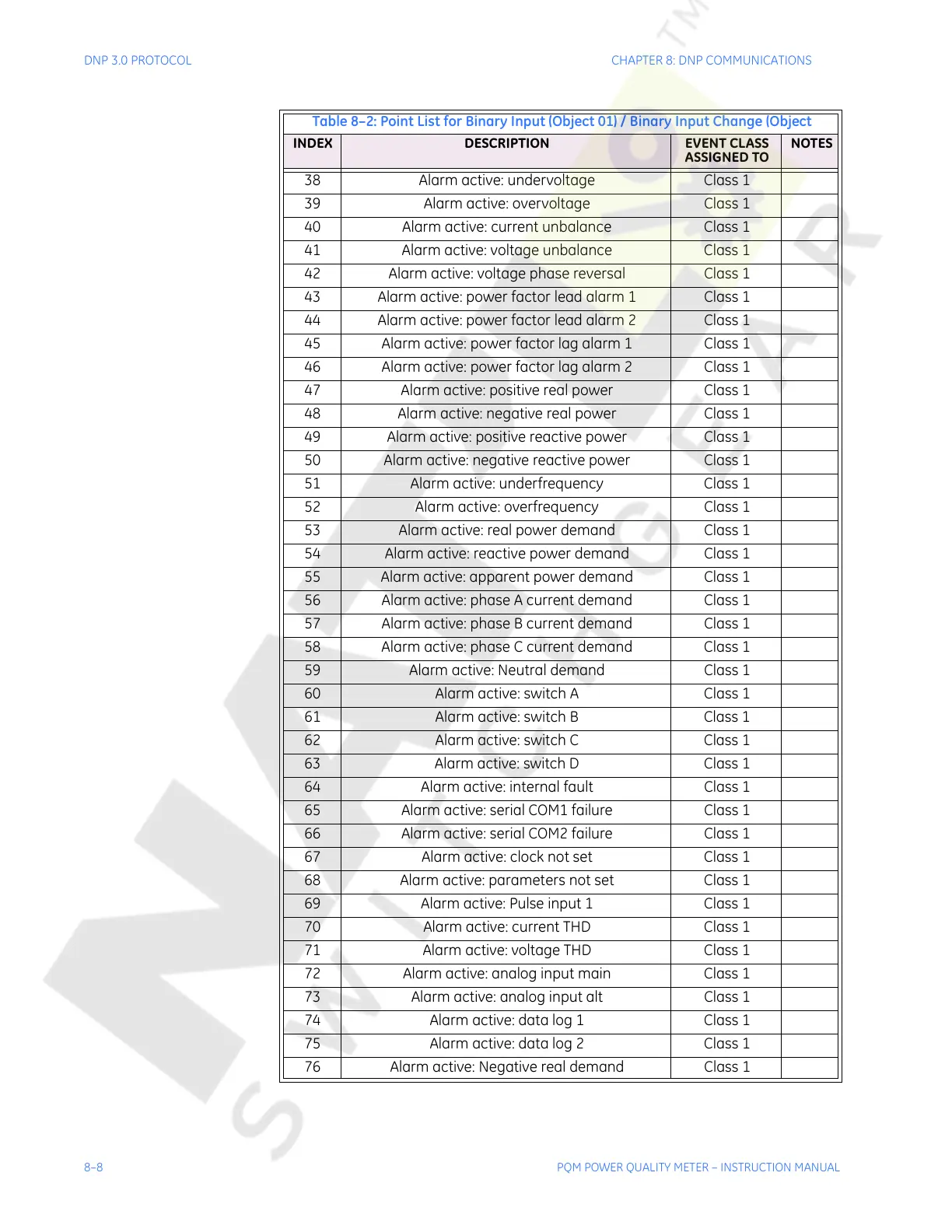

Table 8–2: Point List for Binary Input (Object 01) / Binary Input Change (Object
INDEX DESCRIPTION EVENT CLASS
ASSIGNED TO
NOTES
