CHAPTER 2: INSTALLATION ELECTRICAL

PQM POWER QUALITY METER – INSTRUCTION MANUAL 2–7

This wiring diagram shows the typical 4-wire wye connection which will cover any voltage

range. Select the

S2 SYSTEM SETUP \ CURRENT/VOLTAGE CONFIGURATION \ VT

WIRING:

4 WIRE WYE (3 VTs) setpoint.

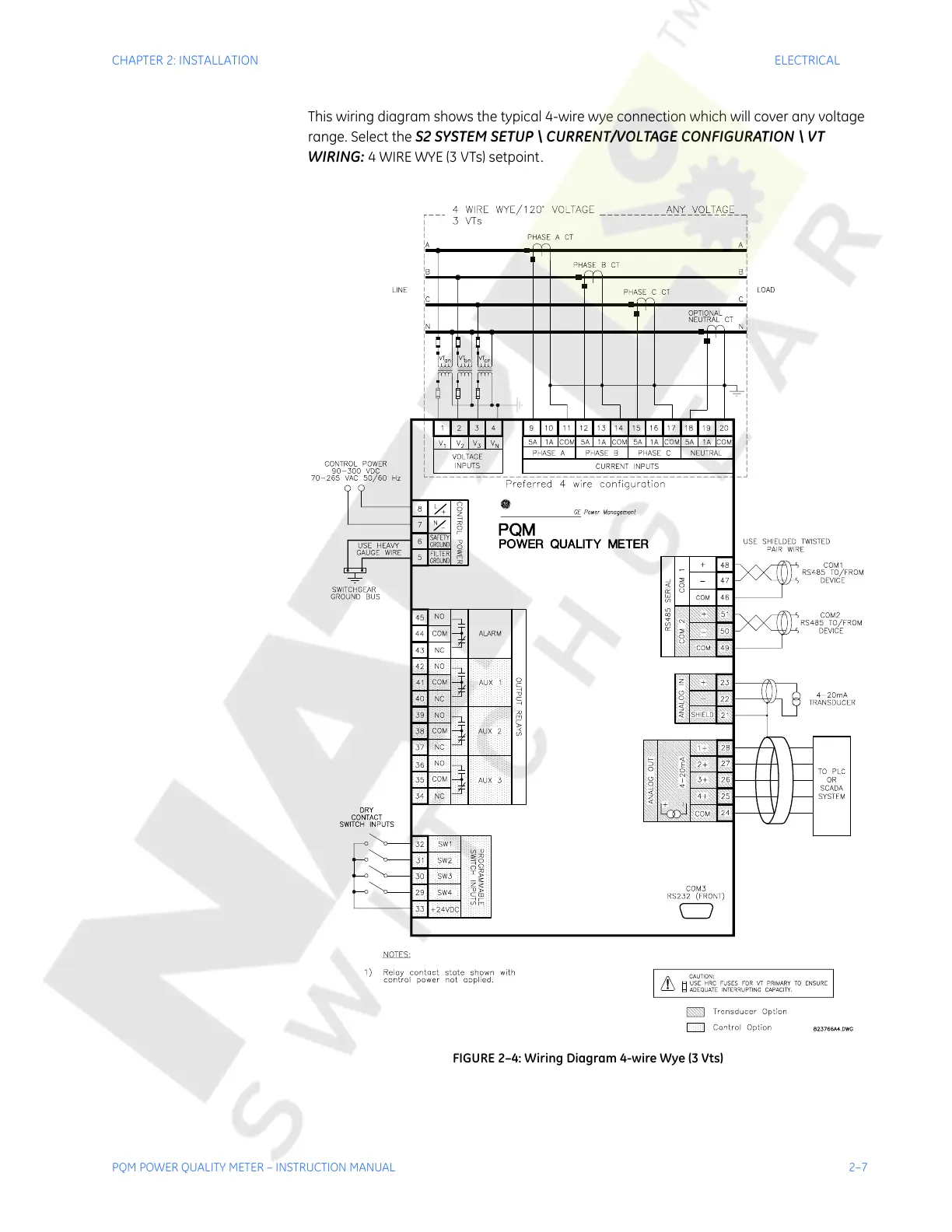

FIGURE 2–4: Wiring Diagram 4-wire Wye (3 Vts)

Courtesy of NationalSwitchgear.com
