CHAPTER 2: INSTALLATION ELECTRICAL
PQM POWER QUALITY METER – INSTRUCTION MANUAL 2–9
.

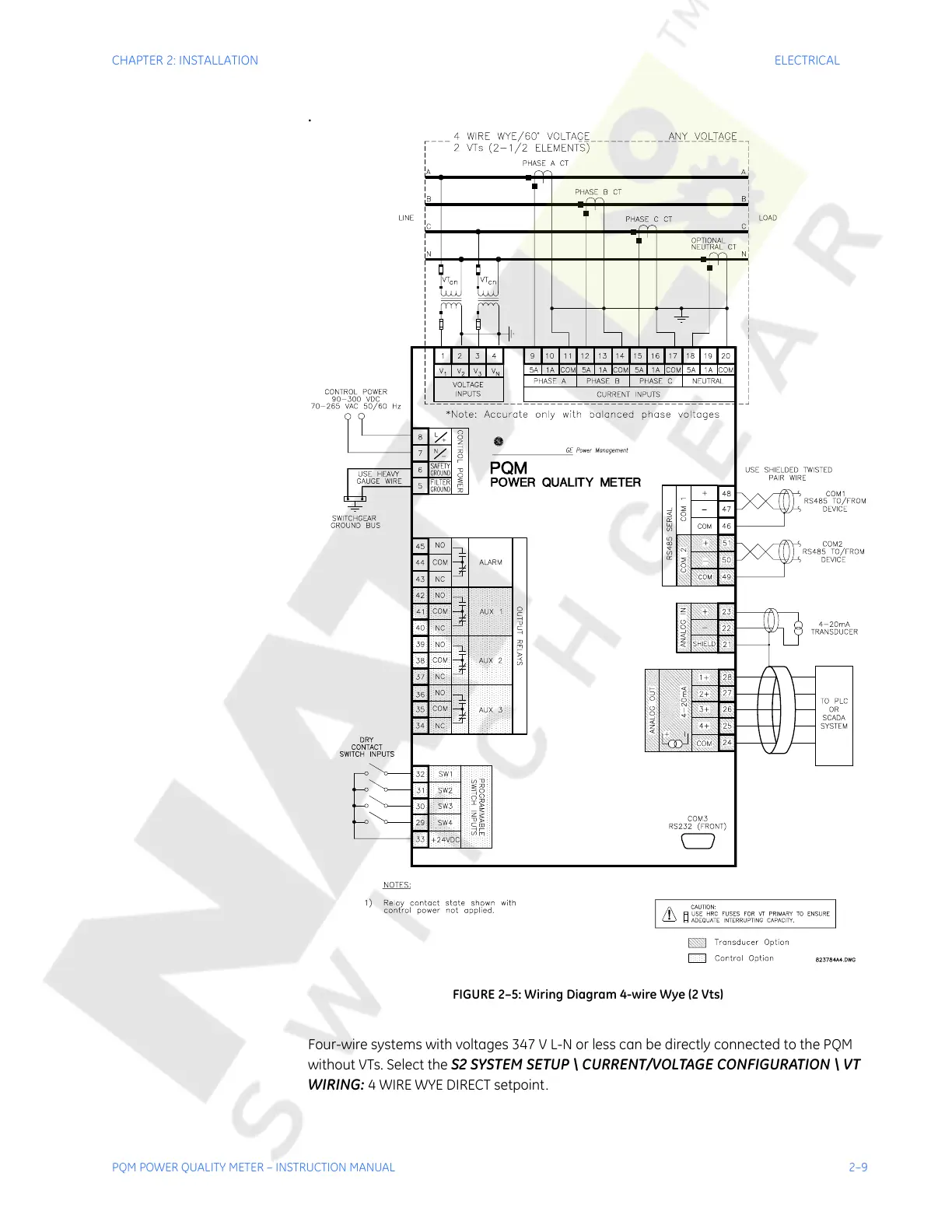

FIGURE 2–5: Wiring Diagram 4-wire Wye (2 Vts)
Four-wire systems with voltages 347 V L-N or less can be directly connected to the PQM
without VTs. Select the
S2 SYSTEM SETUP \ CURRENT/VOLTAGE CONFIGURATION \ VT
WIRING:
4 WIRE WYE DIRECT setpoint.
