3–10 PQM POWER QUALITY METER – INSTRUCTION MANUAL
DEFAULT MESSAGES CHAPTER 3: OPERATION

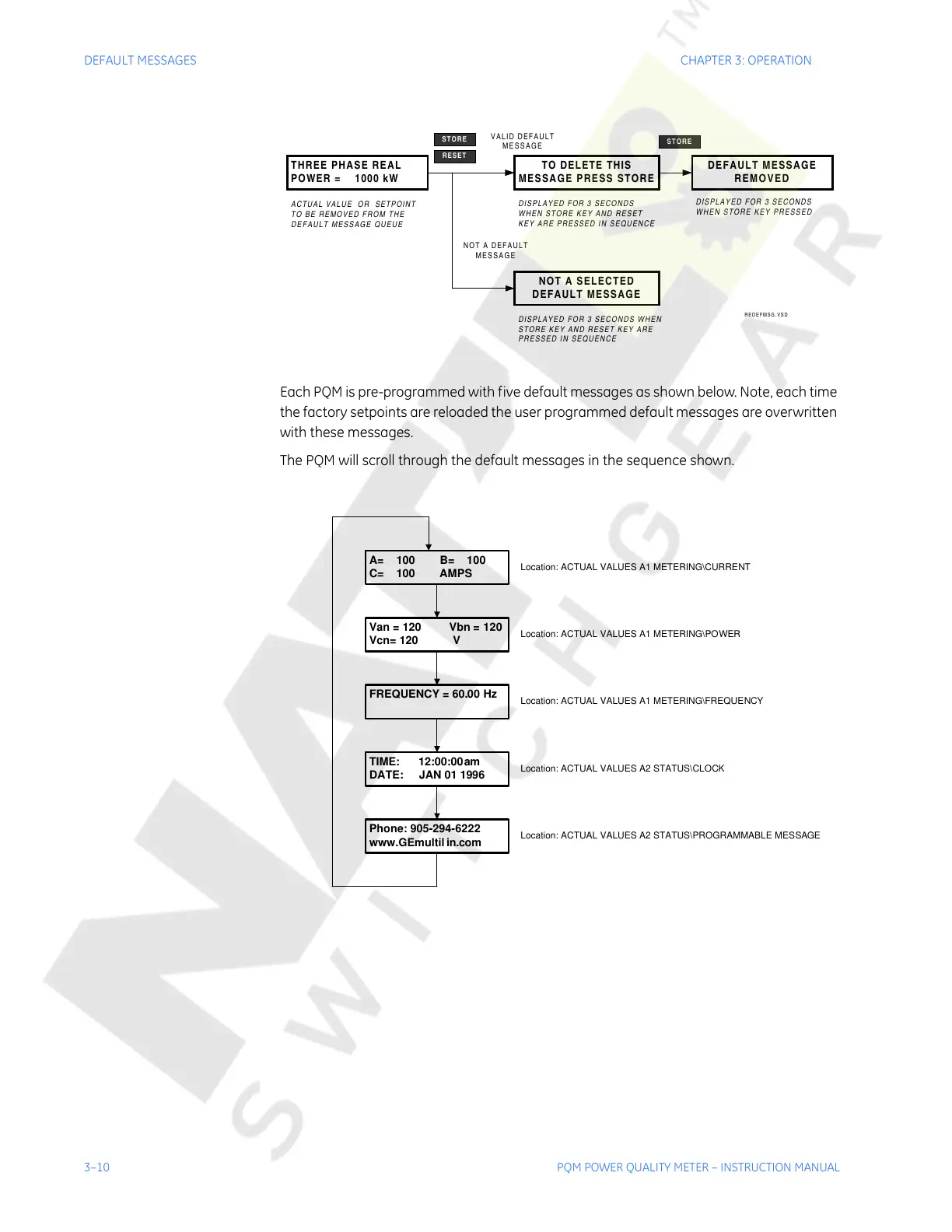

Each PQM is pre-programmed with five default messages as shown below. Note, each time
the factory setpoints are reloaded the user programmed default messages are overwritten
with these messages.
The PQM will scroll through the default messages in the sequence shown.
THREE PHASE REAL
POWER = 1000 kW
TO DELETE THIS
MESSAGE PRESS STORE
DEFAULT MESSAGE
REMOVED
ACTUAL VALUE OR SETPOINT
TO BE REMOVED FROM THE
DEFAULT MESSAGE QUEUE
DISPLAYED FOR 3 SECONDS
WHEN STORE KEY AND RESET
KEY ARE PRESSED IN SEQUENCE
DISPLAYED FOR 3 SECONDS
WHEN STORE KEY PRESSED
REDEFMSG.VSD
NOT A SELECTED
DEFAULT MESSAGE
DISPLAYED FOR 3 SECONDS WHEN
STORE KEY AND RESET KEY ARE
PRESSED IN SEQUENCE
VALID DEFAULT
MESSAGE
NOT A DEFAULT
MESSAGE
RESET
STORE
STORE
A= 100 B= 100
C= 100 AMPS
Van = 120 Vbn = 120
Vcn= 120 V
FREQUENCY = 60.00 Hz
TIME: 12:00:00am
DATE: JAN 01 1996
Phone: 905-294-6222
www.GEmultilin.com
Location: ACTUAL VALUES A1 METERING\CURRENT
Location: ACTUAL VALUES A1 METERING\POWER
Location: ACTUAL VALUES A1 METERING\FREQUENCY
Location: ACTUAL VALUES A2 STATUS\CLOCK
Location: ACTUAL VALUES A2 STATUS\PROGRAMMABLE MESSAGE
