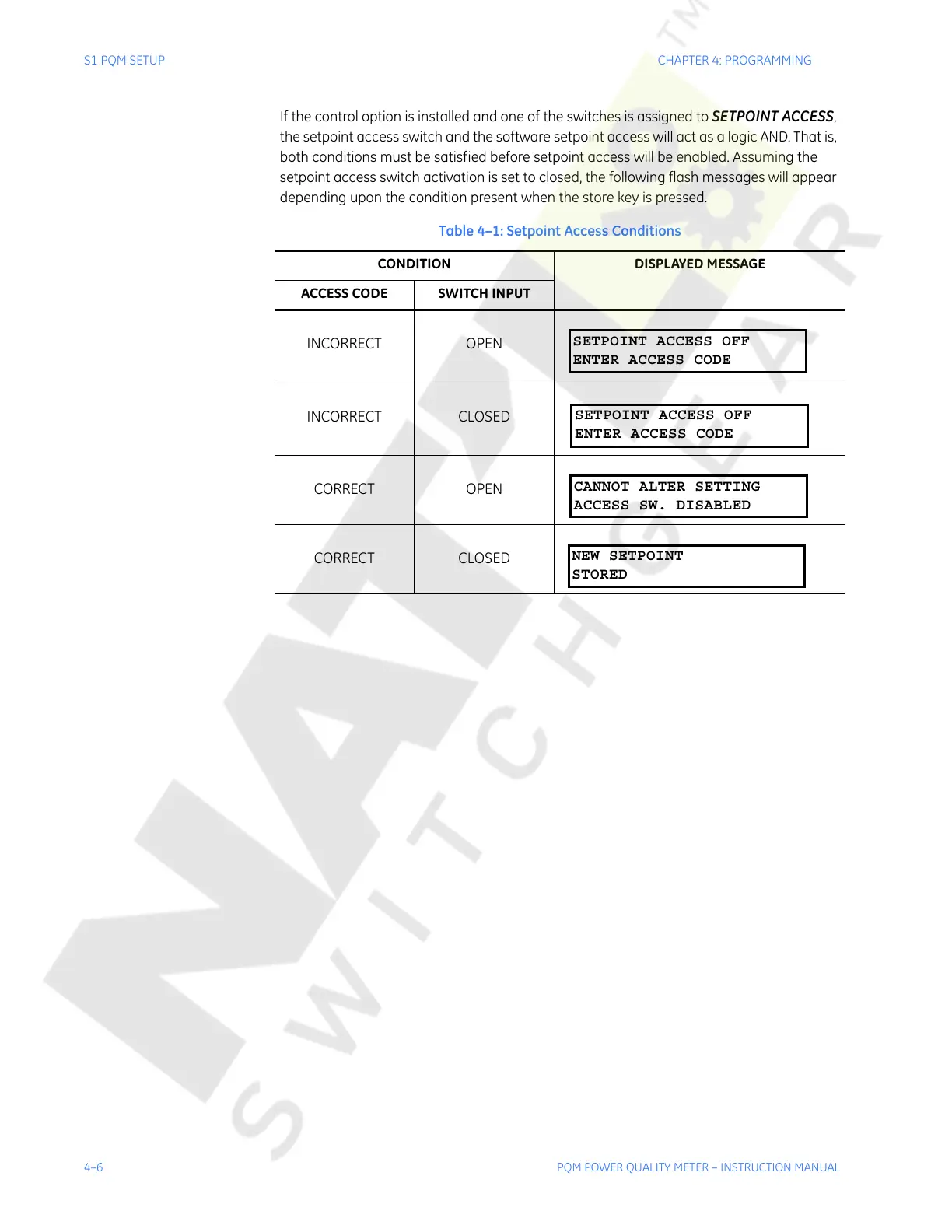

4–6 PQM POWER QUALITY METER – INSTRUCTION MANUAL
S1 PQM SETUP CHAPTER 4: PROGRAMMING
If the control option is installed and one of the switches is assigned to SETPOINT ACCESS,
the setpoint access switch and the software setpoint access will act as a logic AND. That is,
both conditions must be satisfied before setpoint access will be enabled. Assuming the
setpoint access switch activation is set to closed, the following flash messages will appear
depending upon the condition present when the store key is pressed.
Table 4–1: Setpoint Access Conditions
CONDITION DISPLAYED MESSAGE
ACCESS CODE SWITCH INPUT
INCORRECT OPEN
INCORRECT CLOSED
CORRECT OPEN
CORRECT CLOSED
SETPOINT ACCESS OFF
ENTER ACCESS CODE
SETPOINT ACCESS OFF
ENTER ACCESS CODE
CANNOT ALTER SETTING
ACCESS SW. DISABLED
NEW SETPOINT
STORED
