– 59 –

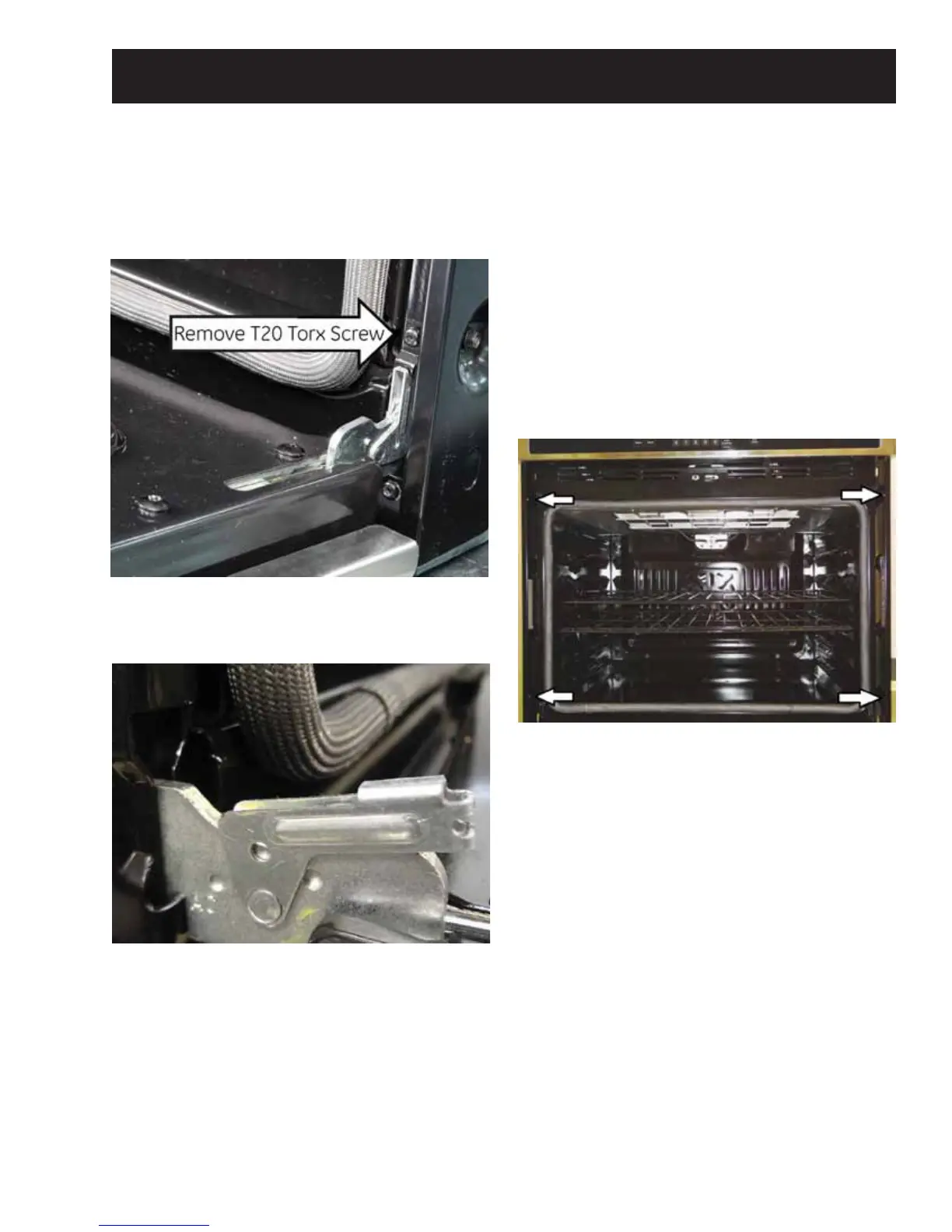

Oven Door Removal
1. To remove doors on later production models
of wall ovens, remove the two T20 Torx screws
and the bracket from the left and right vertical
braces.
2. Move the hinge lock down, and raise the door
XSDQGOLIWRȺRIWKHEUDFHV
Oven Removal
Servicing the cooling fan motor, wiring, high limit
thermostat, convection motor and bake element
mounting screw are only accessible with the oven
removed.
1. Disconnect power.
2. Remove the four mounting screws from the side
trim.
3. Remove the four upper oven mounting screws.
4. Safely slide the unit onto the oven dolly, or using
WZRPHQVHWWKHXQLWRQDSURWHFWHGÀRRU
