– 63 –

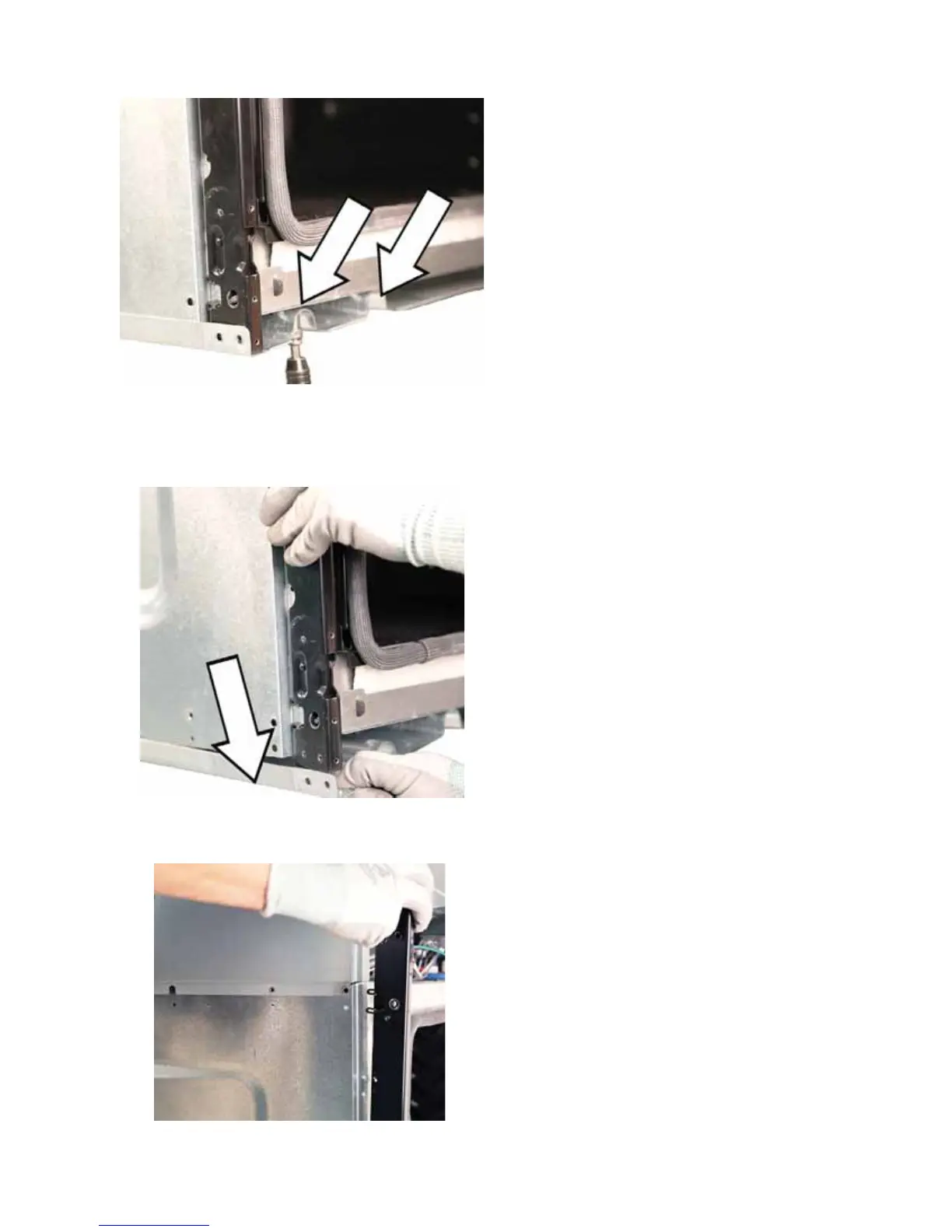

13. Remove the two screws from the bottom of the
base pan.
14. The vertical brace can be removed by slightly
pulling the base pan down to allow the brace to
clear the lower base assembly.
15. Rotate the brace outwards from under the
insulation retainer.
Vertical Brace Reinstallation
1. Reinstall the 3/8 in. nuts on the vertical brace.
2. Reinstall all of the screws, starting with the lower
two screws on the base pan.
3. Reinstall the upper and lower trim panels and
T20 Torx screws.
4. Reinstall the upper oven.
5. Reinstall all remaining screws.
6. Reinstall the door.
7. Safely reinstall the oven back into the enclosure.
8. Reapply power and check operation.
