5-16 T60 Transformer Protection System GE Multilin

5.2 PRODUCT SETUP 5 SETTINGS

5

CYBERSENTRY SETTINGS THROUGH ENERVISTA

CyberSentry security settings are configured under Device > Settings > Product Setup > Security.

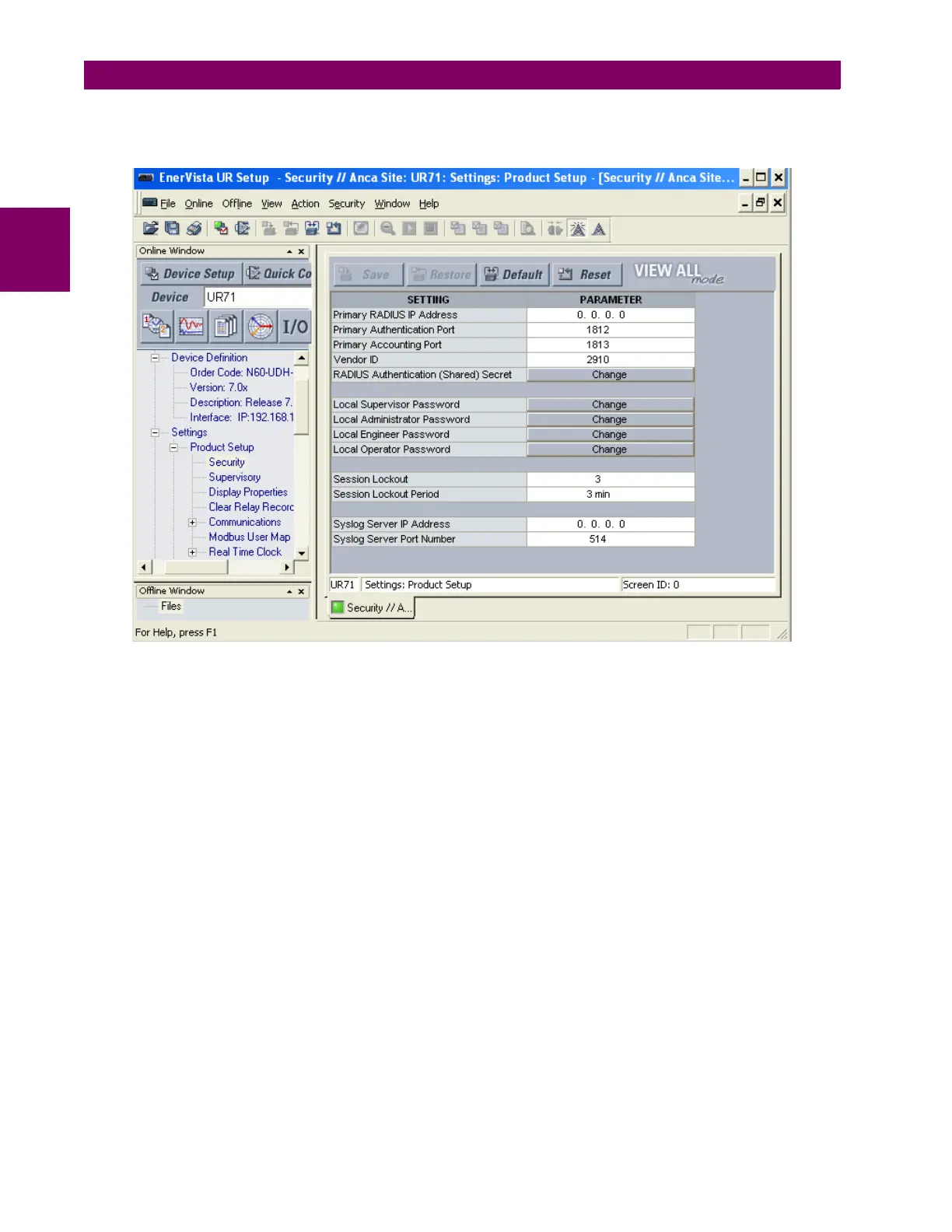

Figure 5–3: CYBERSENTRY SECURITY PANEL
