GE Multilin T60 Transformer Protection System 5-137
5 SETTINGS 5.4 SYSTEM SETUP
5
From each PMU, the user selects the phasor information of interest that is mapped into the selected aggregator datset(s).
For version 7.0 and later only FCDA data is supported.

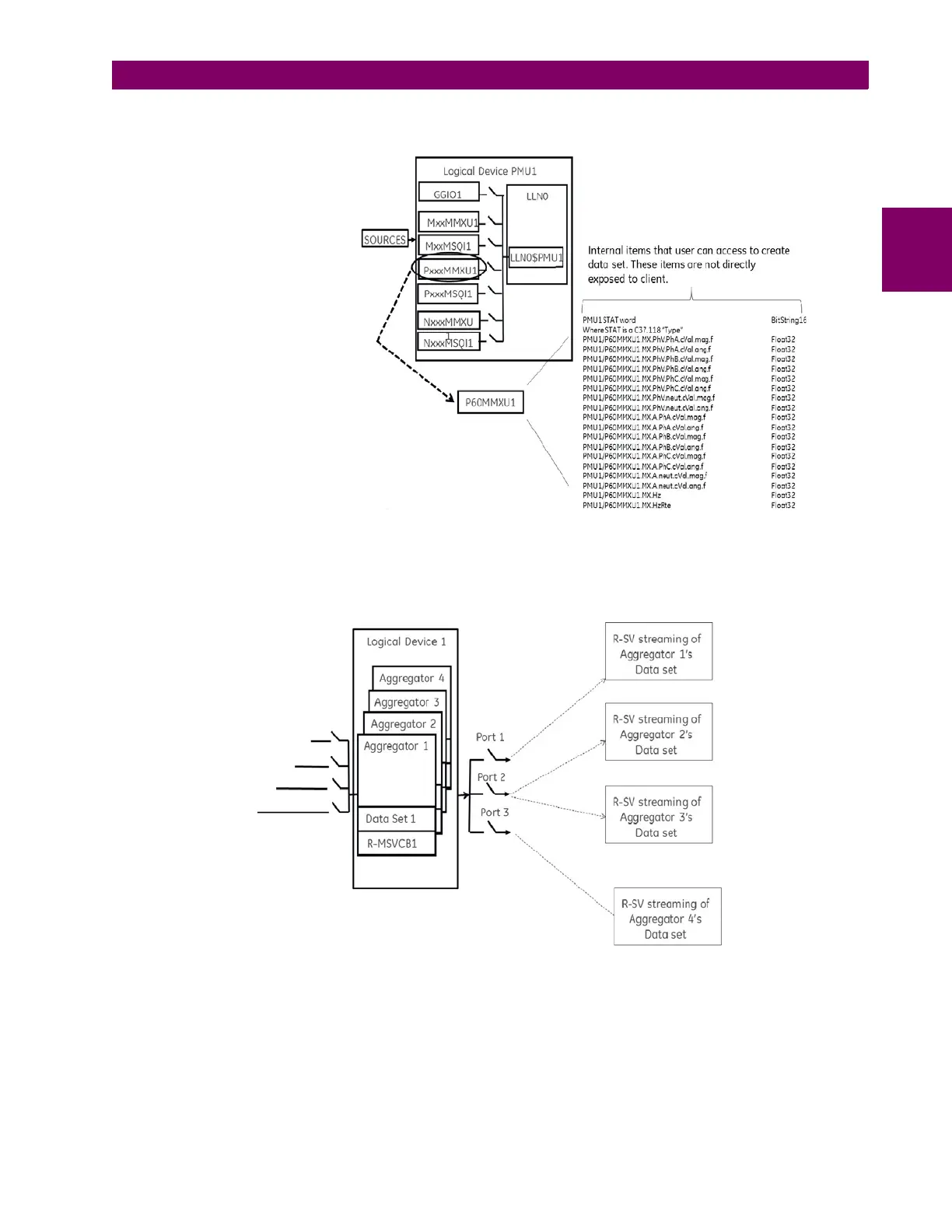

Figure 5–48: DATA SET CREATED FROM USER SELECTED INTERNAL ITEMS
EXAMPLE: THE CREATION OF DIFFERENT DATA SETS
The aggregators allow the aggregation of phasors from multiple PMUs (with the same reporting rate) into a single custom
data set to optimize bandwidth when streaming.
Figure 5–49: EXAMPLE OF AGGREGATOR DATA SETS
