Equipment Overview: Controls
Controls
TRIM KNOB Control
The TRIM KNOB control is a 24-position rotary control with a push
selection switch.
Power Key
NOTE
This key must be depressed for 0.25 seconds before the function is
activated. This helps prevent inadvertently turning the monitor off.
When the monitor is battery powered, this key turns the power on
and off.
When the monitor is plugged into an electrical outlet using the
optional power supply, this key turns the monitoring standby mode
on and off.
When the standby mode is turned on, patient monitoring is
discontinued. However, patient data already accumulated is retained
and the battery charging function continues.
Function Keys
Three fixed function keys are provided for NBP Go/Stop, Zero All, and
Silence Alarm. See the operator’s manual for more information.
Indicators
Power and battery indicators are located on the control panel.
NOTE
All control panel indicators illuminate as the monitor powers up or
during changes between normal and standby mode.

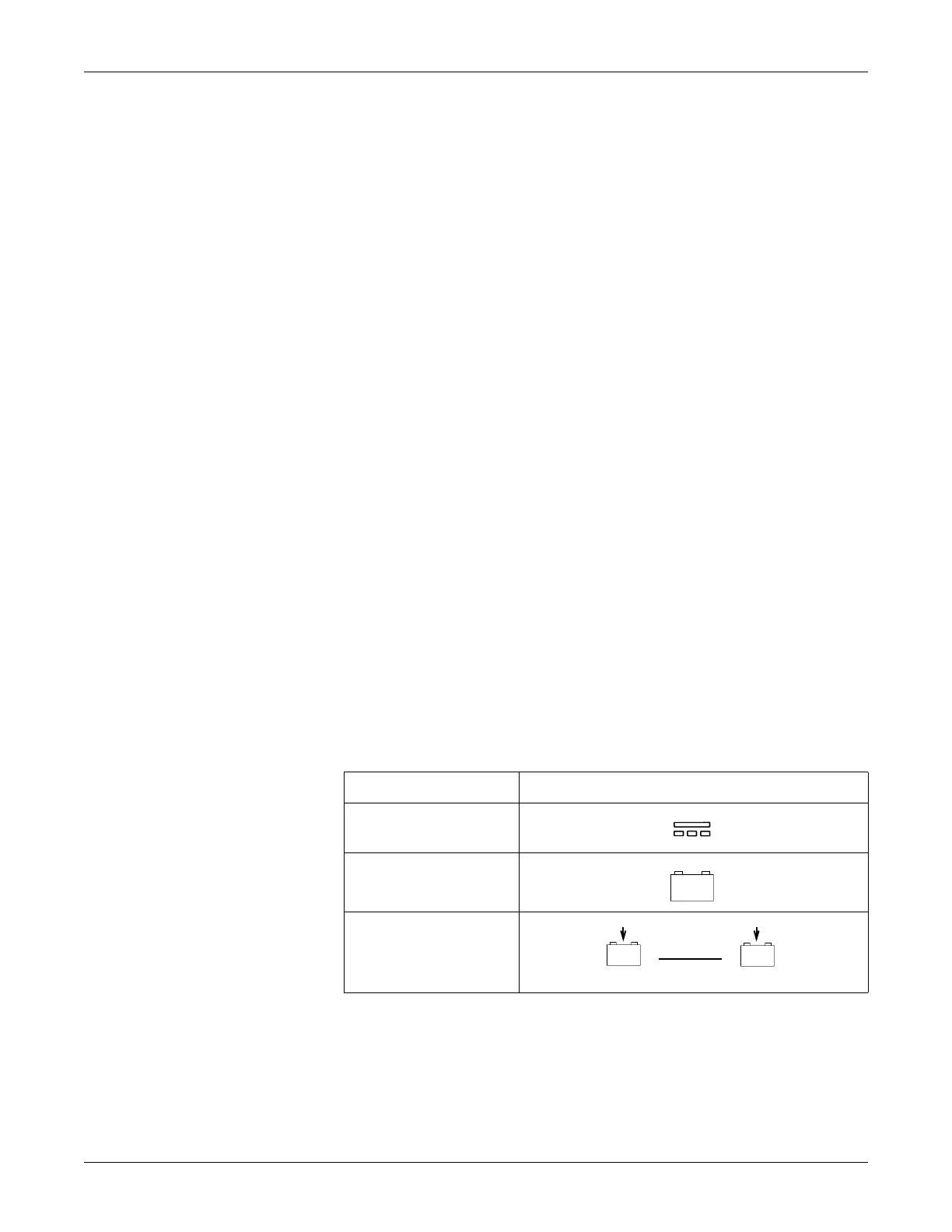

Indicator Label
DC power
Battery power
Battery charge status
AB
