– 23 –

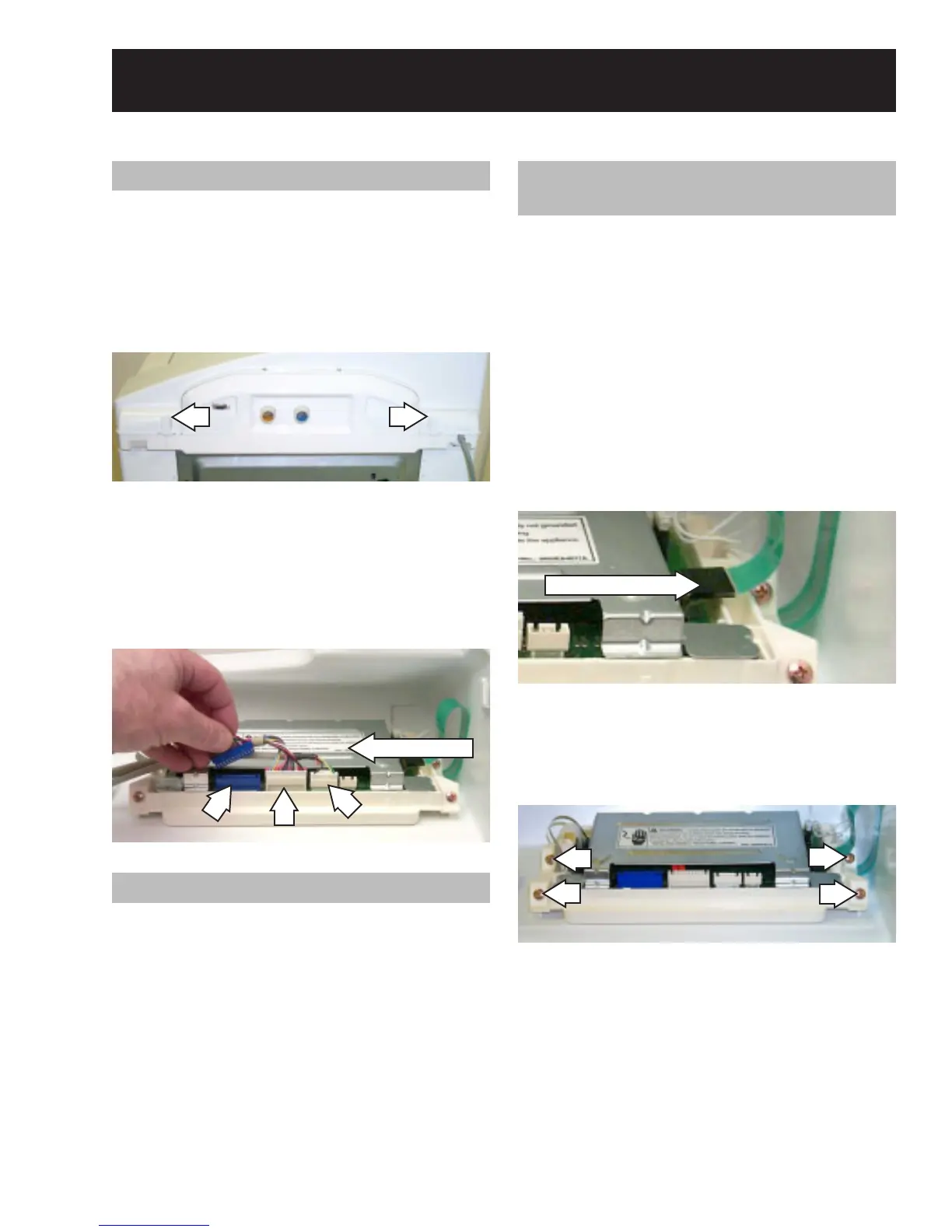

Washer Components
2. Place a towel over the lid of the washer to
prevent scratches to the surface. Gently lift
each corner of the backsplash, then roll it
forward so it rests on top of the washer.
3. Disconnect the wiring to the keypanel.
Remove the backsplash.
Backsplash
The backsplash must be removed to access the
control system components.
To remove the backsplash:
1. Remove the 2 Phillips head screws that hold
the backsplash in place.
Control System
The washer control system consists of three
main components:
• Main control board and touch screen LCD
• Membrane keypanel
• Inverter
Caution: To prevent electrostatic discharge from
damaging any electronic components, use an
ESD wristband or touch a grounded metal
surface before servicing.
Main Control Board and Touch Screen
LCD
The main control board and touch screen LCD
are attached to the backsplash as one unit. The
touch screen LCD and main control board are
only available as a complete assembly.
To remove the main control board and LCD
touch screen assembly:
1. Remove the
Backsplash.
2. Disconnect the ribbon at the right of the main
control board.
Note: Do not disconnect any other ribbons
from the main control board.
Disconnect Ribbon
3. Remove the 4 Phillips head screws (2 on
each side) that hold the main control board
and LCD touch screen assembly in place.
Remove the assembly.
Control Board
