– 27 –

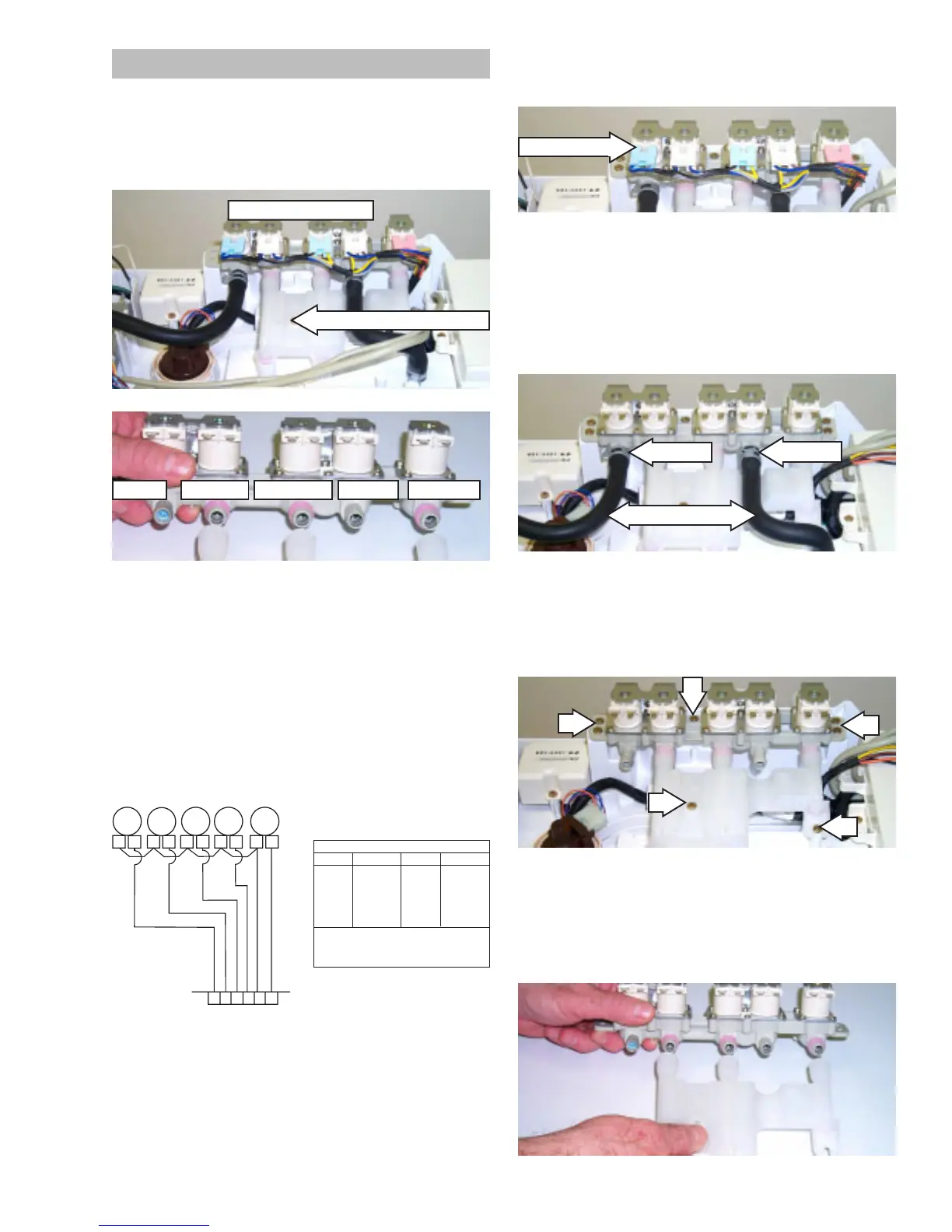

Water Valve Assembly
The water valve consists of a valve body and five
solenoid coils. It is only available as a complete
assembly. Each solenoid controls a specific water
function.
3. Note the placement of the wires, then
disconnect the wiring to the solenoid coils.
• Each coil on the water valve assembly has an
approximate resistance value of 30 Ω.
• The water valves receive power from the
inverter. They are connected to the 6-pin blue
connector on the inverter board. (See Inverter
and Main Board Pin Connectors.)
• When energized, there should be
approximately 13-VDC at the appropriate coil.
4. Remove the 2 water inlet hoses:
a. Squeeze each clamp and slide it back.
b. Carefully break the hoses loose.
c. Remove the hoses.
5. Remove the 3 Phillips head screws that hold
the water valve assembly in place and the 2
Phillips head screws that hold the water
distribution pipe in place.
Clamp
Clamp
Inlet hoses
Water Valve Assembly
Disconnect
BX
NX
AX
WX
AX
WX
PX
16
5
7
2
8
3
9
4
10
YX
NX
OX
BX
CX
YX
NX
SX
NX
165
2
3
4
Inverter
HV
CV
Additive
Bleach
Softener
COLOR CODE
LETTERS COLOR
COLOR
LETTERS
AX
BX
CX
NX
OX
PX
RX
SX
GX
VX
WX
YX
LT. BLUE
BLACK
BROWN
DK.BLUE
ORANGE
PINK
RED
GRAY
GREEN
PURPLE
WHITE
YELLOW
THE "X' INDICATES ONE SOLID COLOR-
NO TRACER. WIRES WITH TRACER SHOW
BOTH COLORS, EXAMPLE - WR IS WHITE
WITH RED TRACER.
Bleach
Cold Water Hot Water
Softener Additive
To remove the water valve assembly:
1. Remove the
Backsplash.
2. Remove the 3 Phillips head screws that hold
protective cover in place.
6. Remove the water valve assembly and
distribution pipe.
Note: The distribution pipe separates from the
water valve assembly as shown below.
Water Distribution Pipe
To Next Page
