Top Cover

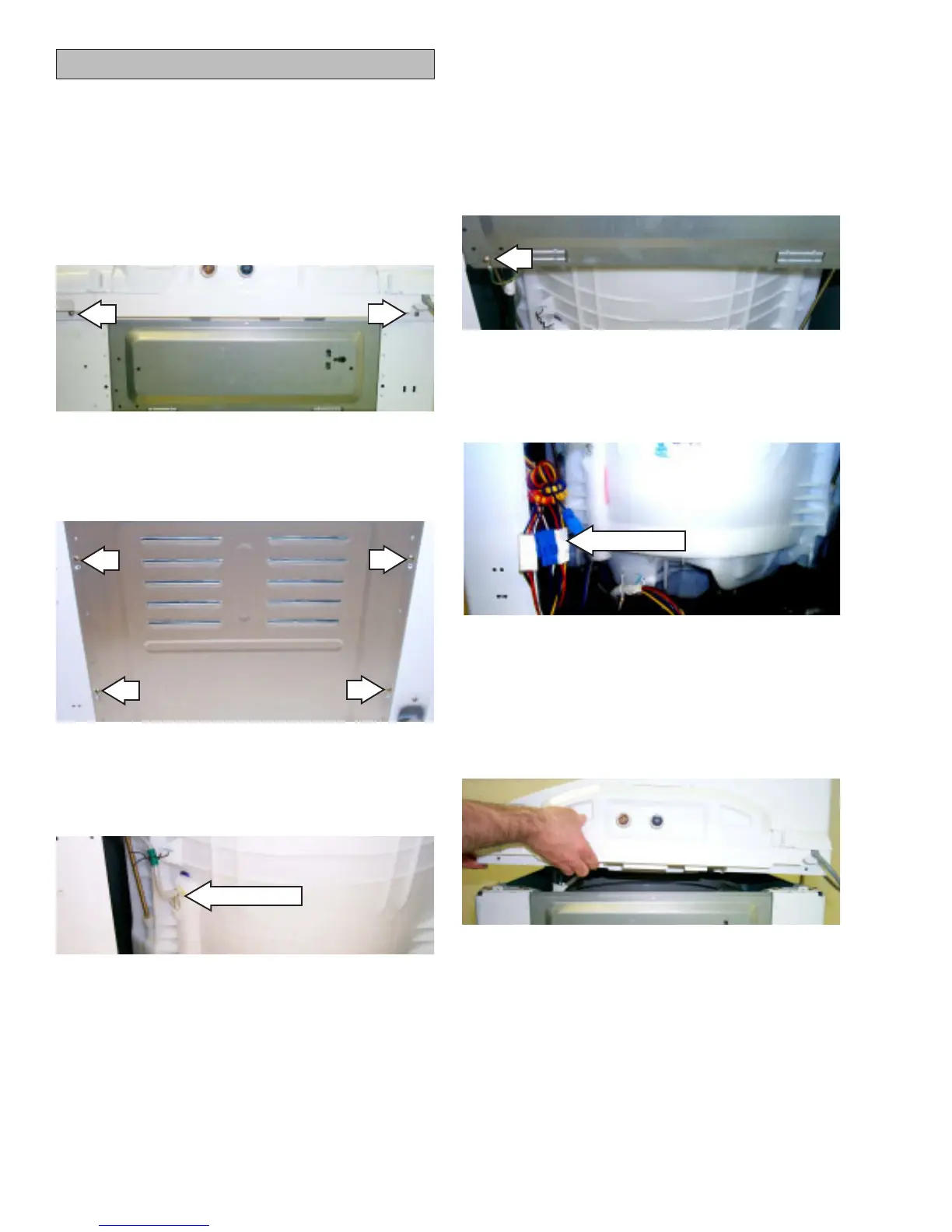

The top cover is held in place by 2 Phillips head
screws located on the top/back of the washer and
two front tabs.
To remove the top cover:
1. Remove the 2 Phillips head screws that hold
the top cover in place.
2. Remove the 4 Phillips head screws (2 on
each side) that hold the back cover in place.
Remove the back cover.
4. The main wiring harness is held in place by
plastic clips on the inside corner of the washer
cavity. Remove the wiring harness from the
holding clips.
5. Remove the screw that holds the ground wire
to the upper back cover.
3. Disconnect the pressure sensor hose from
the outer tub.
Disconnect
7. Lift the back of the top cover and slide it
forward to clear the front tabs. Remove the
top cover.
6. Disconnect the four wiring harness
connectors.
Disconnect
To Next Page
