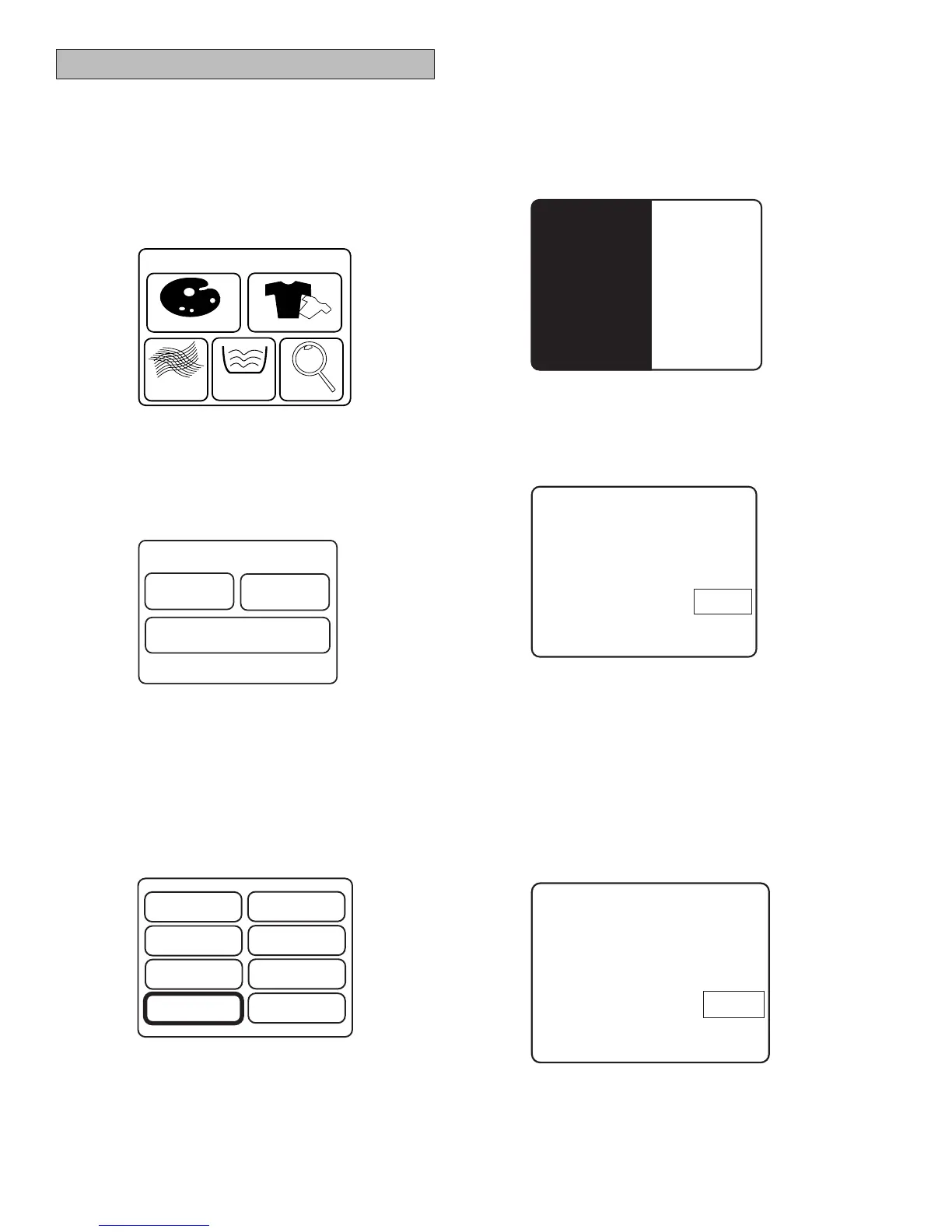

Factory Test Mode
The factory test mode allows the service tech to
make adjustments and run several important
tests on critical washer components.
1. Press the POWER pad to turn the washer on.
Press the HOME pad to ensure the home
screen is displayed.
MACHINE
PREFERENCES
HOME SCREEN
HELP
TROUBLESHOOTER
2. Press the HELP pad. The main help screen is
displayed.
3. Press the HELP and START/STOP pads
simultaneously for 3 seconds. The Factory
Test Mode screen is displayed.
4. Press TEST LOAD on the LCD screen.
5. The contrast screen is displayed. This test
shows screen resolution, which affects how
the washer’s graphics are displayed. Press
the START/STOP pad once to cycle through
the contrast screen (the black flips to the
opposite side).
CONTRAST
90
TEST LOAD
TEST BRAKE RESISTOR
IPM TEMP
ATM TEMP
WATER TEMP
032
040
020
6. Press the START/STOP pad. The TEST
LOAD screen is displayed.
7. Using the test load screen:
Note: Read this section completely before using
the TEST LOAD screen.
a. Press the START/STOP pad to scroll
through the test list.
GARMENT
FABRIC
SPECIAL
CYCLES
BY
BY
TOUCH TO SELECT WASH CYCLE
STAIN
INSPECTOR
COLOR
BY
TEST LOAD
SPIN/
BRAKE
SPIN
FILL/DRAIN/
SPIN CYCLE
LQC SPIN
LQC ALPHA
PROGRAM
CYCLE
CONTINOUS
SPIN
To Next Page
