3.3.1 Assembly of the Reaction Arm

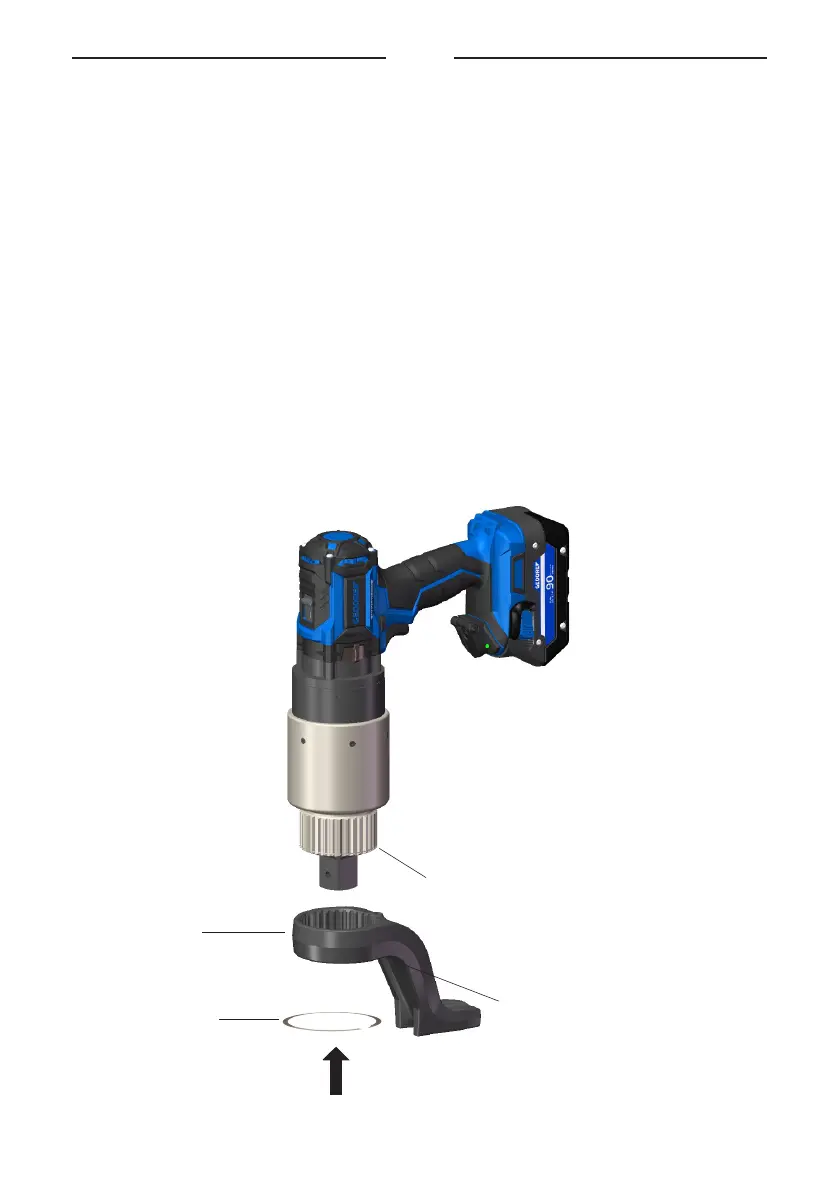

Push the cranked reaction arm (J) onto the toothing (H) of the device.
For reaction arms with hold function, press the button (HF) on the under-
side of the reaction arm (J) during the attachment.
Then x the reaction arm (J) with the circlip (SR). The circlip (SR) must
be located all around in the groove provided for this purpose. The circlip
(SR) prevents the reaction arm (J) from falling down.
The reaction arm (J) must sit completely on the toothing (H) to avoid
damage to the reaction arm (J) and the gearing (H).
H
J
SR
HF
