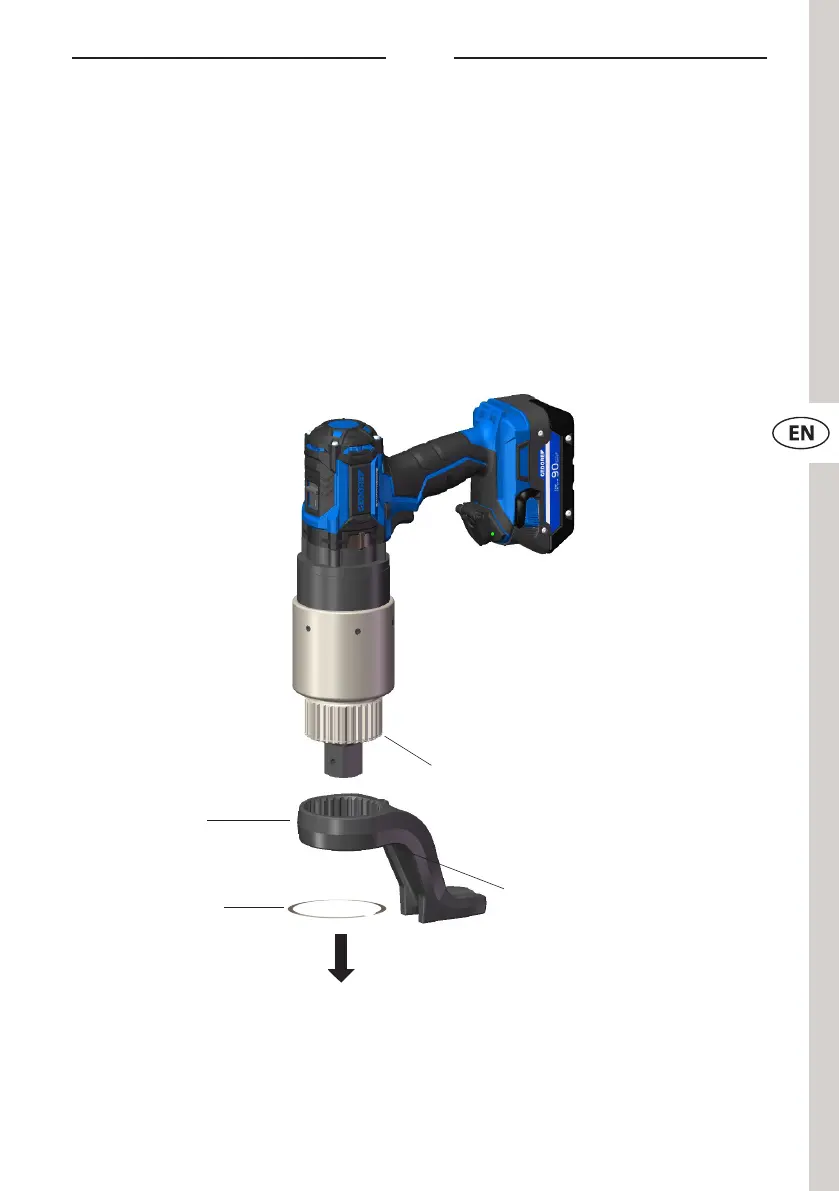

5.2 Remove Reaction Arm
1. Lever the circlip (SR) with a suitable tool (e.g. at
screwdriver) and pull it out of the gear toothing
2. If available, press the button (HF) of the hold function on
the underside of the reaction arm (J)
2. Pull the reaction arm (J) from the
toothing (H)
H
J
SR
HF
