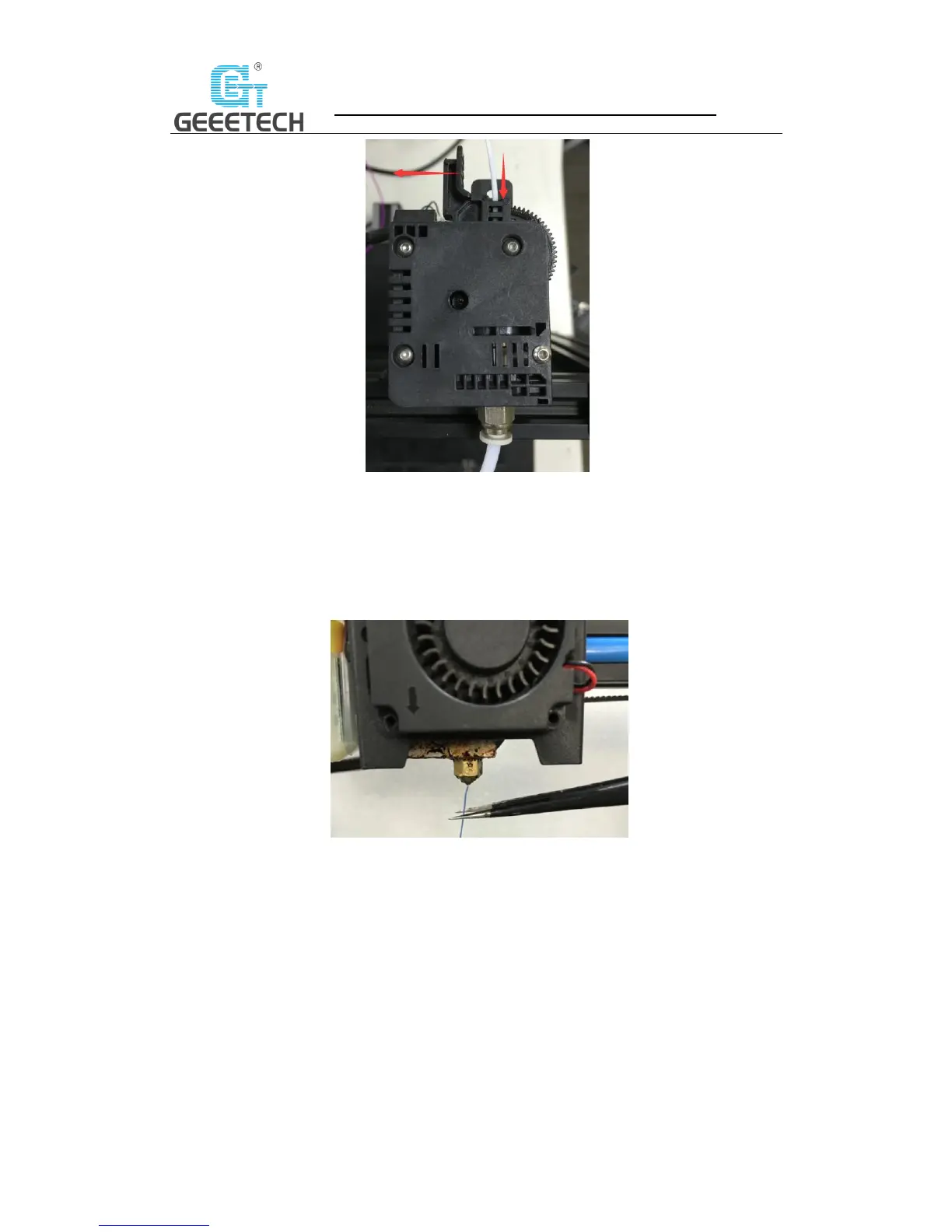

(Picture 3-13)
When print PLA, set the target nozzle temperature about 180-210℃. When the temp is stable,
control the extruder filament feeding on LCD screen (“Move axis”), feed until there is molten
material flowing from the nozzle.
Observe the nozzle, if there is no filament stuck and the filament is coming out smoothly, then
stop filament feeding, clear the nozzle with tweezers. See picture (3-14).
(Picture 3-14)

Geeetech A20M Specifications

General

Printing Technology	FDM (Fused Deposition Modeling)
Build Volume	255 x 255 x 255 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Print Speed	100 mm/s
Max Bed Temperature	100°C
Connectivity	SD Card, USB
Frame Material	Aluminum
Number of Extruders	2
Bed Leveling	Manual
Power Supply	24V/15A
Machine Dimensions	442 x 447 x 480 mm
Supported Materials	PLA, ABS, Wood, PVA, HIPS
Print Bed	Heated
Display	LCD
Max Nozzle Temperature	250°C
