Geeetech A20M User Manual

16
SHENZHEN GETECH TECHNOLOGY CO., LTD
4 First print
4.1 Level the print bed
The first layer is key to a successfully printed model. The factory default setting is a little high in
order to avoid scratching the hotbed with the nozzle, so users need to adjust the distance
between nozzle and hotbed again. After the first-time bed leveling, users may need to level the
bed again in future.
 Rough leveling

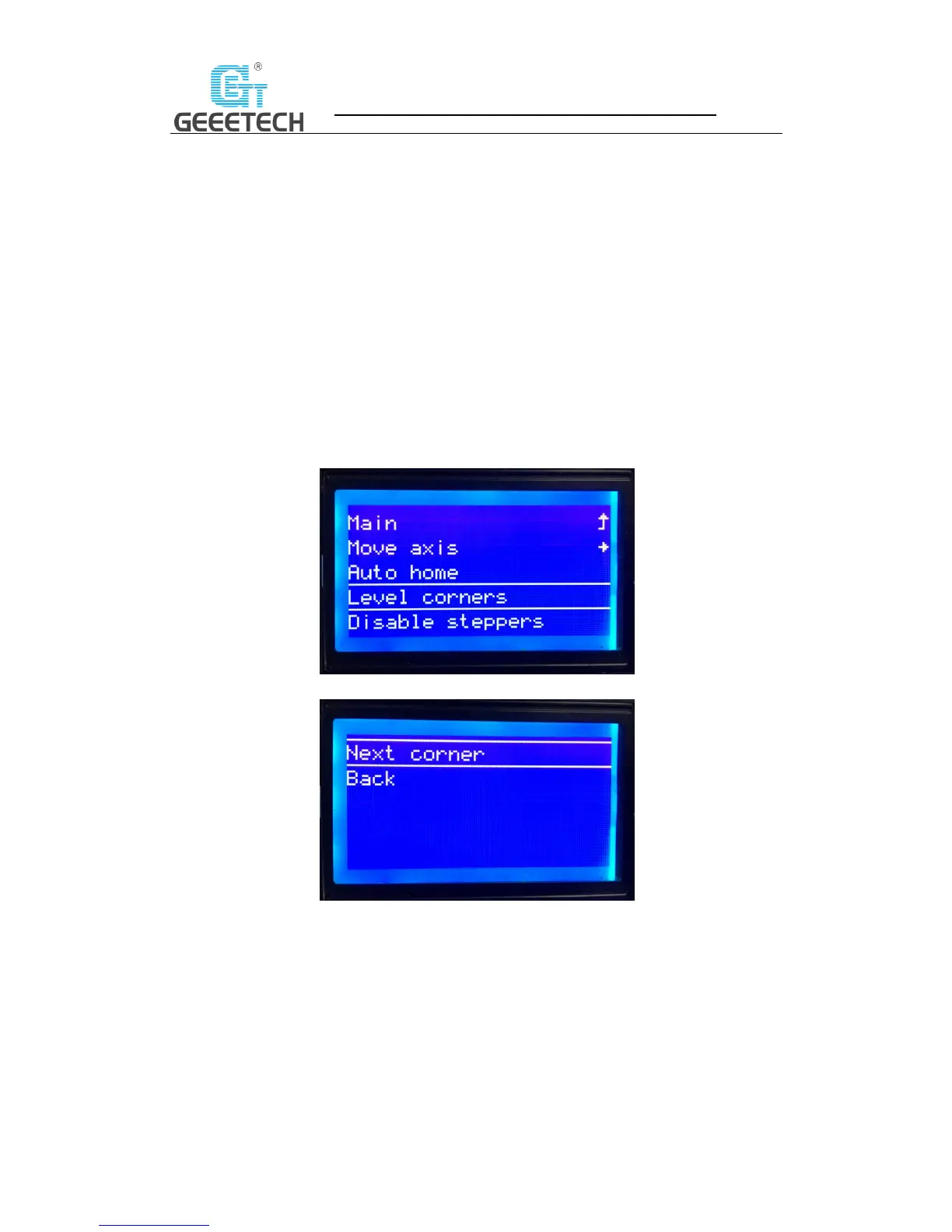

Home the printer first (Prepare> Auto home), then it shows the option “Level corners” on the
LCD screen. Put a piece of A4 paper on the platform, click “Next corner”, the extruder head
moves counterclockwise from the bottom left corner to the four corners of the platform. See
picture (4-1, and 4-2).
(Picture 4-1)
(Picture 4-2)
When the extruder head moves to the left bottom, adjust the corresponding knob until the
distance between the nozzle and bed is about the thickness of a piece of paper (about
0.1-0.2mm). Slide the paper back and forth to see if you feel a slight resistance. If yes, it means
the leveling of this corner is finished and you can proceed to level the rest corners with the same
method. See picture (4-3).

Geeetech A20M Specifications

General

Printing Technology	FDM (Fused Deposition Modeling)
Build Volume	255 x 255 x 255 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Print Speed	100 mm/s
Max Bed Temperature	100°C
Connectivity	SD Card, USB
Frame Material	Aluminum
Number of Extruders	2
Bed Leveling	Manual
Power Supply	24V/15A
Machine Dimensions	442 x 447 x 480 mm
Supported Materials	PLA, ABS, Wood, PVA, HIPS
Print Bed	Heated
Display	LCD
Max Nozzle Temperature	250°C
