Geeetech A20M User Manual

46
SHENZHEN GETECH TECHNOLOGY CO., LTD

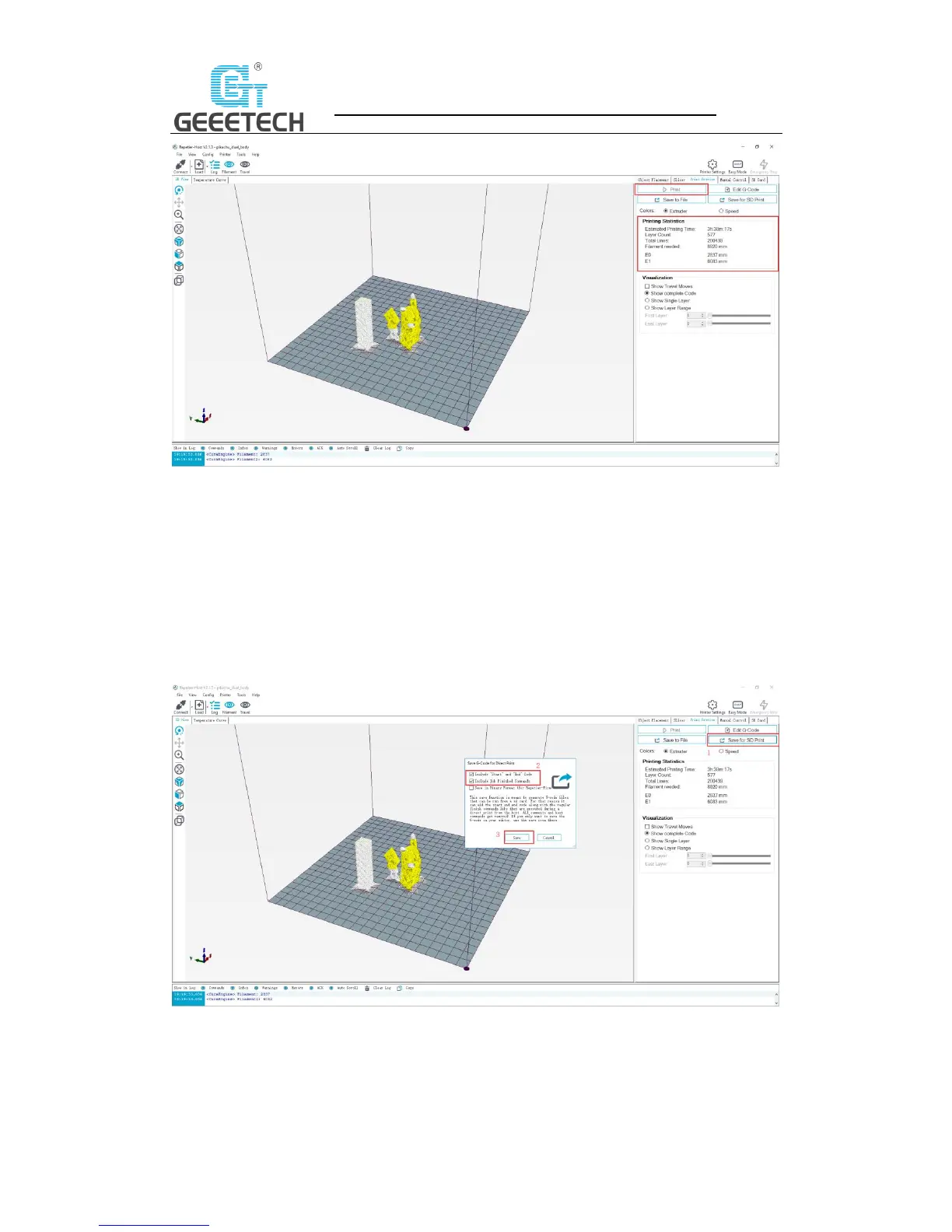

(Picture 6-31)
6.4 SD card printing
When all parameters are set, click “Save for SD print”. It will pop up a dialog as picture below
(See picture 6-32) and then click the save button to generate a .gcode file. Copy the gcode file to
the SD card.
(Picture 6-32)
Insert the SD card into the slot which is on the right side of the LCD screen. Press the knob to
enter the main menu and choose “Print from SD”. See picture (6-33)

Geeetech A20M Specifications

General

Printing Technology	FDM (Fused Deposition Modeling)
Build Volume	255 x 255 x 255 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Print Speed	100 mm/s
Max Bed Temperature	100°C
Connectivity	SD Card, USB
Frame Material	Aluminum
Number of Extruders	2
Bed Leveling	Manual
Power Supply	24V/15A
Machine Dimensions	442 x 447 x 480 mm
Supported Materials	PLA, ABS, Wood, PVA, HIPS
Print Bed	Heated
Display	LCD
Max Nozzle Temperature	250°C
