Geeetech A20M User Manual

45
SHENZHEN GETECH TECHNOLOGY CO., LTD
(Picture 6-28)
 Model slicing

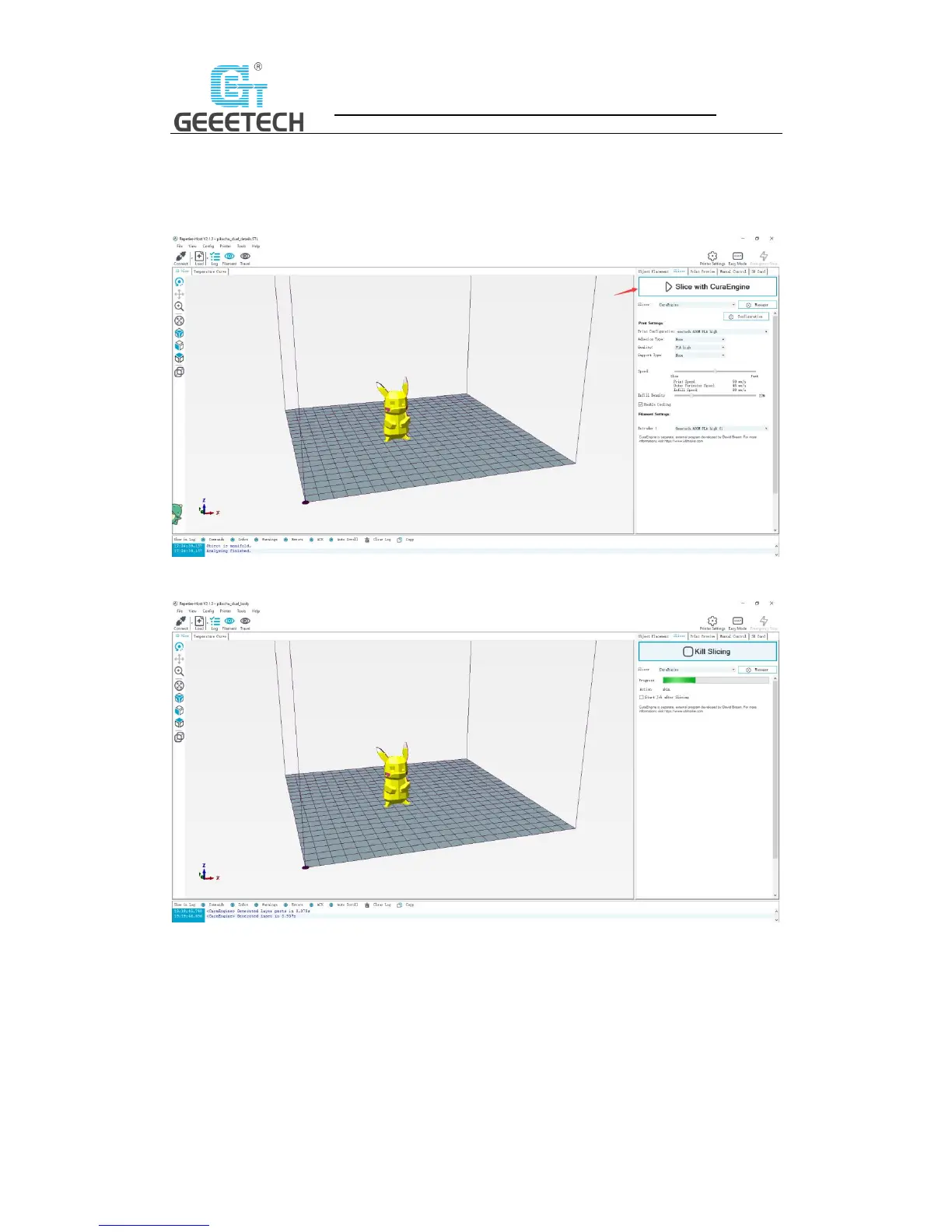

When the size and direction of the model are set, choose the imported slicing parameters, and
click “Slice with CuraEngine”. See picture (6-29, 6-30).
(Picture 6-29)
(Picture 6-30)
You can find the model information such as estimated print time, the amount of filament needed,
etc. Click “Print” to start USB printing. Refer to picture (6-31).
The printer will heat to the target temp and then start printing. Under high temperature, the
filament will flow out of the nozzle, which is normal. You can use tweezers to clean up the
residual material of the nozzle.

Geeetech A20M Specifications

General

Printing Technology	FDM (Fused Deposition Modeling)
Build Volume	255 x 255 x 255 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Print Speed	100 mm/s
Max Bed Temperature	100°C
Connectivity	SD Card, USB
Frame Material	Aluminum
Number of Extruders	2
Bed Leveling	Manual
Power Supply	24V/15A
Machine Dimensions	442 x 447 x 480 mm
Supported Materials	PLA, ABS, Wood, PVA, HIPS
Print Bed	Heated
Display	LCD
Max Nozzle Temperature	250°C
