Geeetech A20M User Manual

14
SHENZHEN GETECH TECHNOLOGY CO., LTD
3.4 Check the filament

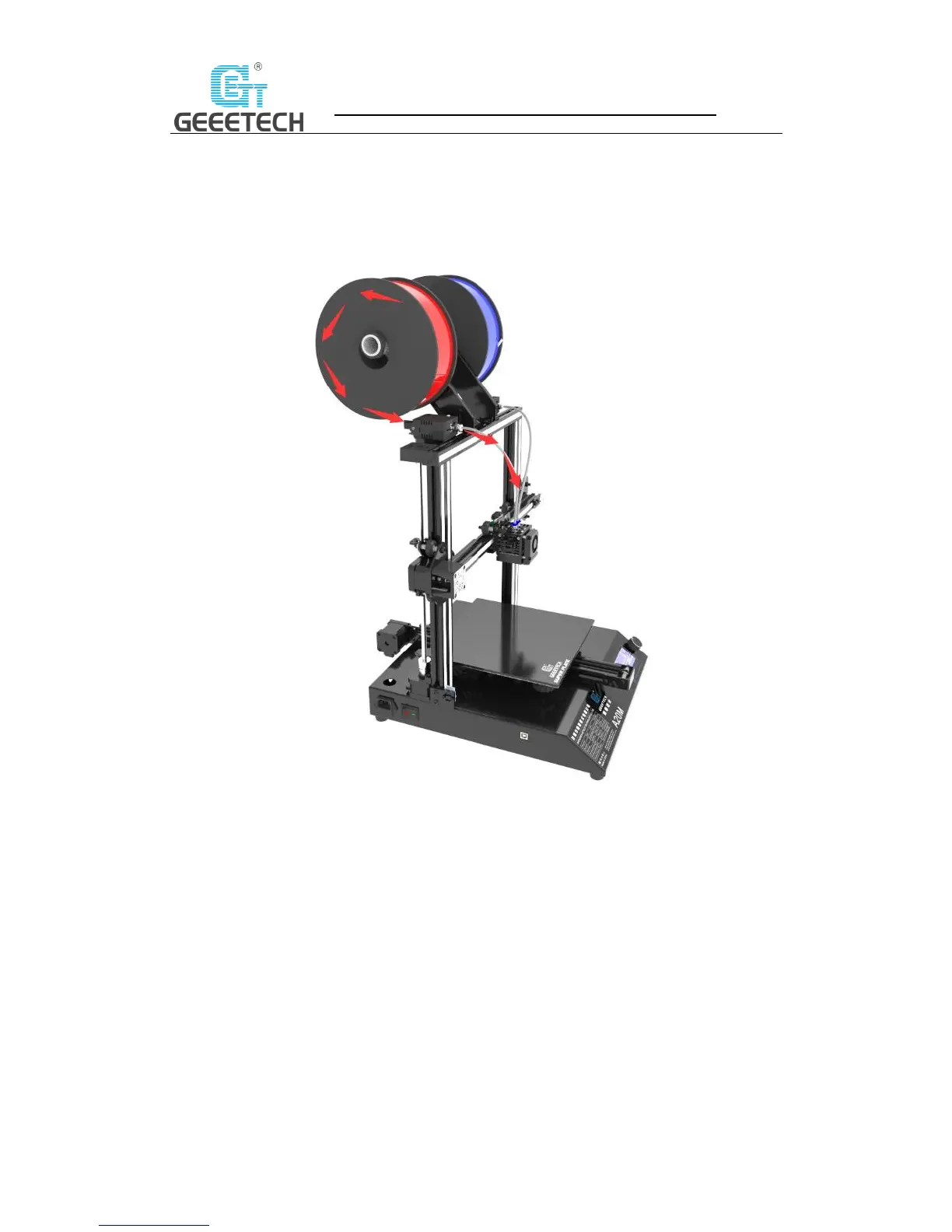

Put the filament on the spool holder. Please pay attention to the feeding direction of the filament.
See picture (3-12).
(Picture 3-12)
Since the filament is bent, the first section of it needs to be straightened by hand and trimmed to
make it easier to insert the filament into the feeder. Press down the lever handle of the extruder
and insert the filament into the feeding tube until it reaches the extruder head. See picture
(3-13).

Geeetech A20M Specifications

General

Printing Technology	FDM (Fused Deposition Modeling)
Build Volume	255 x 255 x 255 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Print Speed	100 mm/s
Max Bed Temperature	100°C
Connectivity	SD Card, USB
Frame Material	Aluminum
Number of Extruders	2
Bed Leveling	Manual
Power Supply	24V/15A
Machine Dimensions	442 x 447 x 480 mm
Supported Materials	PLA, ABS, Wood, PVA, HIPS
Print Bed	Heated
Display	LCD
Max Nozzle Temperature	250°C
