27
SHENZHEN GETECH TECHNOLOGY CO., LTD

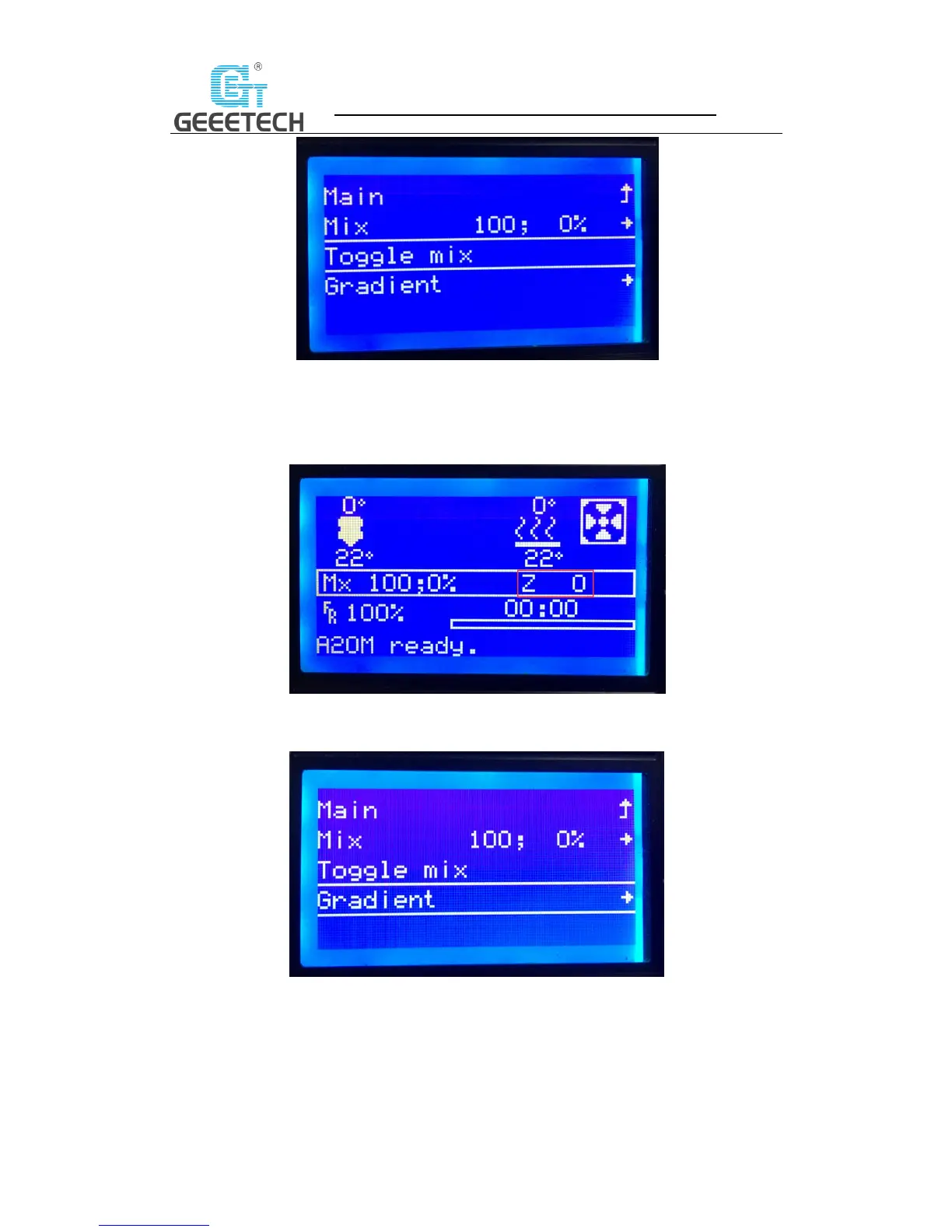

(Picture 5-14)
Set variable mix ratio
First, you need to get the current z-axis coordinate, which can be found on the screen, details see
picture (5-15).
(Picture 5-15)
Choose “Gradient” to set the variable mix ratio, details see picture (5-16).
(Picture 5-16)
“Gradient mix”: Adjust the filament ratio of E0 and E1. See picture (5-17and 5-18).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Geeetech A20M and is the answer not in the manual?

Geeetech A20M Specifications

General IconGeneral
Printing TechnologyFDM (Fused Deposition Modeling)
Build Volume255 x 255 x 255 mm
Layer Resolution0.1-0.4 mm
Filament Diameter1.75 mm
Nozzle Diameter0.4 mm
Max Print Speed100 mm/s
Max Bed Temperature100°C
ConnectivitySD Card, USB
Frame MaterialAluminum
Number of Extruders2
Bed LevelingManual
Power Supply24V/15A
Machine Dimensions442 x 447 x 480 mm
Supported MaterialsPLA, ABS, Wood, PVA, HIPS
Print BedHeated
DisplayLCD
Max Nozzle Temperature250°C
