Geeetech A20M - Page 34

34
SHENZHEN GETECH TECHNOLOGY CO., LTD

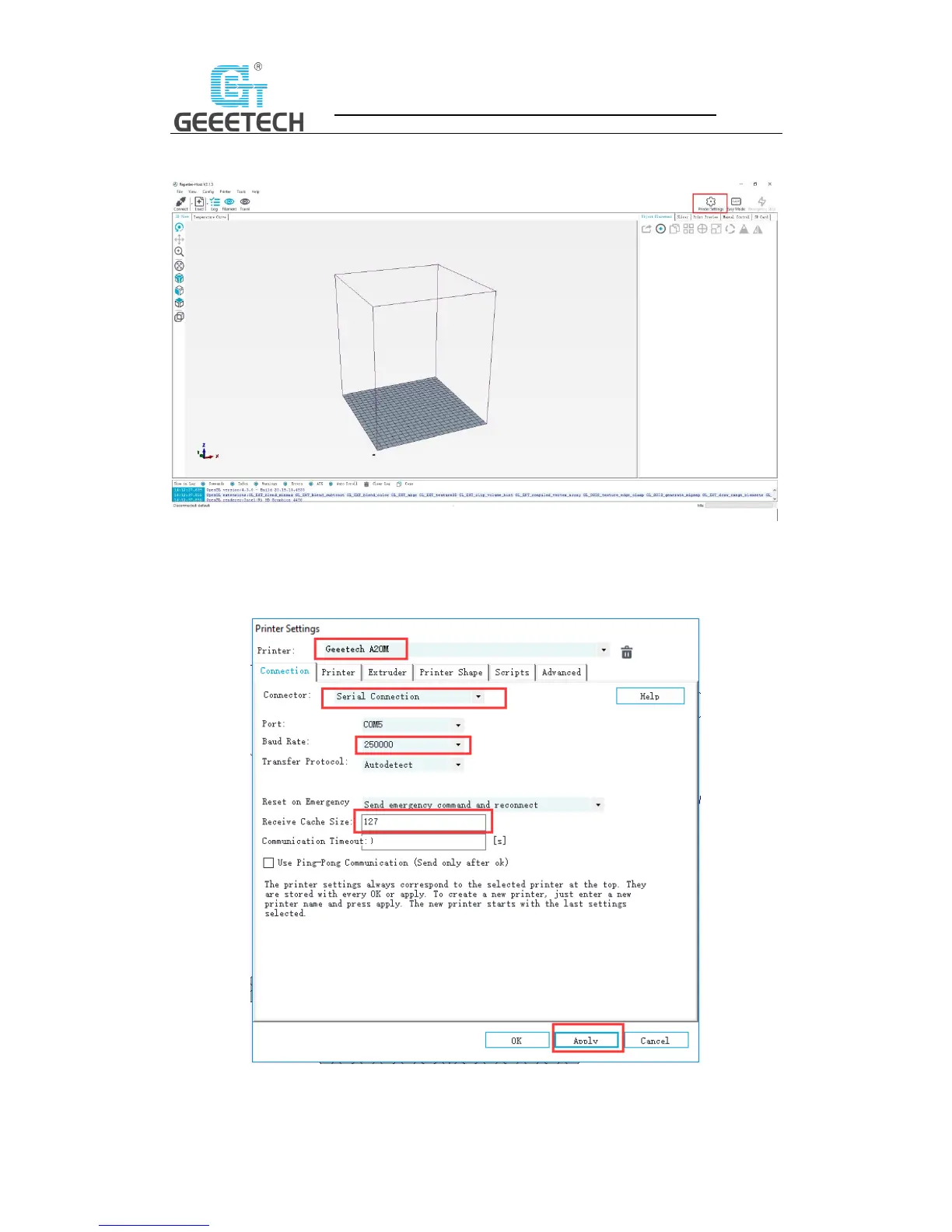

Using the Repetier-Host for the first time, printer parameters need to be configured before
connecting. Click “Printer settings” on the top right corner, see picture (6-6).
(Picture 6-6)
It pops up the content as the picture below (6-7). Write down the relevant info accordingly.
(Pay attention to the highlighted parts)
a. Connection dialog：
(Picture 6-7)
