9
SHENZHEN GETECH TECHNOLOGY CO., LTD

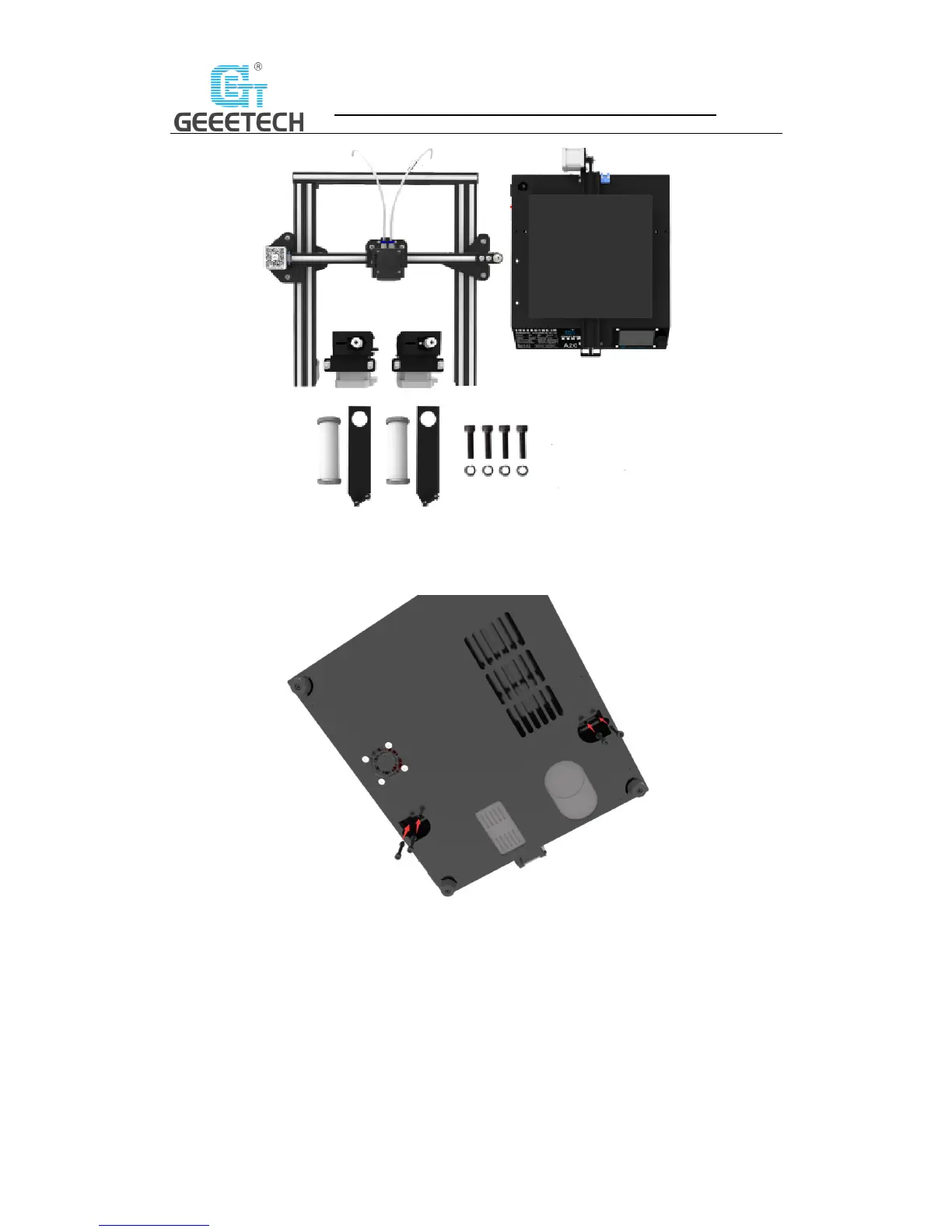

(Picture 3-1)
 Assemble the gantry frame and base from bottom to top with 4 M5x35 screws and 4 M5
spring washers. See picture (3-2).
(Picture 3-2)
 Assemble and fix the two sets of extruder units to the back side of the top gantry as shown
in picture (3-3).
