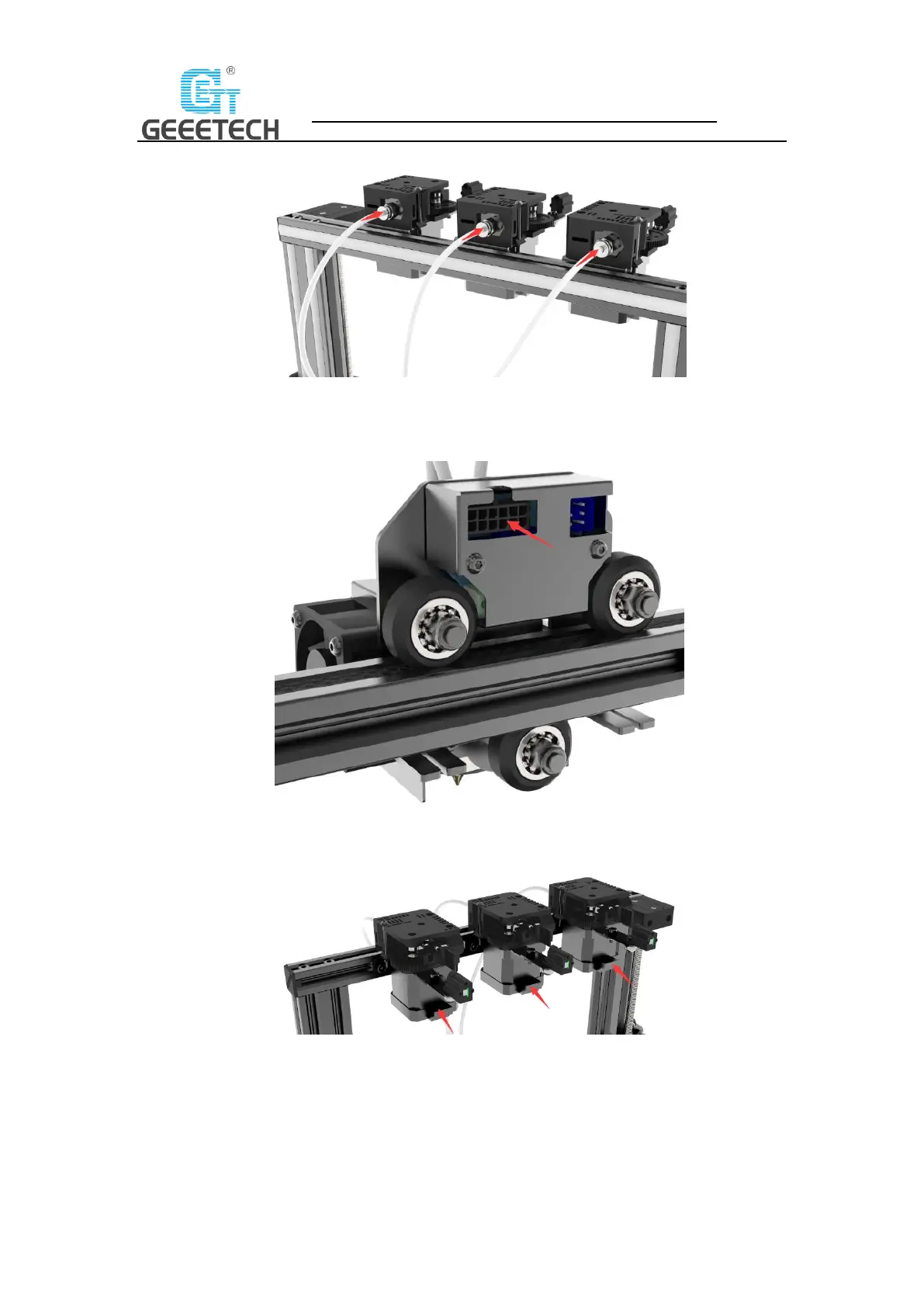

(Picture 5-5)
Plug the extruder cables into the socket of the extruder head adapter plate, and the buckle
must be fastened. See picture (5-6).
(Picture 5-6)
Connect the motor wires of E0、E1and E2. See picture (5-7).
(Picture 5-7)
Then the extruder wire and the motor extruder wire are fixed into the small hole on the
backside of the screw with the Cable tie to avoid the wire harness touching the model
during printing. In addition, the position the harness fixed needs to reserve the length of the
Z-axis at the maximum height. See picture (5-8).
