SHENZHEN GETECH TECHNOLOGY CO., LTD

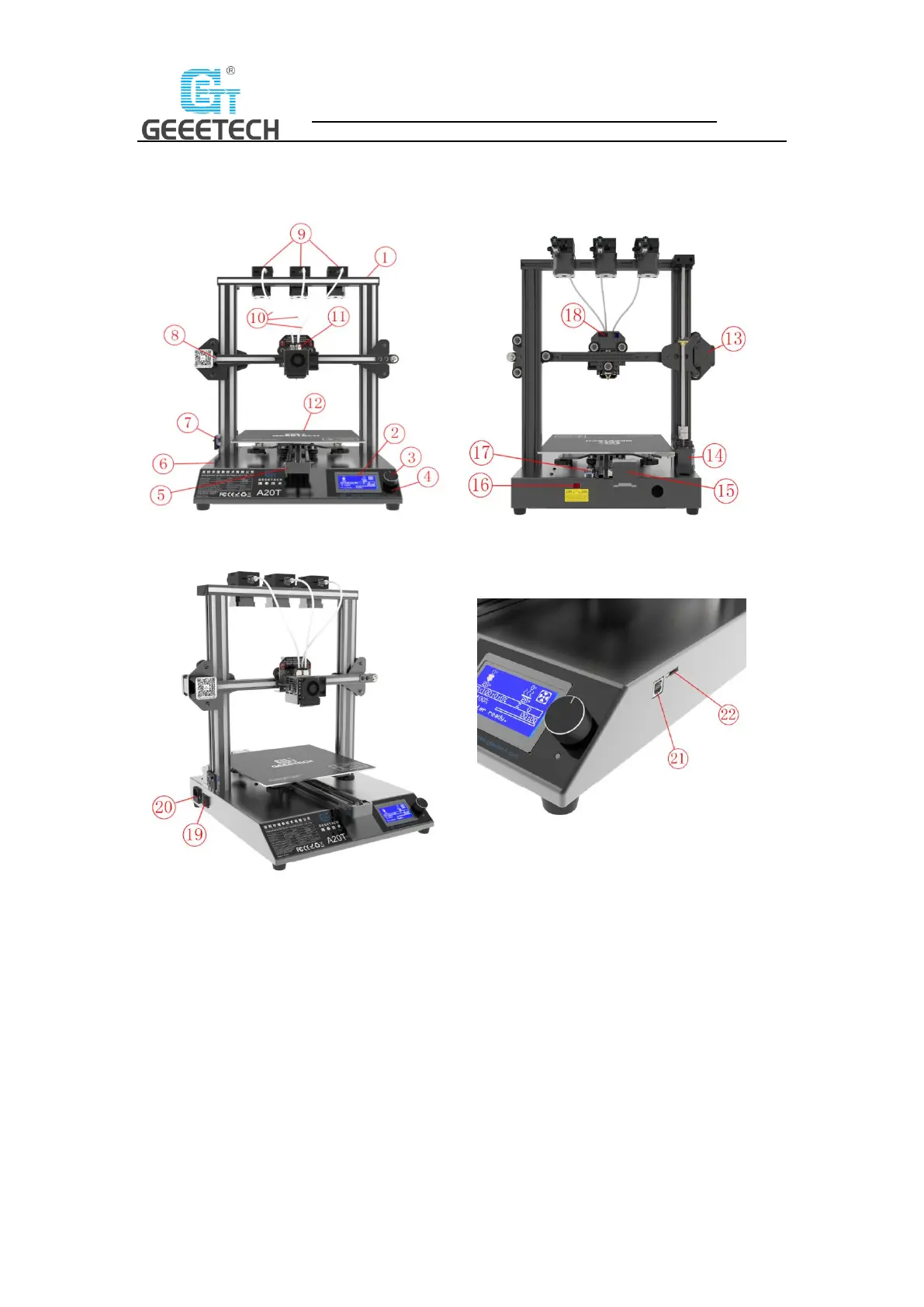

4 Machine Overview
(Picture 4-1) (Picture 4-2)
(Picture 4-3) (Picture 4-4)
○
1
Gantry frame ○
2
LCD12864 screen ○
3
Knob ○
4
Reset button ○
5
Y axis ○
6
Bottom kit ○
7
Z axis
end stop ○
8
X axis end stop ○
9
Extruder motors (3 sets) ○
10
Teflon tube ○
11
Extruder head ○
12
Hot
bed ○
13
X axis motor ○
14
Z axis motor ○
15
Y axis motor ○
16
Power voltage selector switch ○
17
Y axis
end stop ○
18
Extruder wire interface ○
19
Power switch ○
20
Power socket ○
21
USB port ○
22
TF card slot
