12
SHENZHEN GETECH TECHNOLOGY CO., LTD

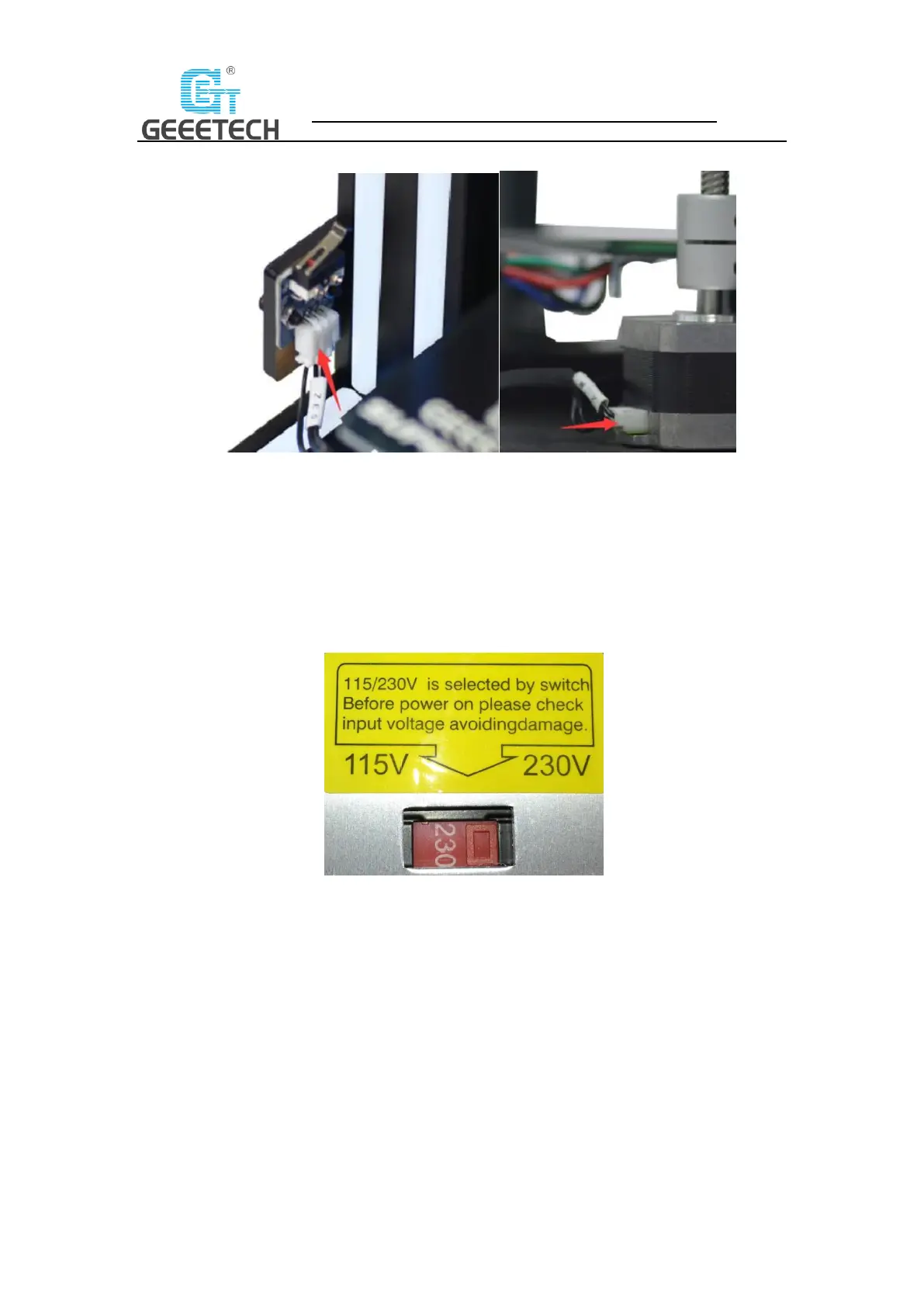

Connect the wires of Z axis’ motor and end stop. See picture (5-11).
(Picture 5-11)
5.3 Check the power input mode
The factory default voltage is 230V. You need to choose the correct voltage according to your
local standard requirement. See picture (5-12)
Note: Be sure the voltage is switched to the correct one.
(Picture 5-12)
5.4 Check the filament
Put the filament on the spool holder. Please pay attention to the feeding direction of the filament.
See picture (5-13).
To Next Page
