5 Assembling
5.1 Assembling the main frame
The main frame consists of the gantry kit and the bottom kit, extruders, filament holder, and
screws. See picture (5-1).

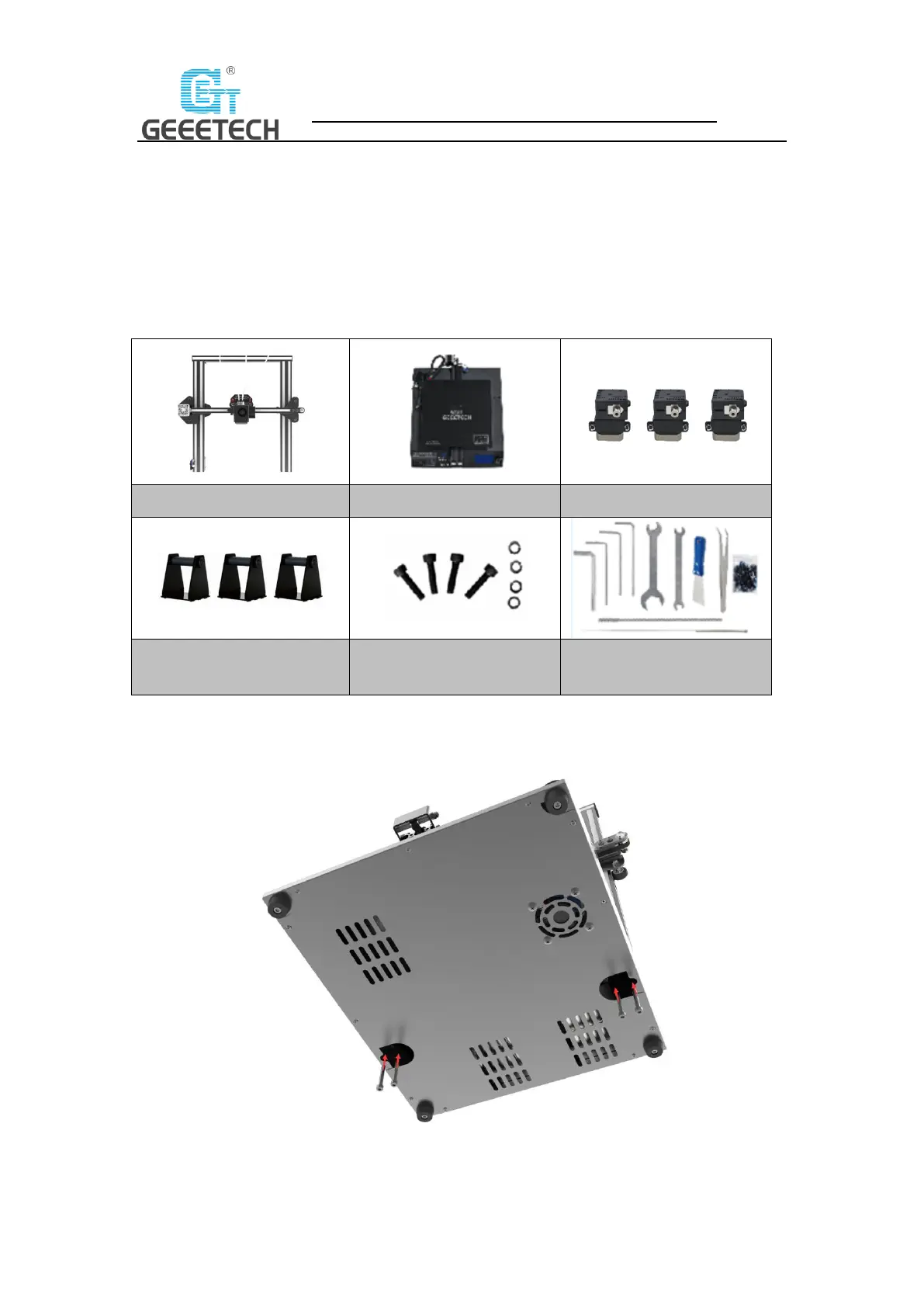

(Picture 5-1)
 Assemble the gantry frame and base from bottom to top with 4 M5x35 screws and 4 M5
spring washers. See picture (5-2).
(Picture 5-2)
 Assemble and fix the three sets of extruder units to the back side of the top gantry as shown
Gantry kit
Bottom kit
Extruder motors (3 sets)
Filament detector kit (3
sets)
Machine installing screws
Tool kit
