13
SHENZHEN GETECH TECHNOLOGY CO., LTD

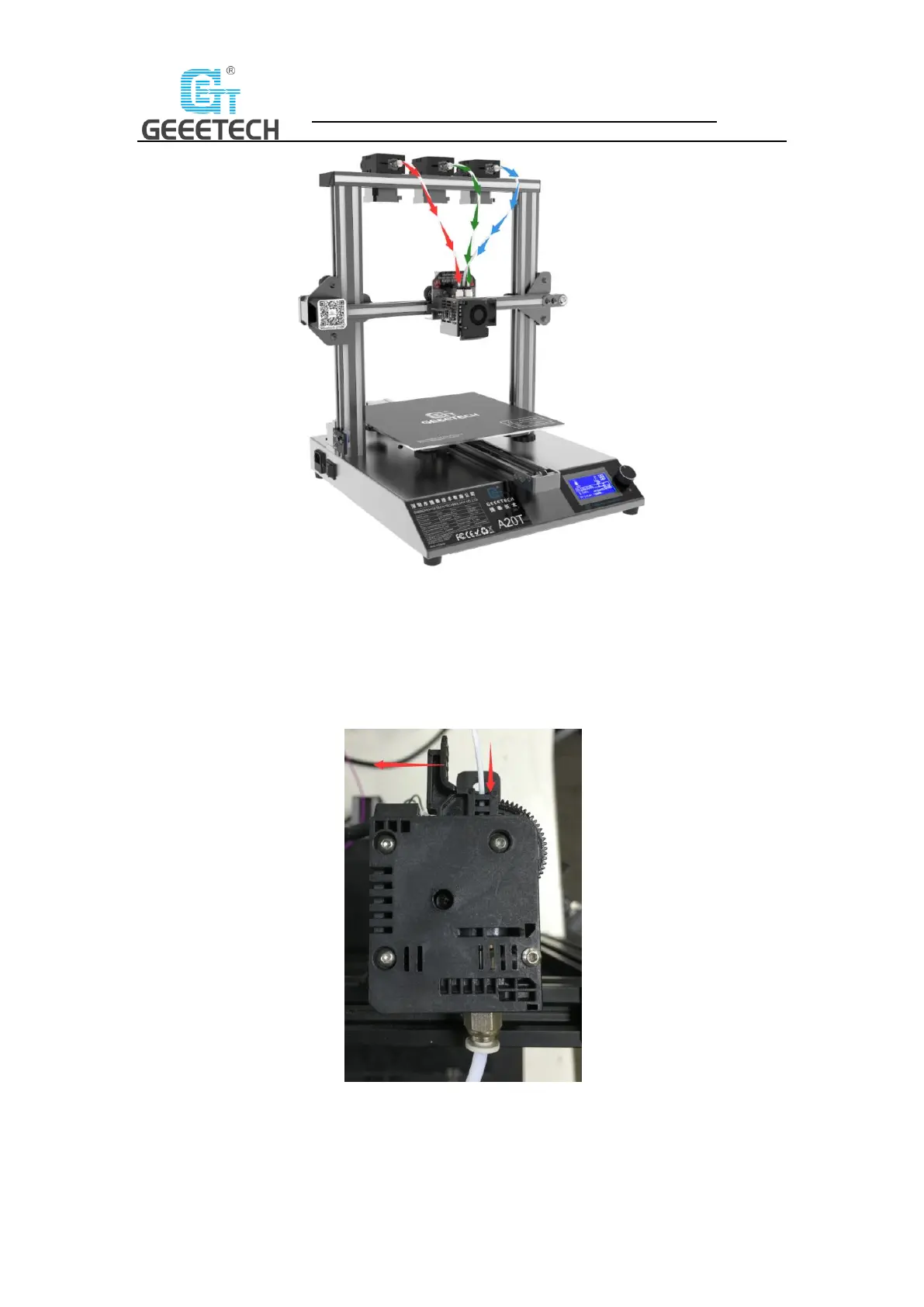

(Picture 5-13)
Since the filament is bent, the first section of it needs to be straightened by hand and trimmed to
make it easier to insert the filament into the feeder. Press down the lever handle of the extruder
and insert the filament into the feeding tube until it reaches the extruder head. See picture
(5-14).
(Picture 5-14)
When print PLA, set the target nozzle temperature about （190~210℃）. When the temp is stable,
control the extruder filament feeding on LCD screen (“Move axis”), feed until there is molten
material flowing from the nozzle.
