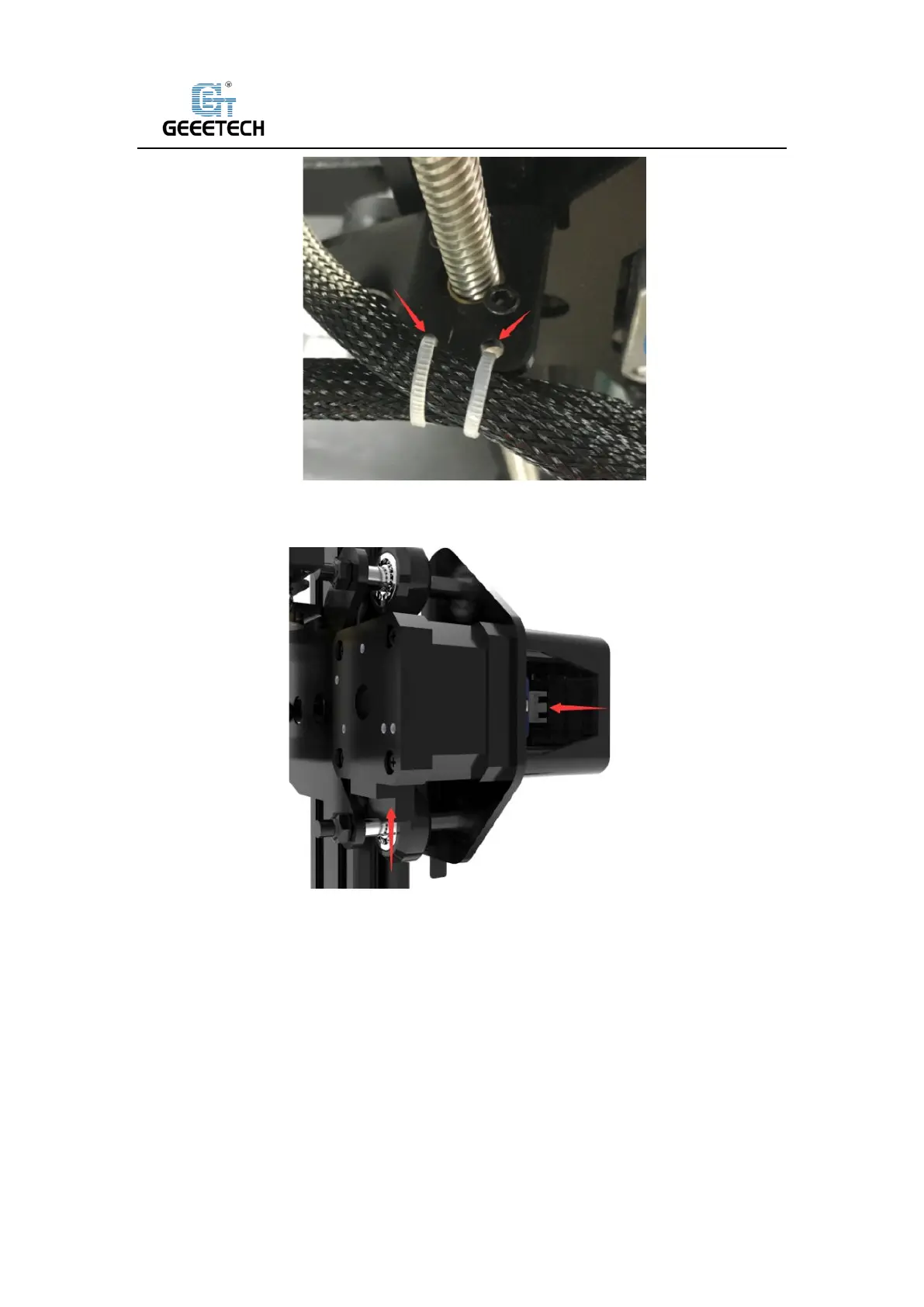

（Picture 5-9）
4) Connect the wires of X axis motor and limit switch. See picture (5-10).
（Picture 5-10）
5) Connect the wires of Y axis limit switch. See picture (5-11).
