Geeetech A30T - Assembling; Main Frame Assembling

Shenzhen Getech Technology Co.,Ltd
8
5 Assembling
5.1Main Frame Assembling

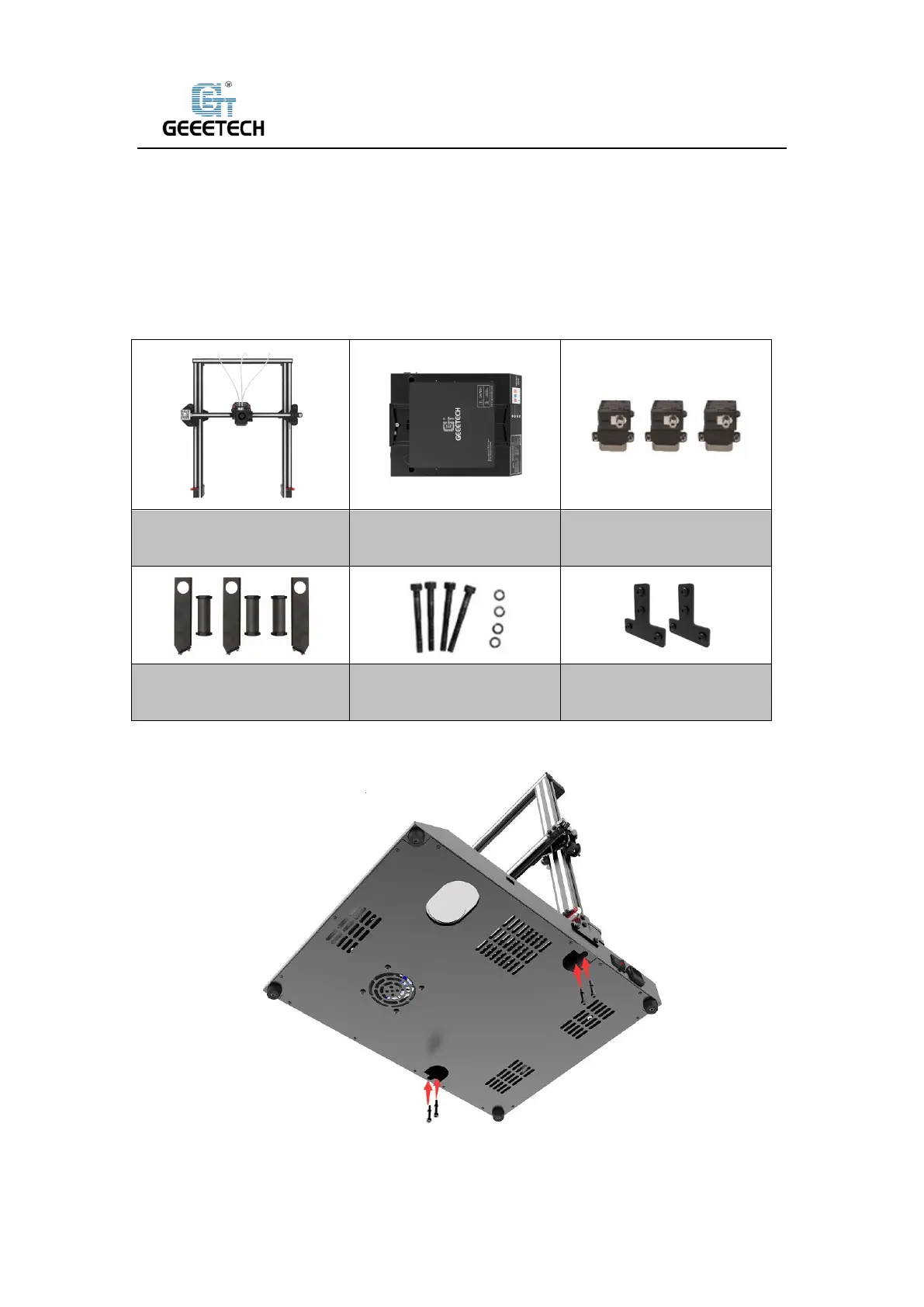

Main frame consists of gantry kit and base, remote extruder assembly, spool holder, T- shaped
plate and screws.
1) Assemble the gantry frame and base from bottom with 4 M5x30 screws and 4 spring
washers M5 as shown in picture (5-1).
（Picture 5-1）
2) Fix the gantry frame and base with T-shaped plates. See picture (5-2, 5-3).
Gantry kit Bottom kit
Remote extruder assembly
(3 sets)
Filament holder kit
(3 sets)
Gantry and base
installing screws
T-shaped plate component
(2 sets)
