Geely CK Series 2007 User Manual

100
(3) Check the Rzeppa Constant velocity universal joint for looseness
(4) Check the boot for damage
Notice: Check that the propeller shaft assembly is placed horizontal.

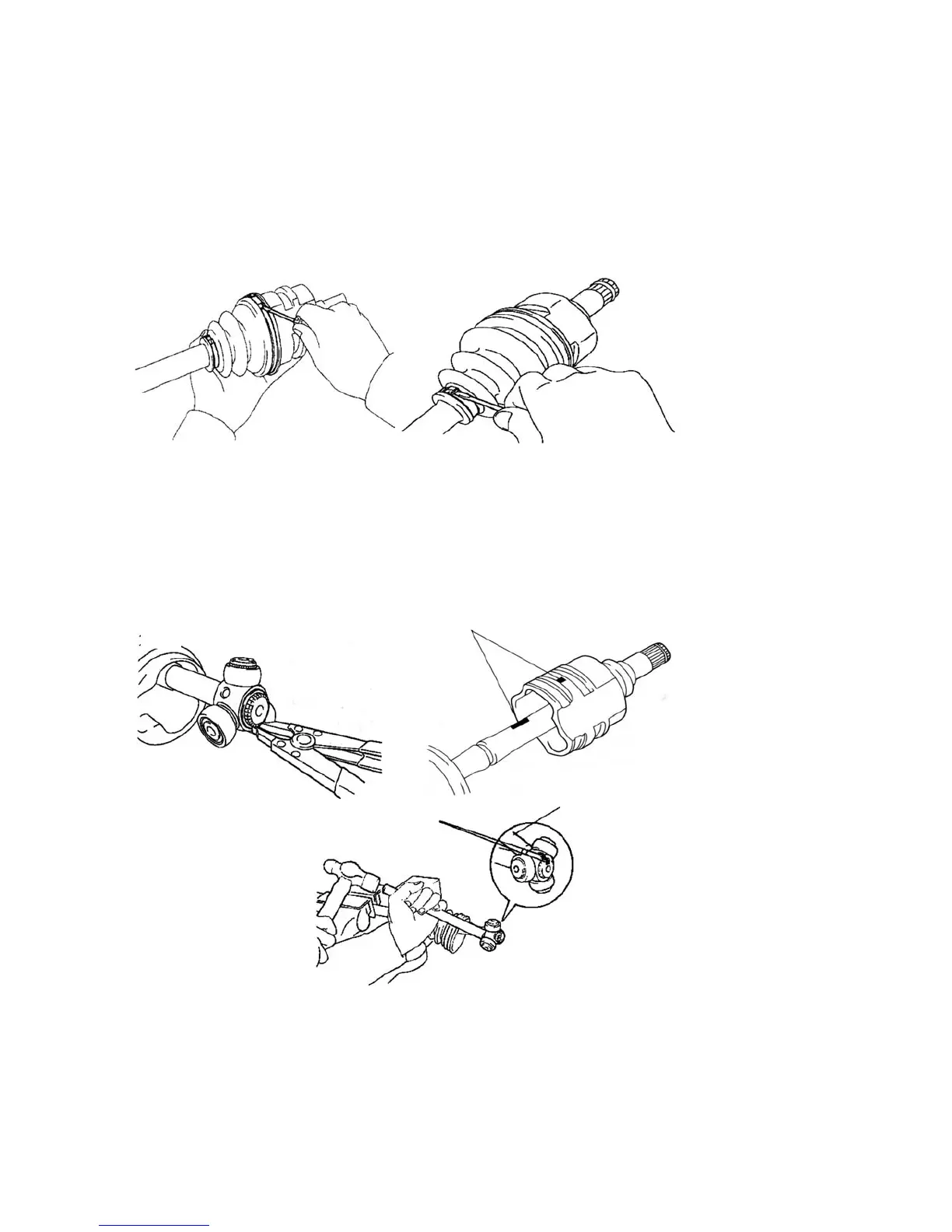

8. Disassemble the tripod constant velocity universal joint boot Use screwdriver to loose the tripod constant
velocity universal joint boot band, remove the boot
Notice: Replace the band if it is distorted
9. Disassembly the tripod constant velocity universal joint
(1) Remove the old grease
(2) Use the mark pen to place a matchmark on the inboard and outboard joint
Notice: Do not punch the marks
(3) Remove the outboard knuckle
(4) Use snap ring pliers to remove the snap ring
(5) Use mark pen to place matchmarks on the tripod ball joint and outboard joint
(6) Use brass bar and hammer to remove the tripod ball joint
Notice: Do not tap the roller
Mark
Brass Bar
Mark
