242
Chapter 7
SRS (Supplemental Restraint System)
Section 1 SRS-General Information
I. PRECAUTION
For safe reasons, read the following precautions before starting any operation.
1. When servicing the SRS, correct sequence and items are described in the following chapter.
2. Instruments and special tools recommended in this chapter shall be used for operation.
3. When servicing the following components, replace them with the new ones if there is a failure.
(1) SRS ECU
(2) Clock Spring Module
(3) Driver Airbag Module
(4) Passenger Airbag Assembly (Option)
4. If there is any abnormality in the wire harness of the SRS, replace it with a new one. Correct or replace the
abnormal wire harness in accordance with Table 1.

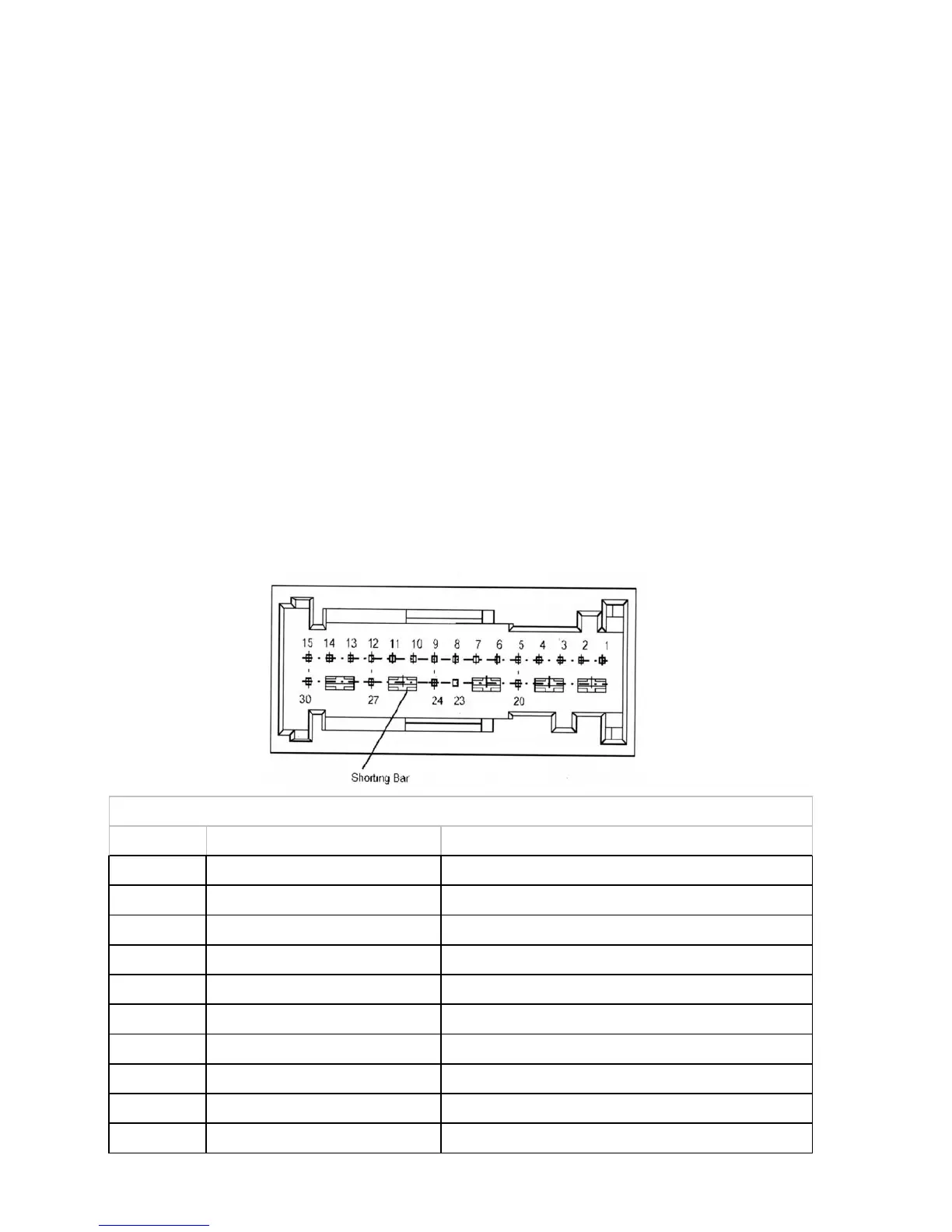

Figure 1
(Table 1)
No Designation Description
1 Belt-pretensioner, Driver, Low Seat belt pretensioner, driver side, low position
2 Belt-pretensioner, Driver, High Seat belt pretensioner, driver side, high position
3 Belt-pretensioner, Passenger, High Seat belt pretensioner, passenger side, high position
4 Belt-pretensioner, Passenger, Low Seat belt pretensioner, passenger side, low position
5 IGN Battery voltage
6 GND Ground-ground wire
7 WL Airbag warning light
9 K Diagnostic serial data I/O (K line)
10 DAB Hi Driver airbag, high position
ECU Terminal Description
