Geely CK Series 2007 User Manual

331
(VI) Seat Removal, Installation and Adjustment
Front Seat

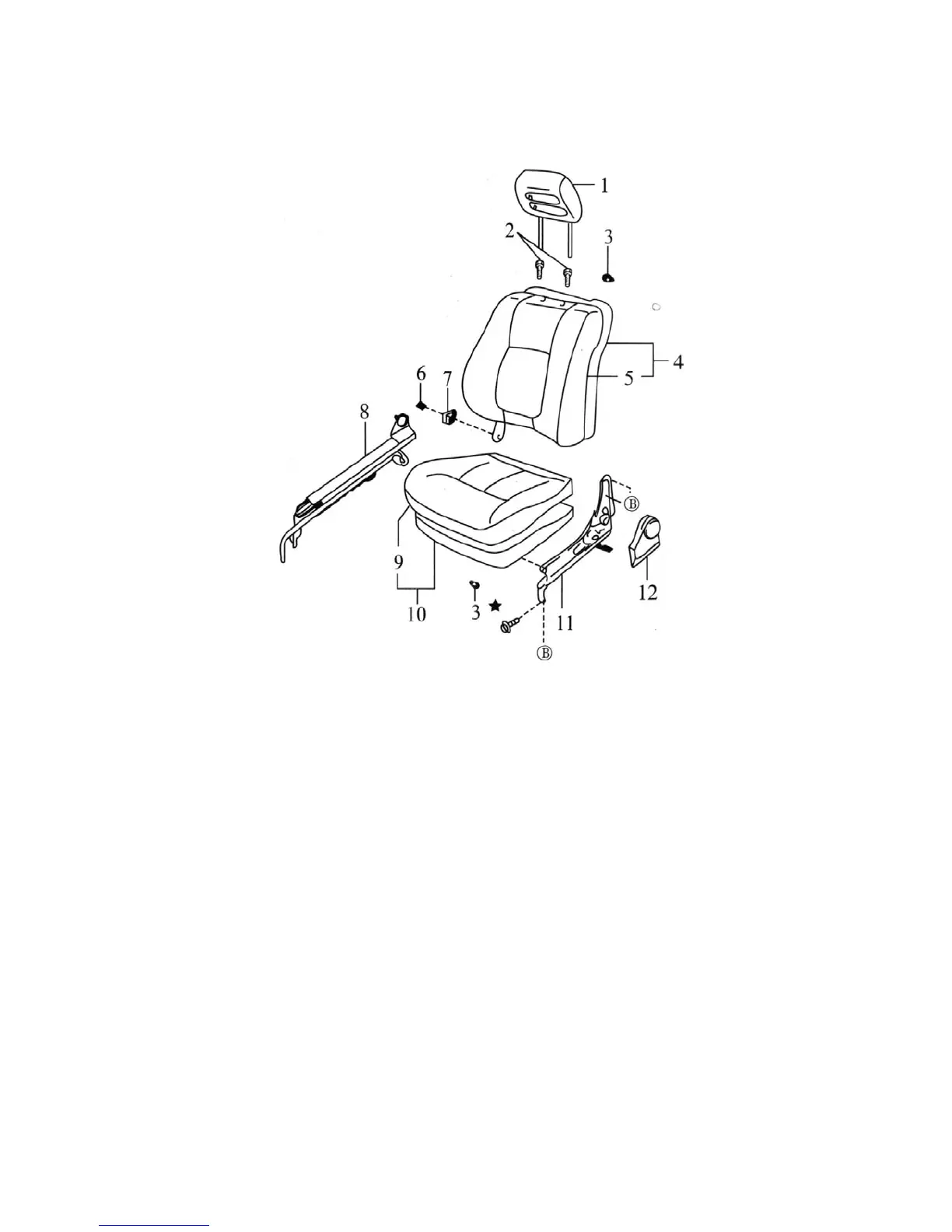

See Figure
Disassembly of Front Seat
1.Headrest Assembly 2. Headrest Support 3.Snap Ring 4.Front Seat Backassembly
5.Front Seat Back Cover 6.Cap Nut 7.Front Seat Coupling Plastic Gasket
8.Track Assembly 9.Front Seat Cushion Cover 10.Front Seat Cushion Assembly
11.Adjuster Assembly 12.Adjuster Hinge Cover
1. Removal
1 Remove 4 bolts and the seat from the vehicle;
2 Turn the headrest lock handle to"Non-LOCK". Remove headrest and bracket;
3 Remove the attaching screw, Remove adjuster hinge cover from the front seat;
4 Remove the 4 snap ring under the rear side of the seat back. Remove the set bolt and nut at the both side
of the seat back;
5 Remove seat coupling plastic gasket;
6 Remove the seat cushion, track assembly and adjuster assembly;
7 Press the headrest support and push it upwards by hand in the direction as the Figure shows and remove
the headrest support;
8 Open the seat backcover. Remove the inner coversnap ring. Remove the seat backcover;
