196
Section 2 Replacement and Adjustment
I WIPER MOTOR ASSEMBLY REPLACEMENT
1. REMOVE WIPER MOTOR
(a) Disconnect the connector.

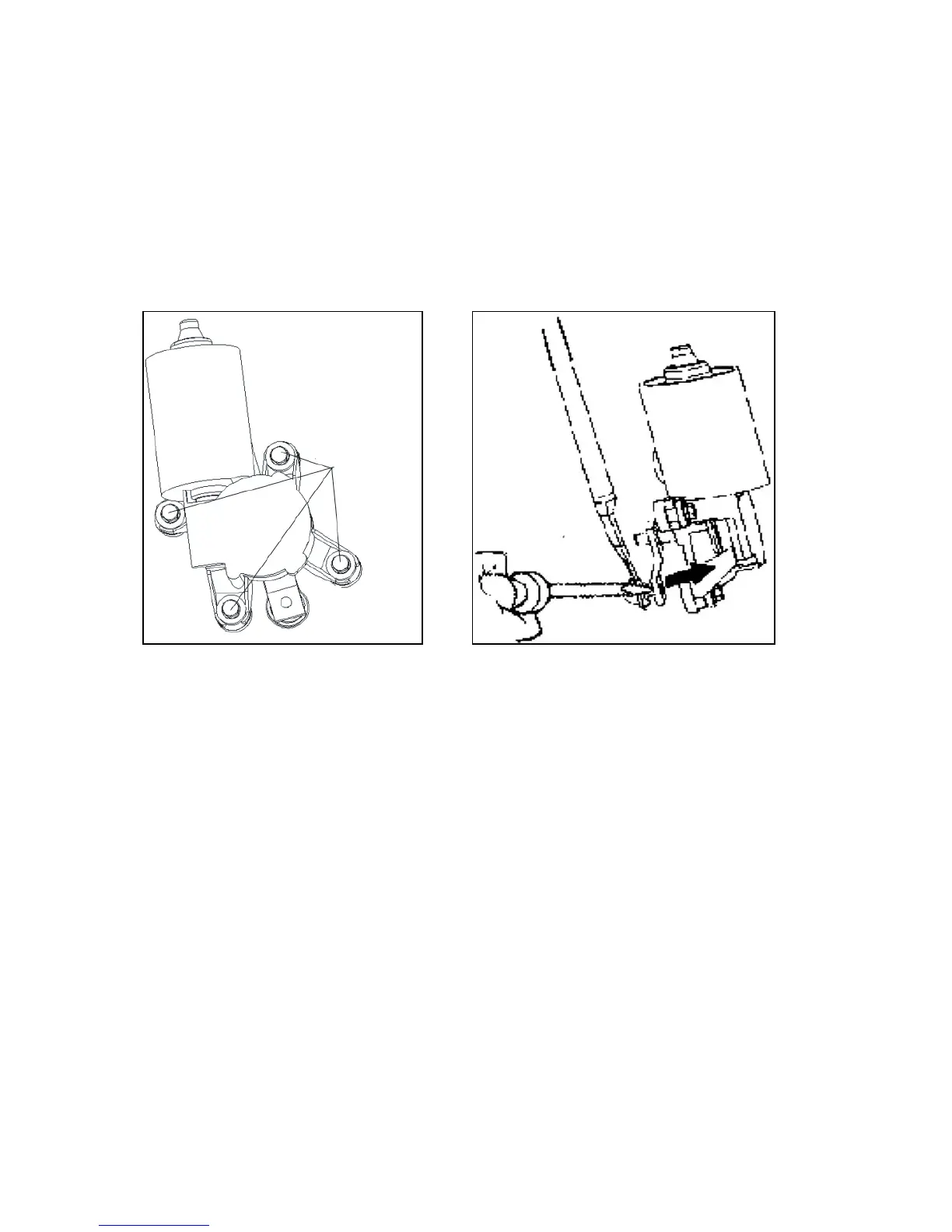

(b) Remove the 4 mounting bolts.
(c) Separate the shaft of the motor crankshaft arm and the wiper link with special tools.
2. INSTALL A NEW WIPER MOTOR
(a) Press the shaft of the motor crankshaft arm and the wiper link in its position with special tools.
(b) Lock the 4 bolts in the specified torque.
(c) Connect the connector.
(d) Operate the wiper, make the washer fluid spraying on the windshield, check if the operation of wiper and
its starting position is normal. If not, remove the wiper arm blades assembly and make some proper
adjustment.
Hint: Make the top of the new shaft of the wiper motor crankshaft arm filled with lubricating oil.
II. WIPER BLADES REPLACEMENT
1. REMOVE BLADES FROM WIPER BLADES ASSEMBLY 1, 2
 Remove blades from wiper blades assembly 1, 2 respectively.
2. INSTALL NEW BLADES
 Install new blades on wiper blades assembly 1, 2 respectively.
4 Mounting Bolts
To Next Page
