Section 6 Rear Brake

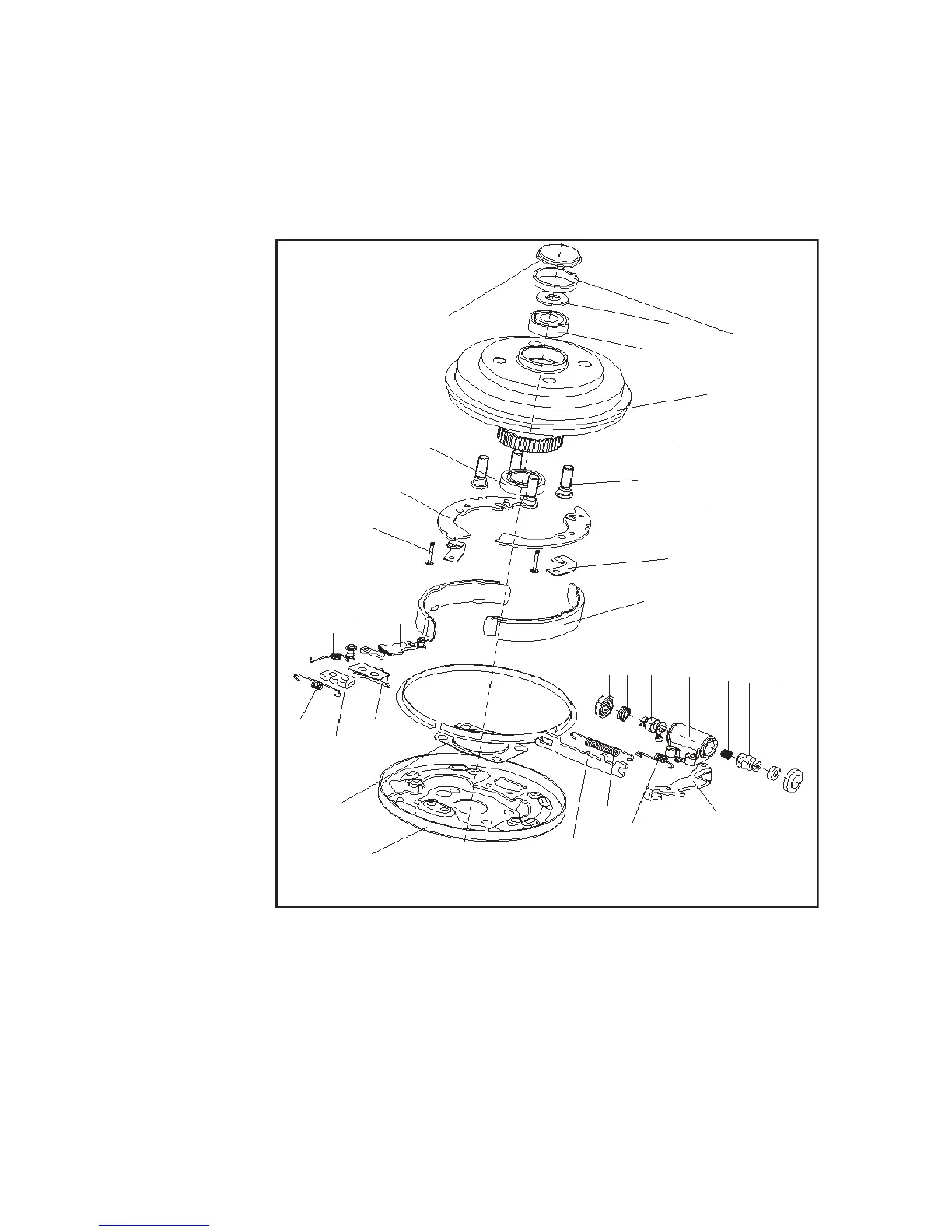

Components
Repairing
1. Remove rear wheel
2. Drain the brake fluid
3. Remove the brake drum
(1) loose the parking brake handle
(2) Remove the cotter pin with a long nose pliers
(3) loose the spindle slot nut
Lower Return Spring
Oil Baffle Plate
Anchor Plate
Brake Bottom Plates Left Cable Plate
Left Torsion Spring
Adjusting Pawl Shaft
Pin
Left Adjusting Pawl
Left Adjusting Plate
Brake Shoe I
Wheel Hub Bearing II
Rear Spindle Cap
Wheel Hub Bearing I
Stop Washer
Wheel Hub Bolt
Rear Ring Gear
Rear Brake Drum
Rear Spindle Cover
Brake Shoe I
Shoe Guide
Friction Shoe
Boot
Cup
Piston
Wheel Cylinder
Spring
Piston
Boot
Cup
Parking Brake Left Swing Arm
Rear Brake
Auto
Adjusting Lever
Adjusting Lever Spring
Return Spring
