Section 8 No. 2 Transverse Arm Assembly

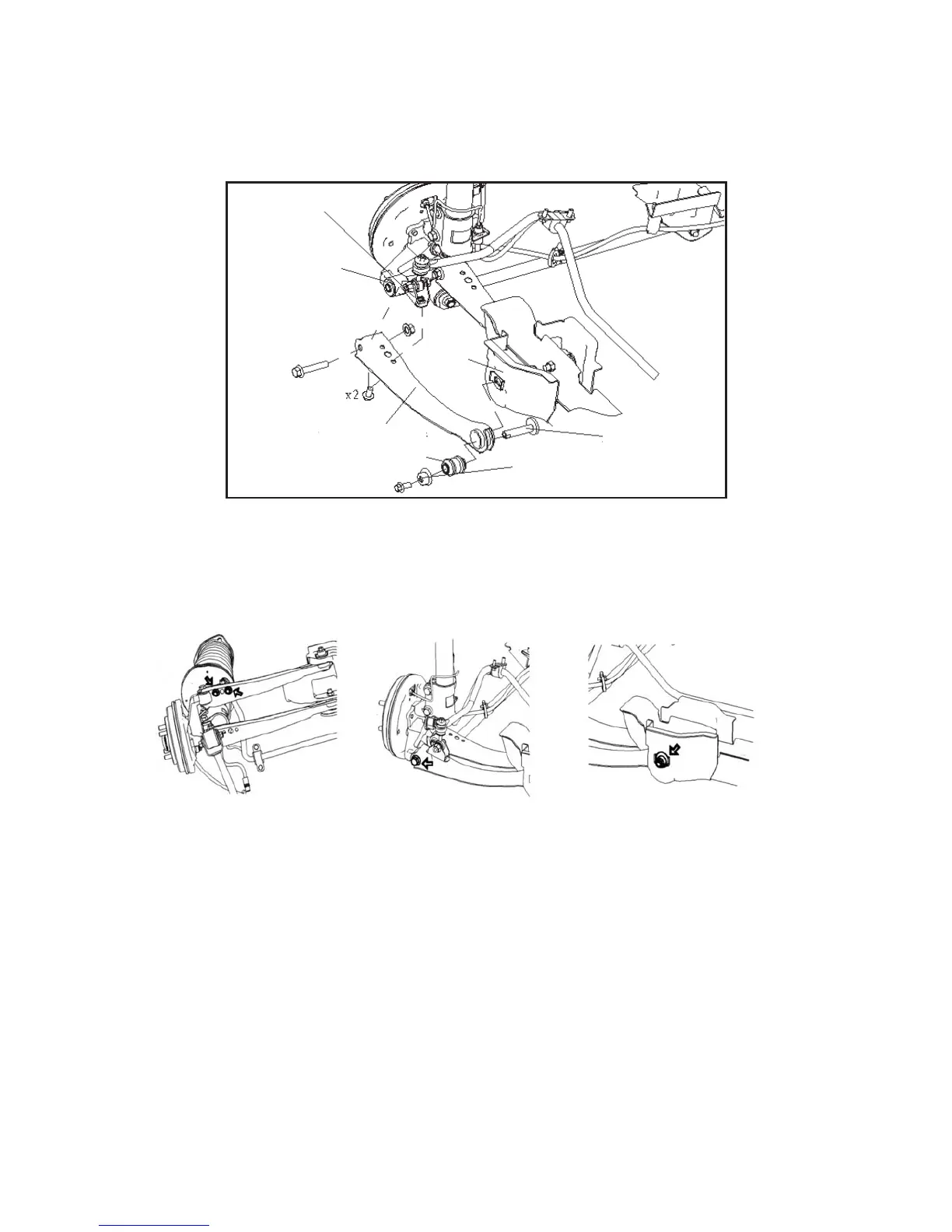

Components
Replacement
1. Remove the strut rod mount component
Remove the strut rod mount component bolt on the No. 2 transverse arm assembly
2. Remove transverse arm assembly No. 2
(1) Remove the bolt connecting the No. 2 transverse arm assembly and rear brake assembly
(2) Remove the bolt connecting the No. 2 transverse arm assembly and vehicle body, rear wheel toe-in
adjust plate and rear wheel toe-adjust cam
3. Install No. 2 transverse arm assembly
(1) Use the nut, rear wheel toe-in adjust cam, rear wheel toe-in adjust plate to attach the No. 2 transverse
arm assembly to the body
(2) Install the No. 2 transverse arm assembly to the rear brake wheel hub. Torque : 81~96N.m
(3) Use the bolt to attach the strut rod component to the No. 2 transverse arm assembly. Torque :
22~25N.m
4. Check the rear wheel alignment, adjust it by adjusting the rear wheel toe-in adjust cam and adjust plate.
After the adjustment, tighten the bolts to torque 45~55N.m
Rear Stabilizer Bar
Strut Rod Component
Pivot Bracket
Body
Bottom Plate
No. 2 Transverse Arm
Welding Component
No. 2 Transverse Arm Bushing
Rear Wheel Toe-in Adjust Plate
Rear Wheel Toe-in
Adjust Cam
