(XIII) Carpet and Heat Insulator

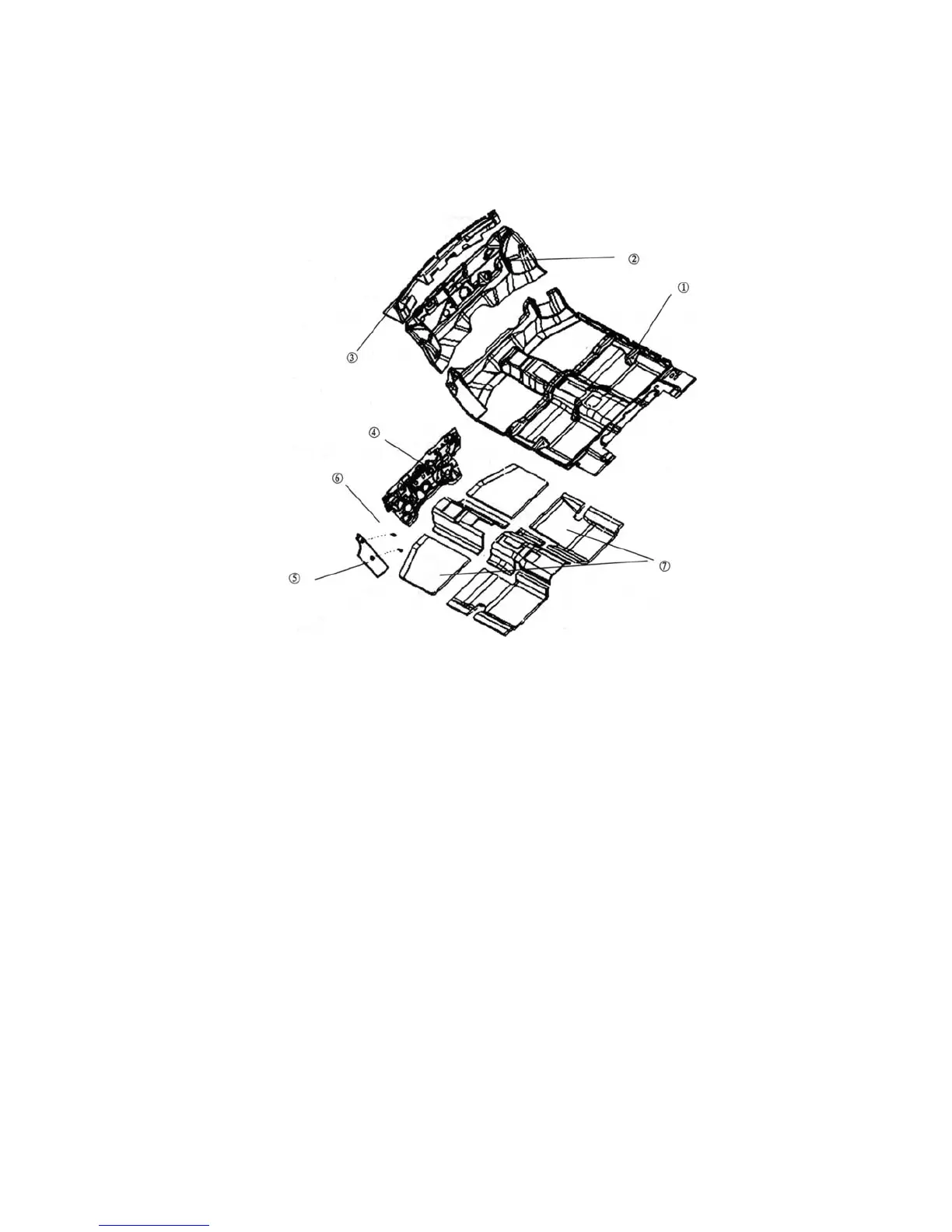

Carpet and Heat Insulator Diagram
Carpet and Heat Insulator Diagram
1. Carpet 2. Cowl Lower Sound Insulator 3. Cowl Upper Sound Insulator 4. Cowl Outer
Panel Heat Insulator 5. Foot Pedal 6. Cross Pan Head Screw 7. Floor Sound Insulator
1. Removal
1 Remove the front and rear seats, left front door sill, right front door sill, right B pillar lower inside trim, left
B pillar lower inside trim, right rear door sill, left rear door sill, front and rear part of the auxiliary console;
2 Remove the cross pan head screw and remove the foot pedal.
3 Remove carpet and cowl lower sound insulator, cowl upper sound insulator, cowl outer panel heat insulator.
2. Installation
1 Install the accelerator pedal assembly, brake and clutch pedal assembly, parking brake control mechanism
assembly onto the vehicle body;
2 Install the carpet to the corresponding hole. Install both sides of the carpet under the left front door sill,
right front door sill, right B pillar lower inside trim, left B pillar lower inside trim, right rear door sill, left
rear door sill.
