5. Servicing operation shall be carried out 60s after the negative
(-) terminal cable is disconnected from the battery. In addition,
the disconnected negative (-) terminal cable shall be protected
with insulating tape for insulation.
In order to deploy an airbag within a certain time period after the
battery is disconnected, condenser in the ECU shall retain some
electrical energy. Otherwise, it could lead to a serious accident
because of the unexpected deployment of airbag.
6. During spray paint work, ECU, airbag assembly, clock spring
assembly, etc shall be removed and kept in place to avoid the effects of overheat. (Over 93¡æ)
7. When the SRS is serviced, a diagnostic scan meter is used to clear the DTC to enable the normal work of
the warning light.
11 DAB Lo Driver airbag, low position
13 (Option) PAB Hi Passenger airbag, high position
14 (Option) PAB Lo Passenger airbag, low position
20
Passenger Airbag Deactivation
Indicator
Passenger airbag deactivation indicator light
27
PPD/ Passenger Airbag
Deactivation Switch, High
Passenger airbag deactivation switch, high position
30 Crash Output Crash output

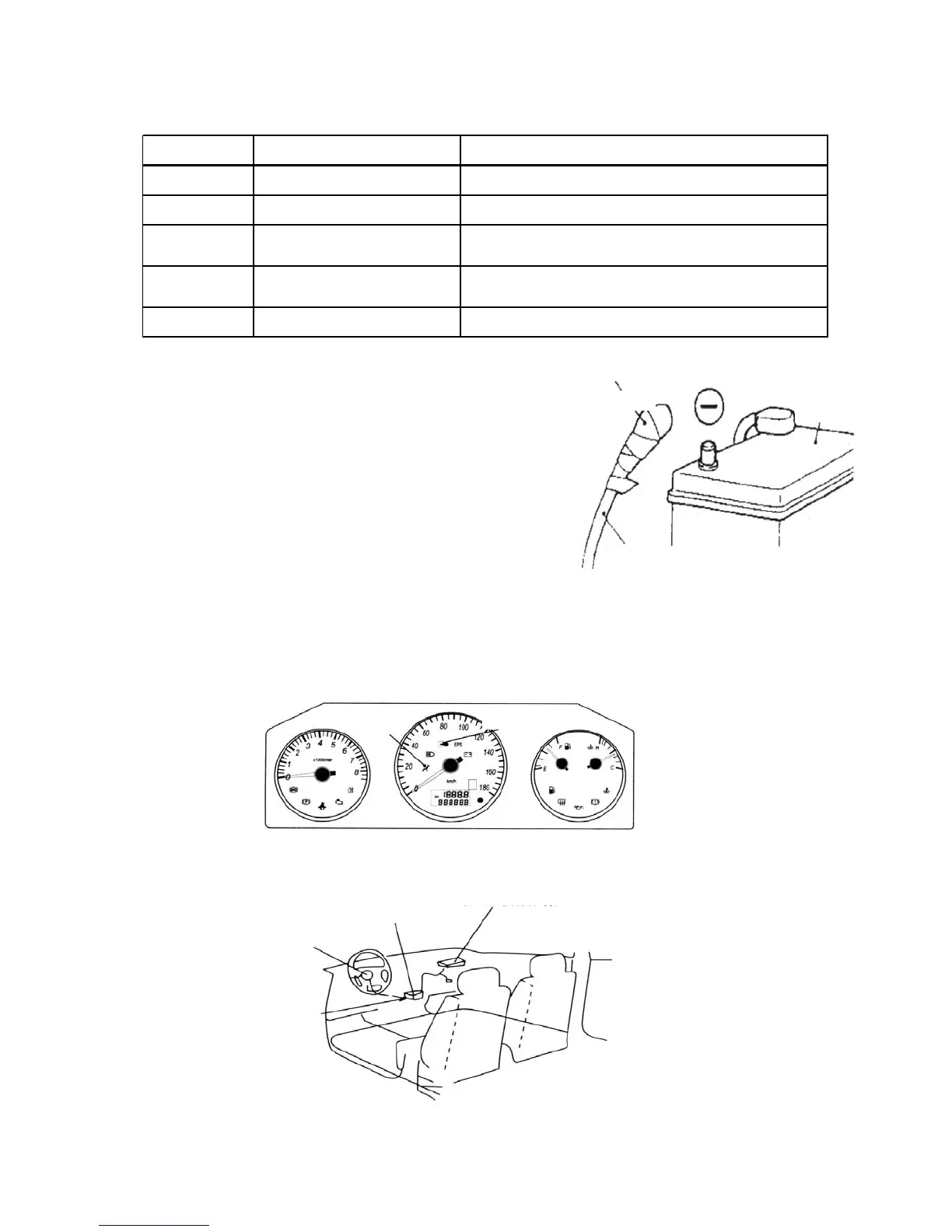

Insulating Tape
Battery
Cable
Driver Side
Warning Lamp
Passenger Side
Warning Lamp
Driver Seat Inflation
Element & Airbag
Crash Sensor &
Diagnostic Module
Front/RH Inflation
Element & Airbag
