Geely CK Series 2007 User Manual

7
6. Adjust intake valve clearance
(a) Detach intake camshaft
Notice:
Because the camshaft end play is quite small, keep camshaft horizontal when removing it. If not, cylinder
head may be partially damaged by the thrust force£¬it may stuck or damage camshaft when turning crankshaft.
Take the following steps to avoid the damage:

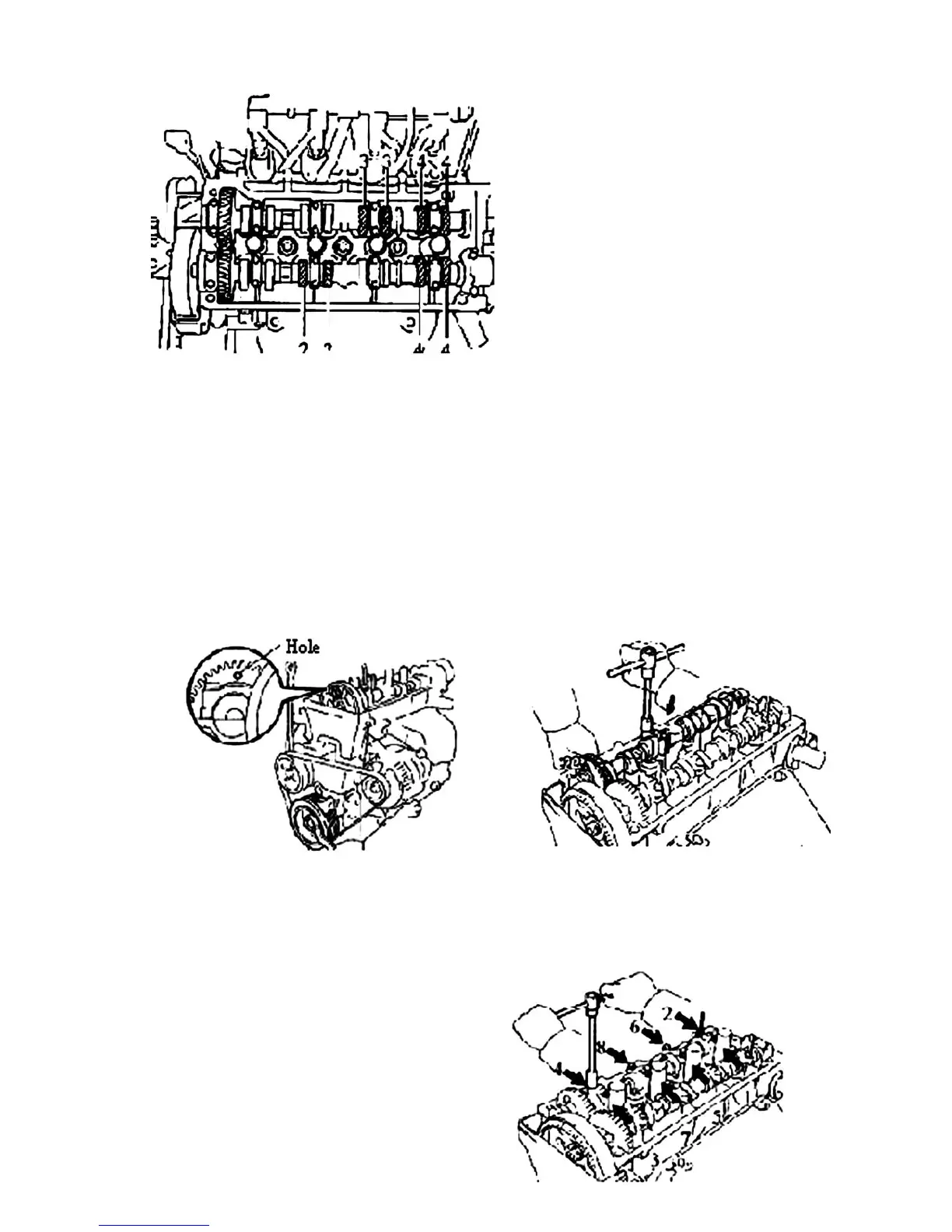

(1) Turn the pulley to access the hole on the camshaft drive gear where the counter gear is installed. See
(Figure 12).
Hint:
The above condition allows the cylinders No. 1 and No. 3 of the intake camshaft to push up the valve tappet.
(2) Remove bolt and bearing cap No. 1.
(3) Install camshaft counter gear to drive gear with service bolt. See (Figure 13).
(4) Uniformly loose and remove 8 bearing cap bolts in several passes as
shown in the figure. See (Figure 14).
(5) Remove 4 bearing caps and camshafts.
Figure 11
Figure 14
Figure 12
Figure 13
