(a) Inspect light control switch continuity
Inspect each terminal for continuity when the switch is on every position according to the table.
If it is not as specified, replace the switch.
(b) Inspect headlamp dimmer switch continuity
Inspect each terminal for continuity when the switch is on every position according to the table.
If it is not as specified, replace the switch.
(c) Inspect turn signal switch continuity
Inspect each terminal for continuity when the switch is on every position according to the table.
If it is not as specified, replace the switch.
Switch position Tested terminal Condition
OFF 5BB2-5BB3 No continuity
TAIL 5BB2-5BB3 Continuity
Switch position Tested terminal Condition
LO 5BB1-9NB5 Continuity
HI 9NB2-9NB3 Continuity
PASSING 9NA1-9NB3 Continuity
5B
5BB1
5BB2
5BB3
5BA1
5BA3
9N
9NB1
9NB2
9NB3
9NB4
9NB5
9NA1
9NA2
9NA3
9NA4

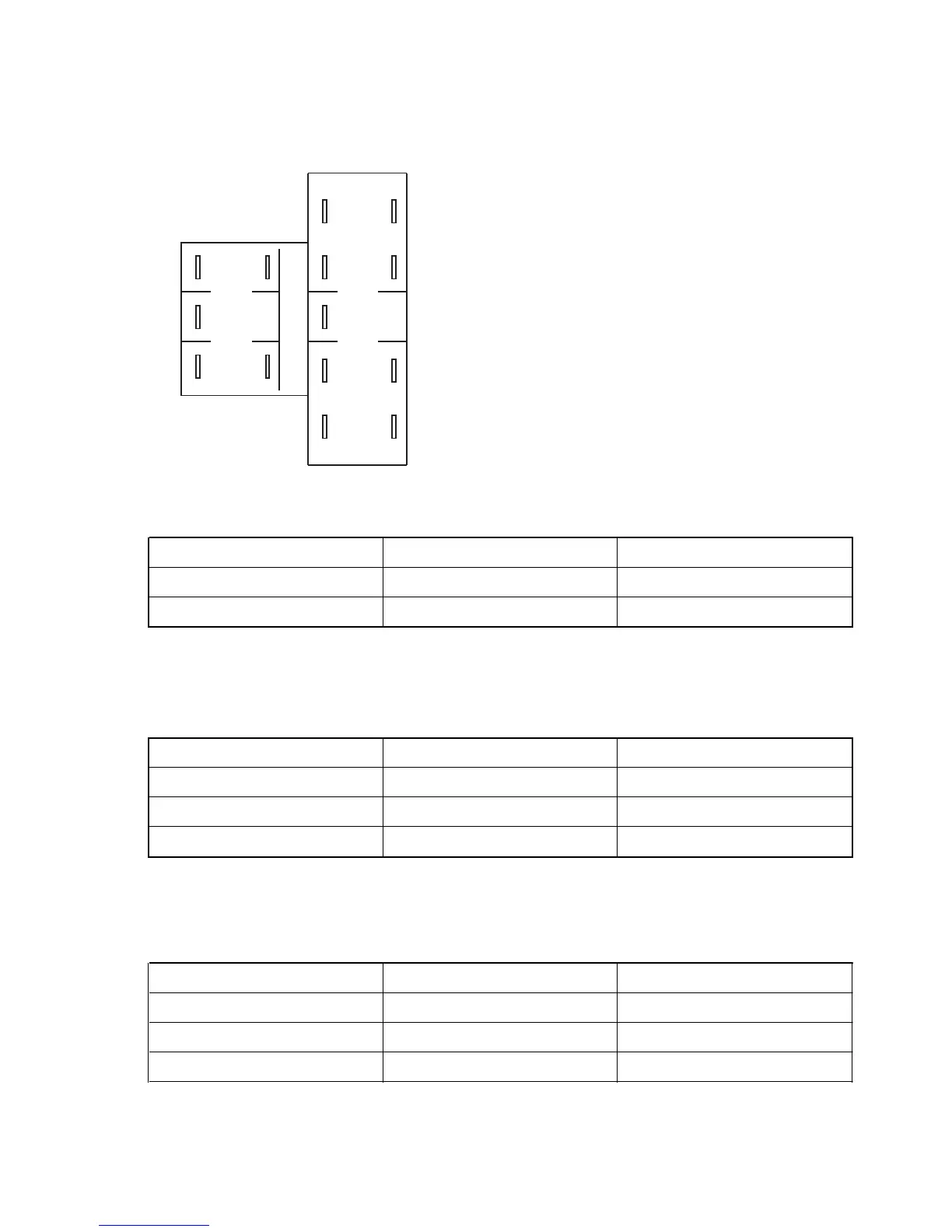

Headlamp combinated terminal position diagram
Switch position Tested terminal Condition
Left turn 9NA4-9NA5 Continuity
Straight run 9NA4-9NA5-9NA2 No continuity
Right turn 9NA5-9NA2 Continuity
