50. Install water outlet hose joint. See (Figure 29, 30)

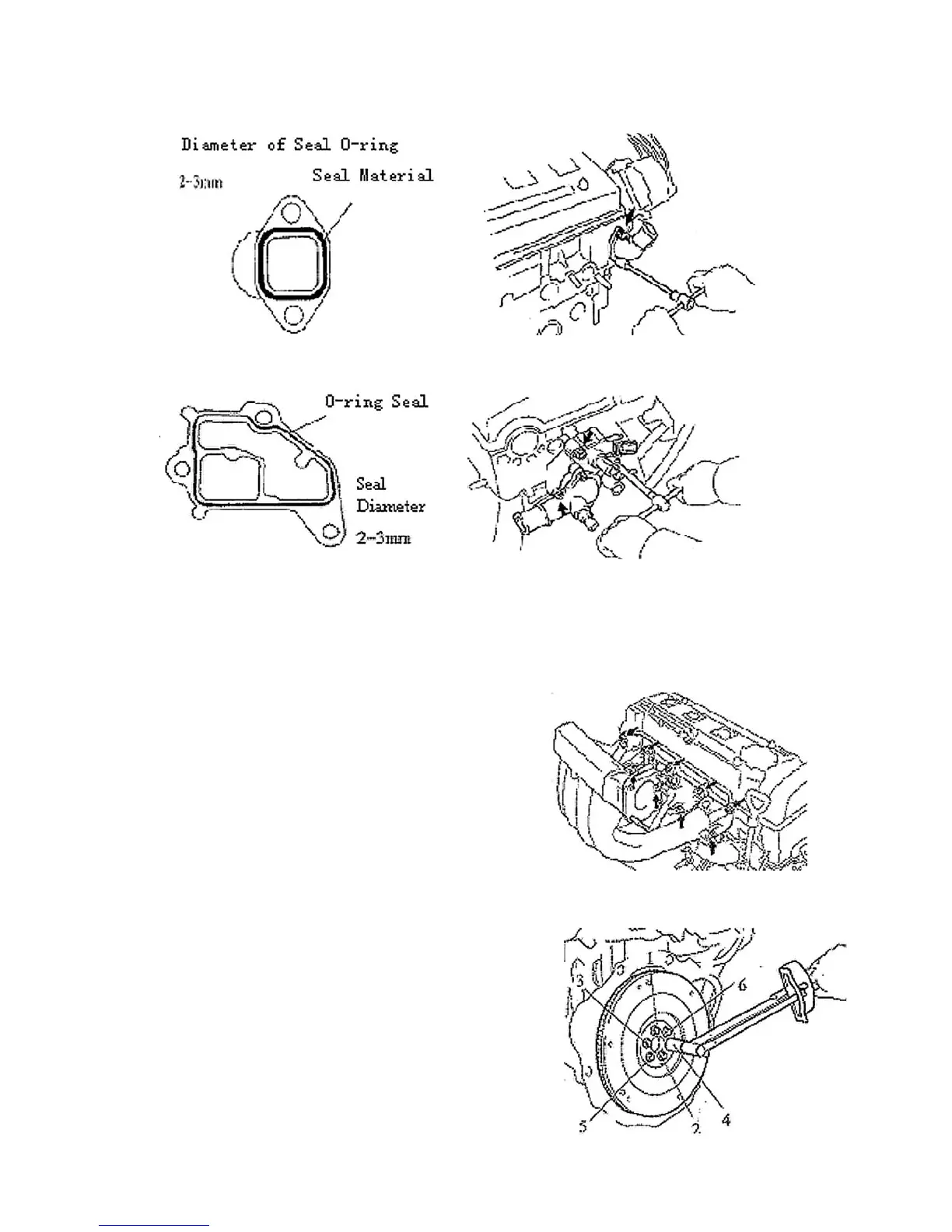

Figure 29
51. Install water inlet hose housing. See (Figure 31, 32)
Figure 31 Figure 32
52. Install engine oil pressure switch
53. Install crankshaft position sensor
Torque: 9, 3N. m
54. Install water temperature gauge and water temperature sensor
Torque: 15N. m
55. Install knock sensor
Torque: 44N. M
56. Install intake manifold. See (Figure 33)
Install the intake manifold with new gasket with 7 bolts and 2
nuts. Uniformly tighten bolts and nuts in several time.
57. Install injector assembly
58. Install rear end cover
59. Install flywheel sub-assembly. See (Figure 34)
(a) Install flywheel to crankshaft.
(b)Install and uniformly tighten and connect bolt as shown in the
figure. Torque: 78N. m
60. Install clutch assembly
61. Install flywheel and ring gear. See (Figure 35)
(a)Install the oil thrower, it’s chamfer side on crankshaft in
the axie direction.
(b) Install flywheel and ring gear on crankshaft.
Figure 33
Figure 34
Figure 30
